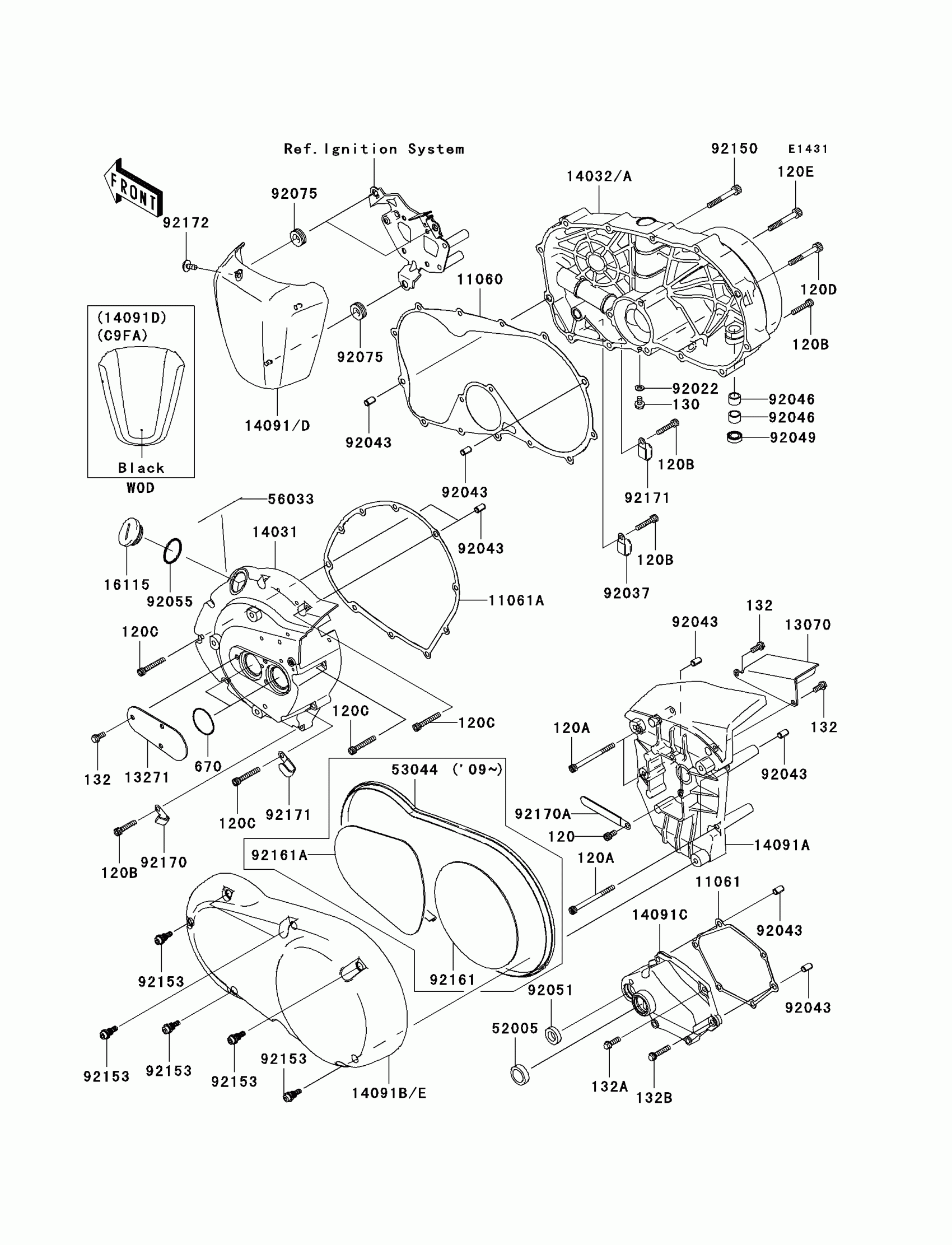

Kawasaki Vulcan 900 Custom (European) Engine Cover(s) Diagram

#

Description
Price

11060

GASKET,CLUTCH COVER

11060-1926

$36.36

11061

GASKET,MECHANISM COVER

11061-0208

$5.87

11061A

GASKET,GENERATOR COVER

11061-0209

$25.55

13070

GUIDE,BELT

13070-0055

$40.04

13271

PLATE

13271-0700

$7.61

14031

COVER-GENERATOR

14031-0056

$258.18

14032A

COVER-CLUTCH

14032-0135

$490.77

14091A

COVER,PULLEY

14091-0510

$128.84

14091C

COVER,CHANGE MECHANIZM

14091-0633

$142.46

14091D

COVER,IGNITION COIL,BLACK

14091-0882-10

Unavailable

14091E

COVER,OUTER,LH

14091-1737

$166.99

16115

CAP-OIL FILLER

16115-1063

$26.61

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

53044

TRIM

53044-0034

Unavailable

56033

LABEL-MANUAL,OIL CAPACITY

56033-0148

$7.31

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92037

CLAMP,L=45

92037-1539

$4.42

92043

PIN,6.2X8X14

92043-1263

$0.46

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,TB12205.5

92049-1271

$7.08

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O,31.5X2.6

92055-049

$3.29

92075

DAMPER

92075-1629

$3.81

92150

BOLT,SOCKET,6X50

92150-1436

$5.37

92153

BOLT,SOCKET,6X22

92153-1331

$7.84

92161

DAMPER

92161-0447

Unavailable

92161A

DAMPER

92161-0461

Unavailable

92170

CLAMP,HARNESS

92170-1900

$5.46

92170A

CLAMP

92170-1925

$1.98

92171

CLAMP

92171-0739

$4.95

92172

SCREW,5X12

92172-0101

$4.46

120

BOLT-SOCKET,6X12

120CA0612

$1.27

120A

BOLT-SOCKET,6X75

120CA0675

$2.28

120B

BOLT-SOCKET,6X30

120R0630

$3.35

120C

BOLT-SOCKET,6X40

120R0640

$4.42

120D

BOLT-SOCKET,6X50

120R0650

$4.68

120E

BOLT-SOCKET,6X65

120R0665

$8.54

130

BOLT-FLANGED,6X10

130R0610

$1.53

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

132B

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

670

O RING,34MM

670B3034

$1.43
