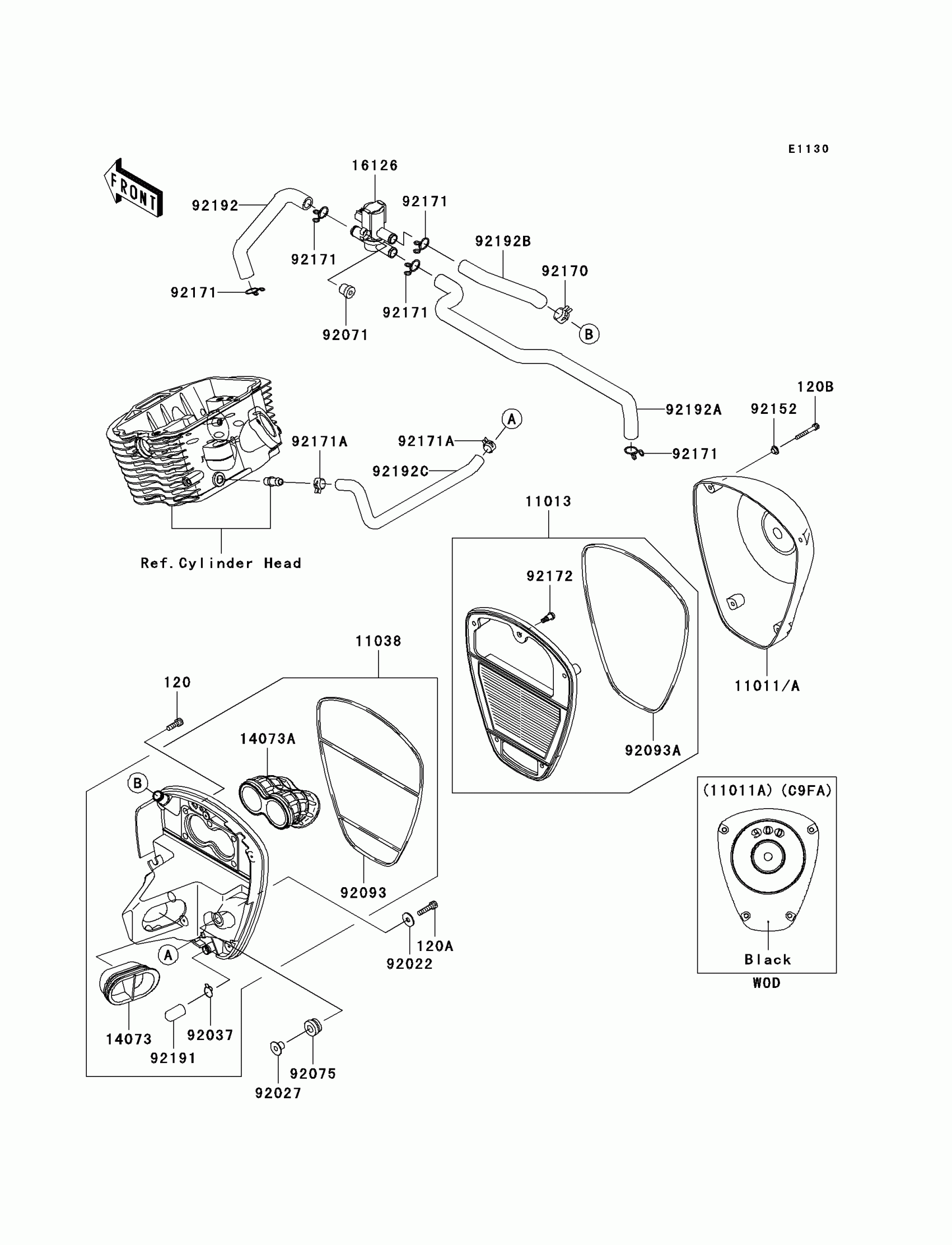

Kawasaki Vulcan 900 Custom (European) Air Cleaner Diagram

Description

Price

120

BOLT-SOCKET,6X18

120CA0618

$2.14

120A

BOLT-SOCKET,6X25

120CA0625

Unavailable

120B

BOLT-SOCKET,5X35

120R0535

$1.26

11011A

CASE-AIR FILTER

11011-0142

$122.91

11013

ELEMENT-AIR FILTER

11013-0015

$41.33

11038

CASE-ASSY-AIR FILTER

11038-0015

$122.88

14073

DUCT,INTAKE

14073-0103

$16.66

14073A

DUCT,THROTTLE BODY

14073-0104

$29.73

16126

VALVE,AIR SWITCHING

16126-1437

$169.86

92022

WASHER,6.5X20X1.6

92022-1557

$1.08

92027

COLLAR,L=12

92027-1062

$7.25

92037

CLAMP,14.5MM

92037-1900

$3.71

92071

GROMMET

92071-0026

$3.49

92075

DAMPER,RUBBER

92075-1123

$3.81

92093

SEAL

92093-0054

$5.51

92093A

SEAL

92093-0057

$12.83

92152

COLLAR

92152-0451

$2.98

92170

CLAMP

92170-1989

$3.49

92171

CLAMP

92171-0790

$3.76

92171A

CLAMP

92171-1441

$4.07

92172

SCREW,5X16.5

92172-0091

$1.75

92191

TUBE

92191-1704

$7.44

92192

TUBE,ASV-FR HEAD

92192-0266

$7.77

92192A

TUBE,ASV-RR HEAD

92192-0267

$18.69

92192B

TUBE,A/C-ASV

92192-0268

$8.10

92192C

TUBE,BLOWBY

92192-0269

$11.32
