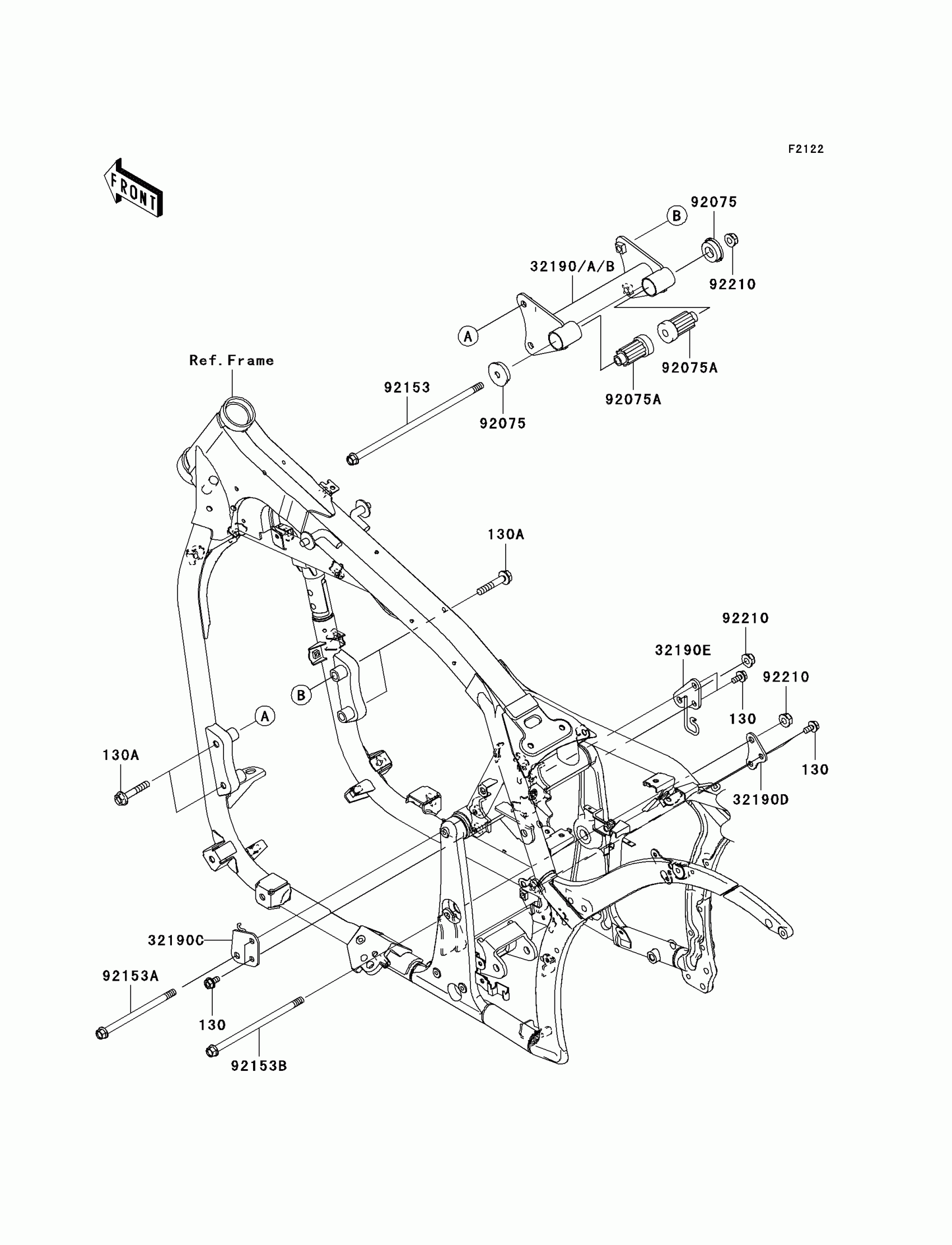

Kawasaki Vulcan® 900 Custom Engine Mount Diagram

Description

Price

130

BOLT-FLANGED,8X16

130BB0816

$1.71

130A

BOLT-FLANGED,10X55

130BB1055

$6.66

32190A

BRACKET-ENGINE,FR,F.S.BLACK

32190-0229-18R

$103.74

32190C

BRACKET-ENGINE,RR,LH,UPP

32190-0274

$15.20

32190D

BRACKET-ENGINE,RR,RH,LWR

32190-0275

$5.65

32190E

BRACKET-ENGINE,RR,RH,UPP

32190-0276

$18.57

92075

DAMPER,ENGINE MOUNT

92075-1738

$23.47

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$31.88

92153

BOLT,FLANGED,10X285

92153-1909

$22.70

92153A

BOLT,FLANGED,10X158

92153-1910

$11.30

92153B

BOLT,FLANGED,10X198

92153-1911

$13.21

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35
