Description

Price

120

BOLT-SOCKET,6X18

120CA0618

$3.07

120A

BOLT-SOCKET,6X25

120CA0625

$2.06

120B

BOLT-SOCKET,5X35

120R0535

$1.96

11011

CASE-AIR FILTER

11011-0080

$116.10

11013

ELEMENT-AIR FILTER

11013-0015

$46.64

11038

CASE-ASSY-AIR FILTER

11038-0015

$120.37

14073

DUCT,INTAKE

14073-0103

$17.78

14073A

DUCT,THROTTLE BODY

14073-0104

$29.16

16126

VALVE,AIR SWITCHING

16126-1437

$185.64

92022

WASHER,6.5X20X1.6

92022-1557

$1.40

92027

COLLAR,L=12

92027-1062

$7.34

92037

CLAMP,14.5MM

92037-1900

$4.87

92071

GROMMET

92071-0026

$3.87

92075

DAMPER,RUBBER

92075-1123

$5.00

92093

SEAL

92093-0054

$6.33

92093A

SEAL

92093-0057

$13.48

92152

COLLAR

92152-0451

$3.90

92154

BOLT,SOCKET,5X16.5

92154-0120

$1.92

92170

CLAMP

92170-1989

$3.86

92171A

CLAMP

92171-1441

$4.56

92191

TUBE

92191-1704

$7.56

92192

TUBE,ASV-FR HEAD

92192-0266

$10.21

92192A

TUBE,ASV-RR HEAD

92192-0267

$20.04

92192C

TUBE,BLOWBY

92192-0269

$11.82

92005

FITTING

92005-0054

$6.33

92171

CLAMP

92171-0790

$4.20

92171

CLAMP

92171-0790

$4.20

92192B

TUBE,A/C-ASV

92192-0268

$8.28

92192E

TUBE,ASV-FITTING

92192-0345

$6.68

92192F

TUBE,A/C-FITTING

92192-0510

$23.43

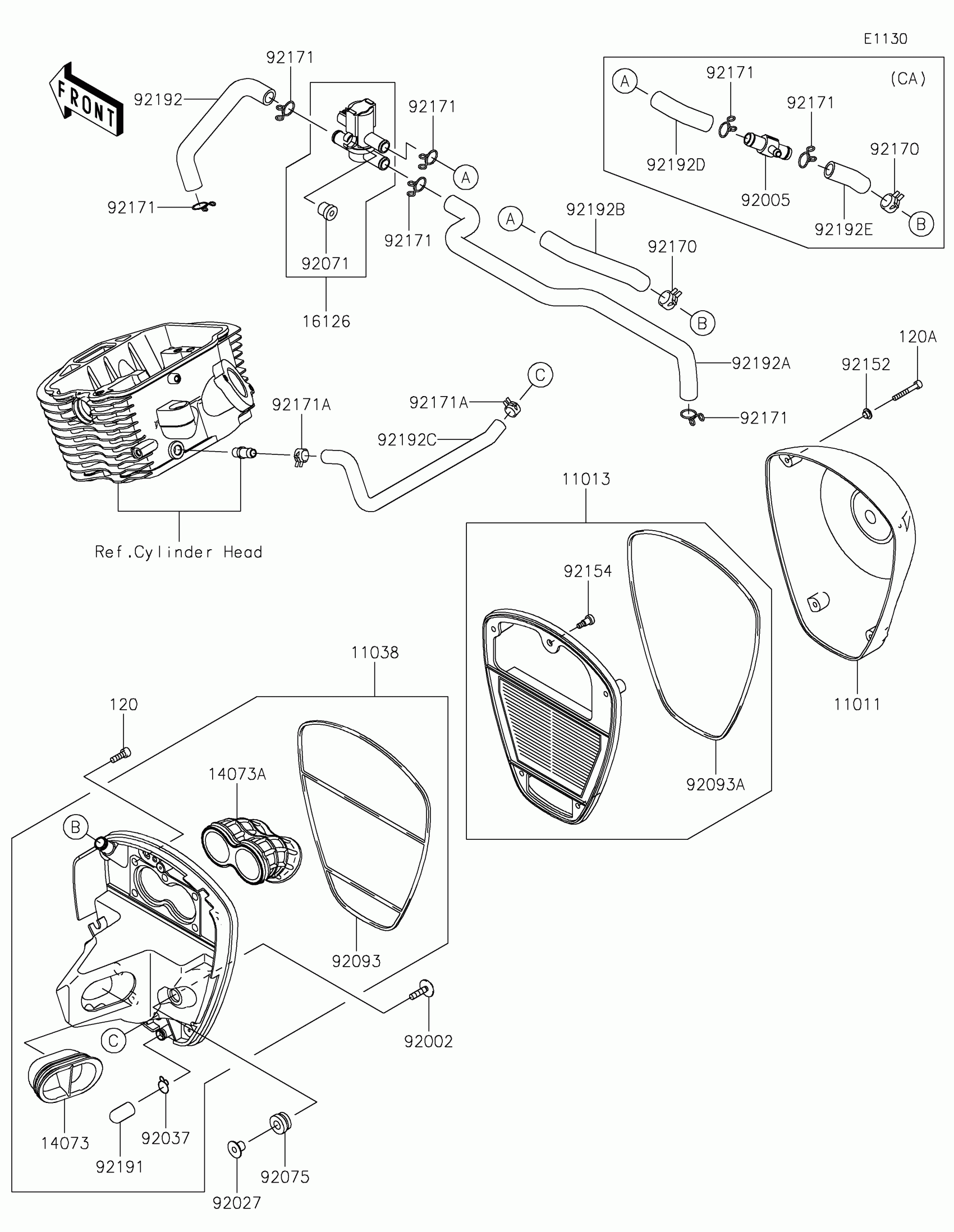

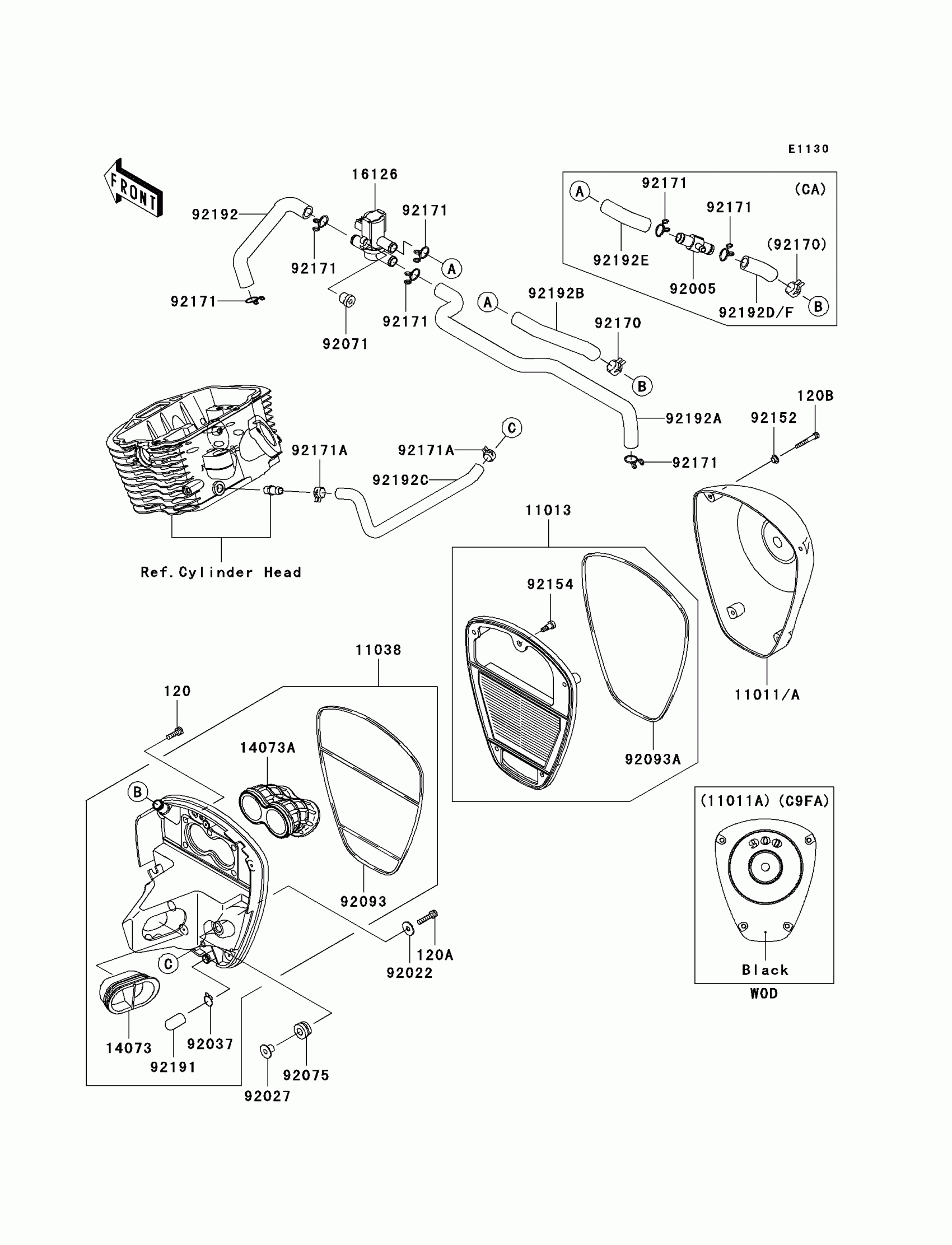

Kawasaki Vulcan® 900 Custom Air Cleaner Diagram

BOLT-SOCKET,6X18

BOLT-SOCKET,6X25

BOLT-SOCKET,5X35

CASE-AIR FILTER

ELEMENT-AIR FILTER

CASE-ASSY-AIR FILTER

DUCT,INTAKE

DUCT,THROTTLE BODY

VALVE,AIR SWITCHING

WASHER,6.5X20X1.6

COLLAR,L=12

CLAMP,14.5MM

GROMMET

DAMPER,RUBBER

SEAL

SEAL

COLLAR

BOLT,SOCKET,5X16.5

CLAMP

CLAMP

TUBE

TUBE,ASV-FR HEAD

TUBE,ASV-RR HEAD

TUBE,BLOWBY

FITTING

CLAMP

CLAMP

TUBE,A/C-ASV

TUBE,ASV-FITTING

TUBE,A/C-FITTING
