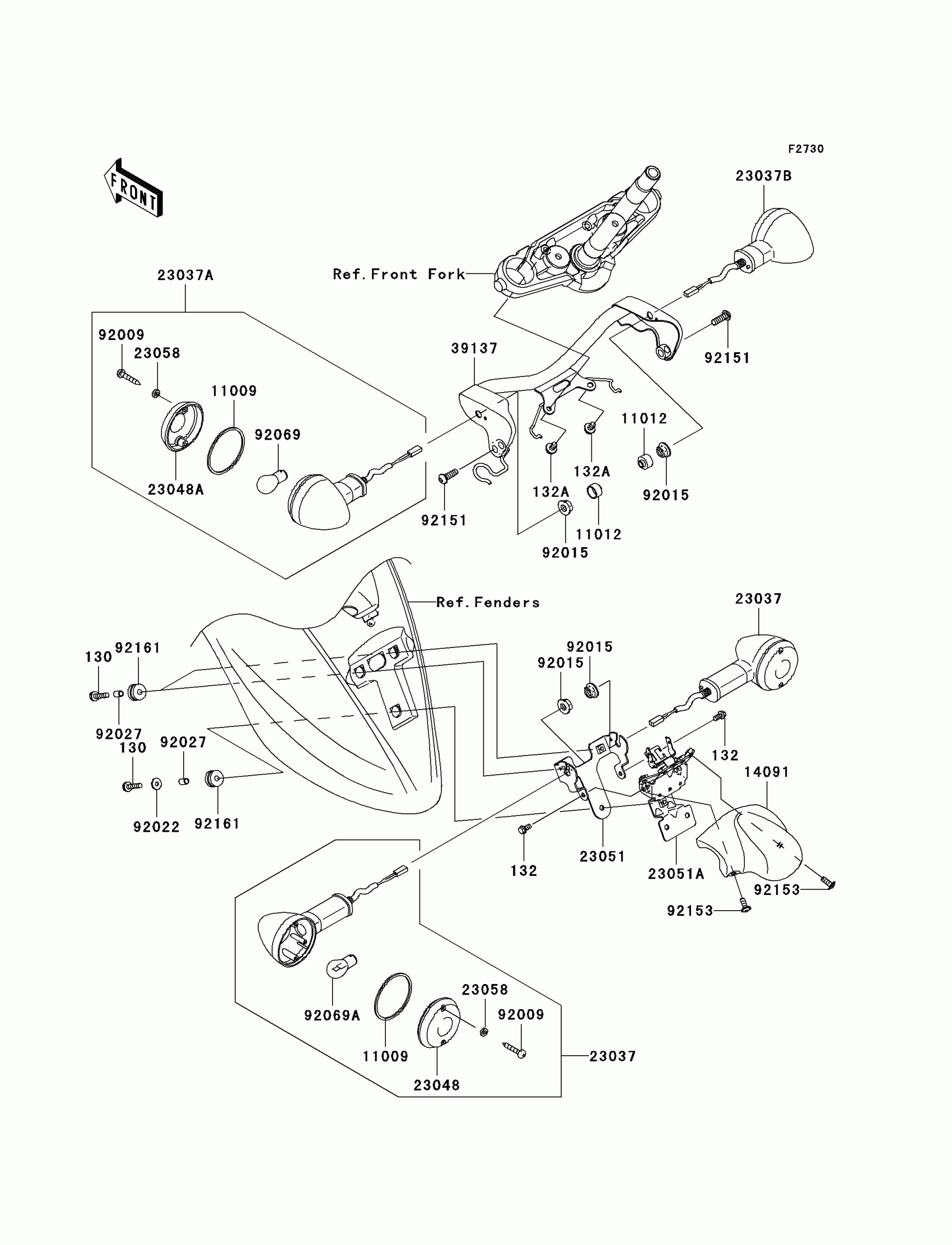

Kawasaki Vulcan 900 Classic Turn Signals(-JKAVN2B1 7A016369) Diagram

Description

Price

130

BOLT-FLANGED,6X25

130L0625

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

132A

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

11009

GASKET,SIGNAL LAMP

11009-1413

$3.78

11012

CAP

11012-1367

$4.88

14091

COVER

14091-0525

$48.74

23037

LAMP-ASSY-SIGNAL,RR

23037-0087

$72.56

23037A

LAMP-ASSY-SIGNAL,FR,LH

23037-0107

$72.56

23037B

LAMP-ASSY-SIGNAL,FR,RH

23037-0108

$72.56

23048

LENS-SIGNAL LAMP,RR

23048-1065

$7.26

23048A

LENS-SIGNAL LAMP,FR

23048-1066

$7.26

23051

BRACKET-SIGNAL LAMP,RR,UPP

23051-0012

$25.56

23051A

BRACKET-SIGNAL LAMP,RR,LWR

23051-0018

$32.46

23058

WASHER,PLAIN,4MM

23058-002

$1.77

39137

STAY-COMP,FR SIGNAL LAMP

39137-0019

$146.34

92009

SCREW,TAPPING,4X25

92009-1637

$3.53

92015

NUT,10MM

92015-1356

$2.84

92022

WASHER,6.5X20X1.6

92022-1557

$1.08

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 21/5W

92069-063

$7.09

92069A

Not Available As Spare Part - Friction Washer

Unavailable

92151

BOLT,SOCKET,8X25

92151-1327

$3.53

92153

BOLT,SOCKET,6X16

92153-0817

$1.57

92161

DAMPER

92161-0163

$4.39
