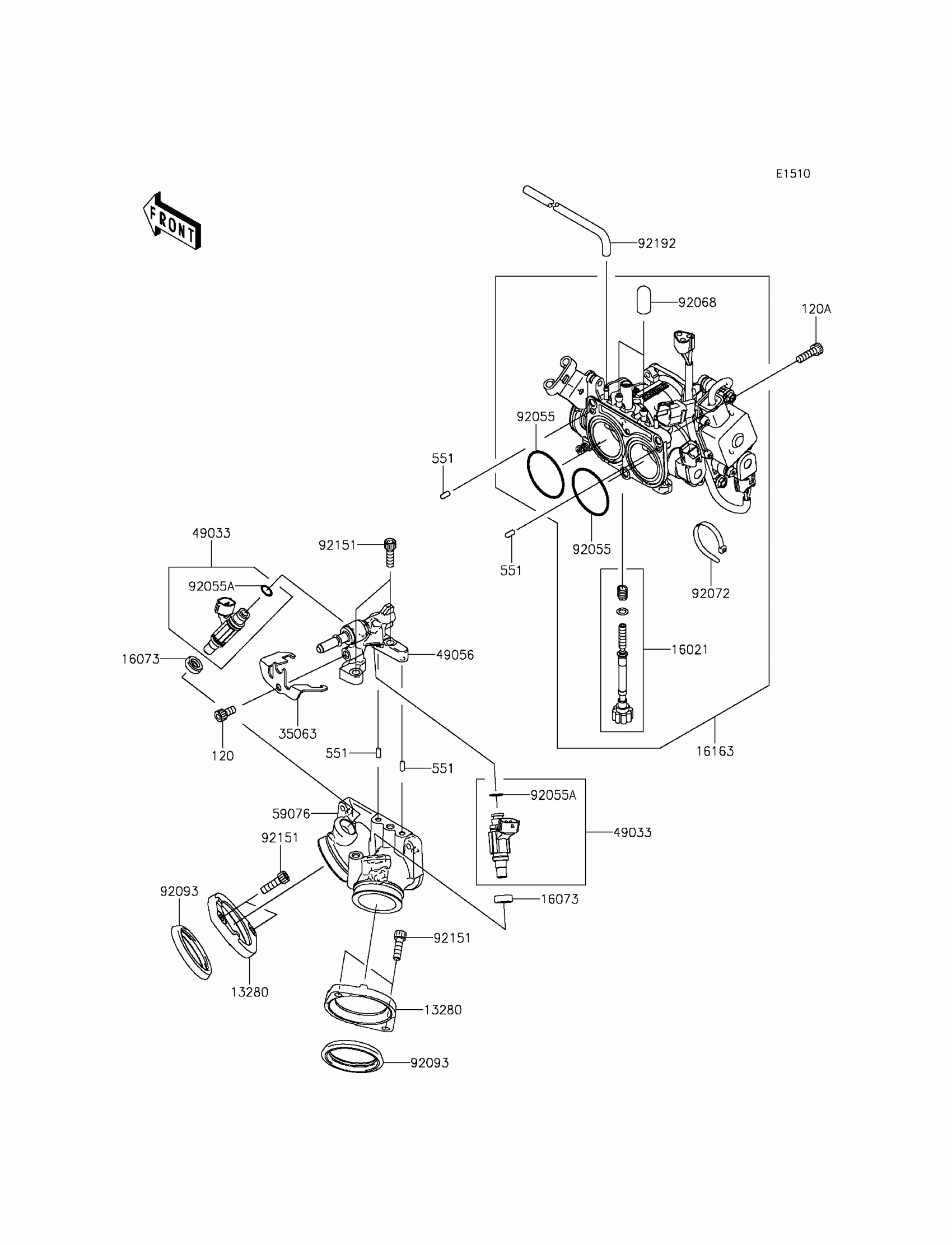

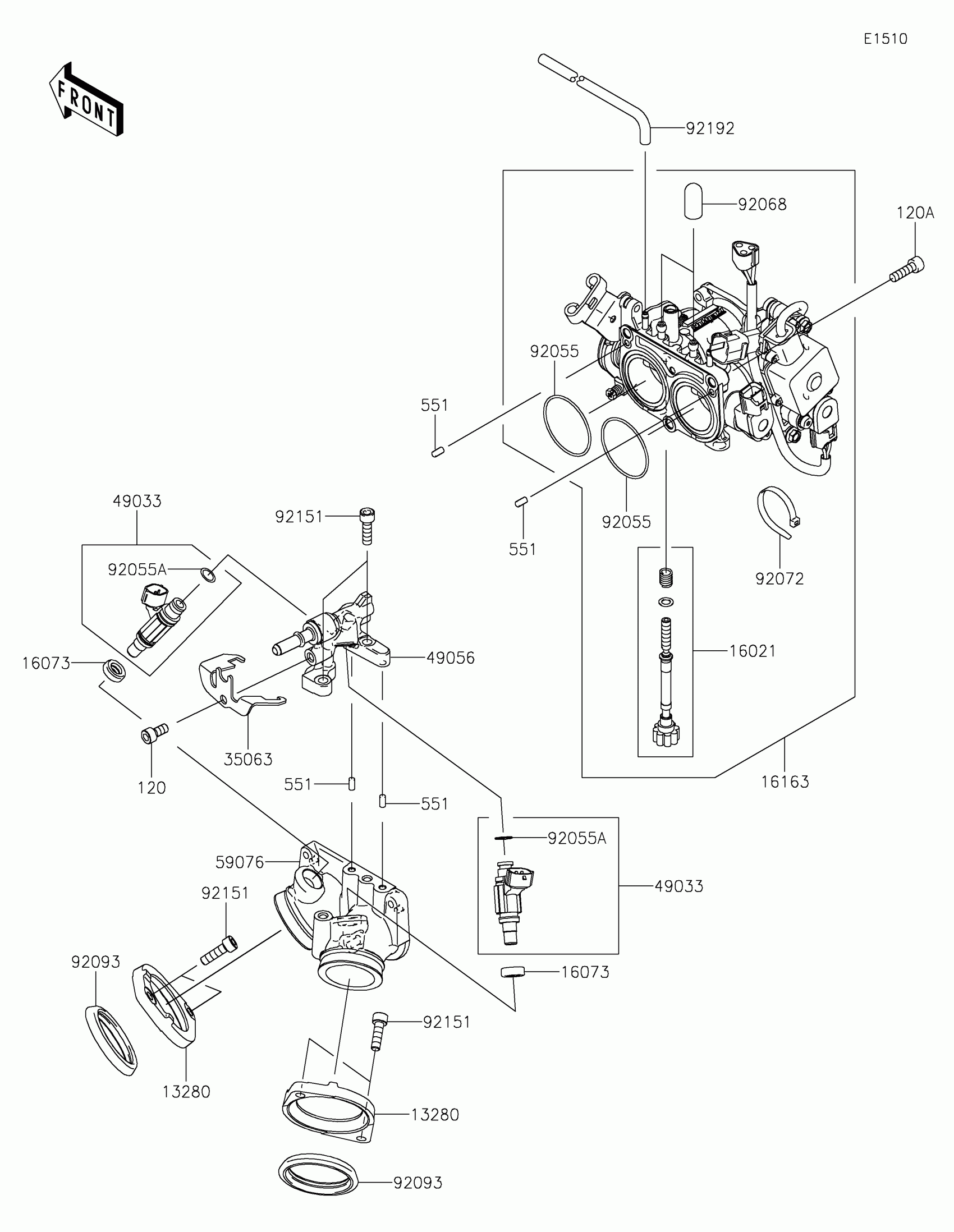

Kawasaki Vulcan 900 Classic Throttle Diagram

Description

Price

13280

HOLDER

13280-1154

$23.79

16021

SCREW-THROTTLE STOP

16021-0016

$111.90

16073

INSULATOR

16073-3707

$6.18

16163

THROTTLE-ASSY,TTK34

16163-0114

$854.62

35063

STAY

35063-0240

$7.54

49033

NOZZLE-INJECTION

49033-0011

$92.32

49056

PIPE-INJECTION

49056-0018

$120.63

59076

MANIFOLD-INTAKE

59076-0003

$158.79

92055

RING-O

92055-0118

$16.97

92055A

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92068

PLUG,12X25

92068-006

$4.26

92072

BAND,SUB-HARNESS

92072-0012

$5.00

92093

SEAL

92093-0072

$20.51

92151

BOLT,SOCKET,6X20

92151-3774

$1.83

92192

TUBE,SENSOR-THROBO

92192-0308

$7.60

120

BOLT-SOCKET,6X12

120CA0612

$1.71

120A

BOLT-SOCKET,6X20

120CA0620

$1.77

551

PIN-DOWEL

551R0408

$5.38
