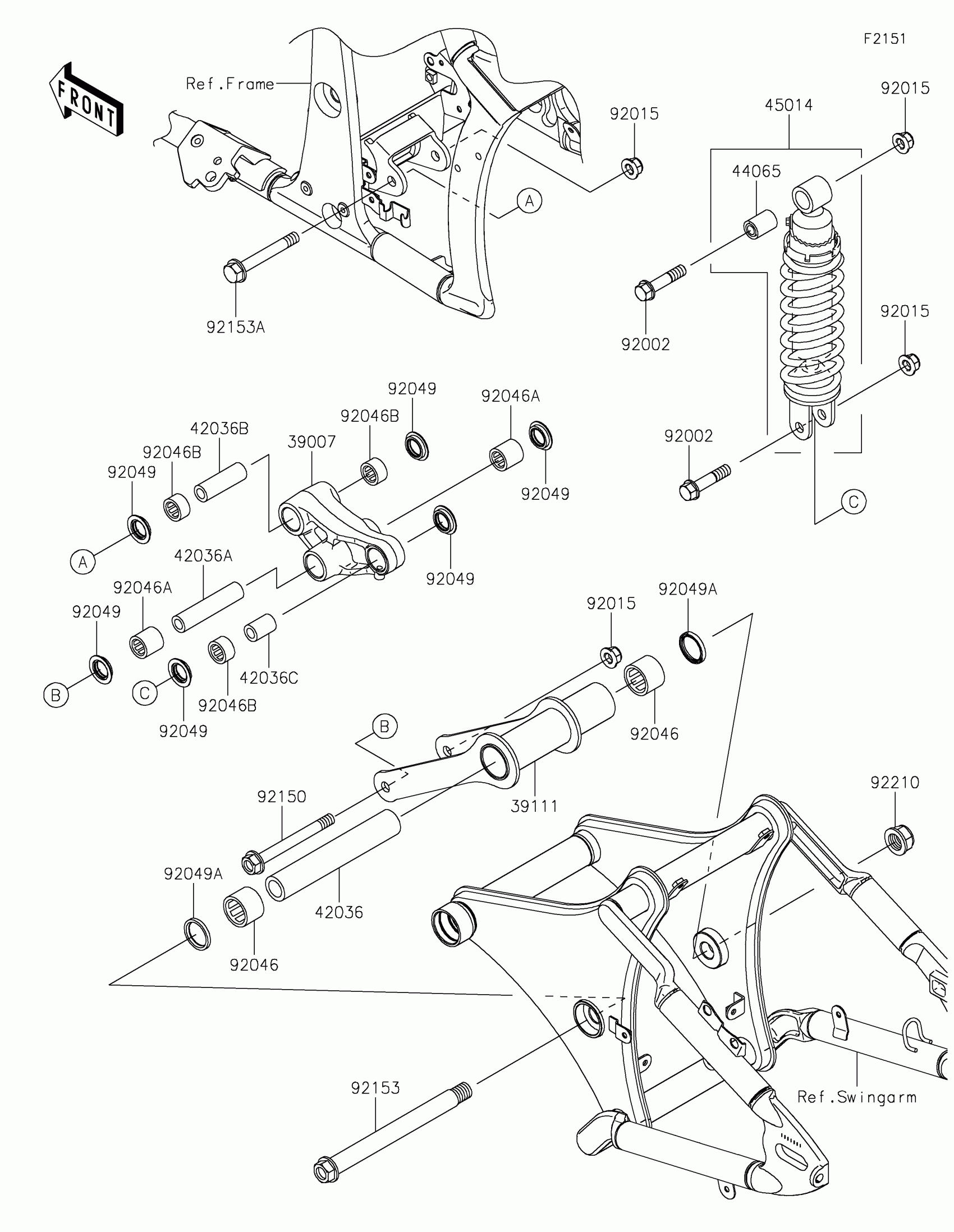

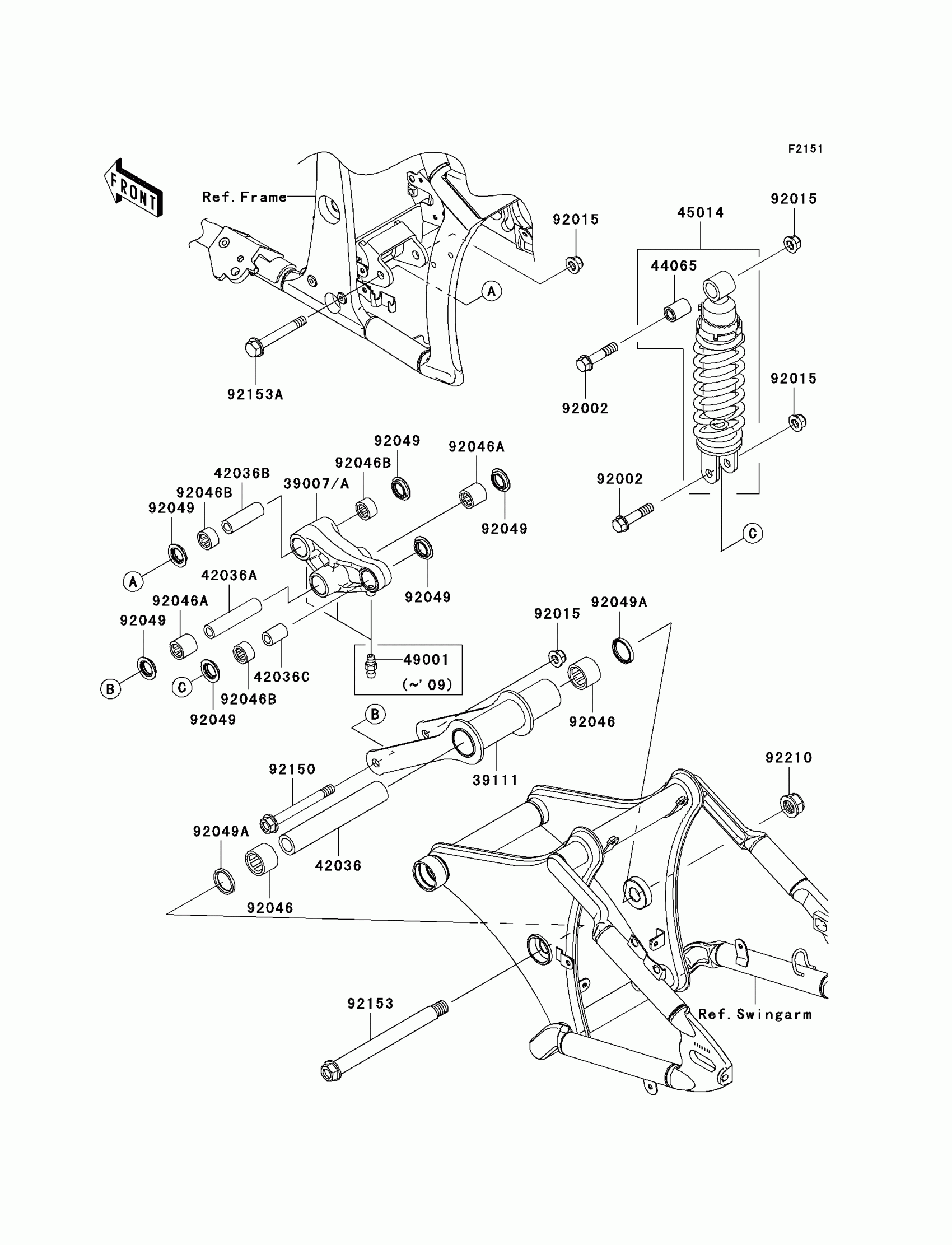

Kawasaki Vulcan® 900 Classic Suspension/Shock Absorber Diagram

Description

Price

39007A

ARM-SUSP,UNI TRAK

39007-0160

$241.76

39111

ROD-TIE,SUSPENSION

39111-0026

$132.02

42036

SLEEVE,20.1X30X171

42036-0032

$63.70

42036A

SLEEVE,12.1X20X92

42036-0040

$22.01

42036B

SLEEVE,ARM,FR

42036-1078

$25.27

42036C

SLEEVE,12.1X20X30

42036-1234

$14.90

44065

BUSHING,SHOCKABSORBER

44065-1017

$35.38

45014

SHOCKABSORBER

45014-0157

Unavailable

92002

BOLT,12X55

92002-1130

$10.65

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92046

BEARING-NEEDLE,30BM3726

92046-0019

$16.72

92046A

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92046B

BEARING-NEEDLE,BM202715

92046-1112

$20.89

92049

SEAL-OIL,ARM

92049-1109

$9.28

92049A

SEAL-OIL,BJN 30374

92049-1205

$18.74

92150

BOLT,FLANGED,12X117

92150-1895

$12.74

92153

BOLT,FLANGED,18X214

92153-1392

$46.79

92153A

BOLT,FLANGED,12X90

92153-1403

$10.30

92210

NUT,LOCK,18MM

92210-0267

$18.57
