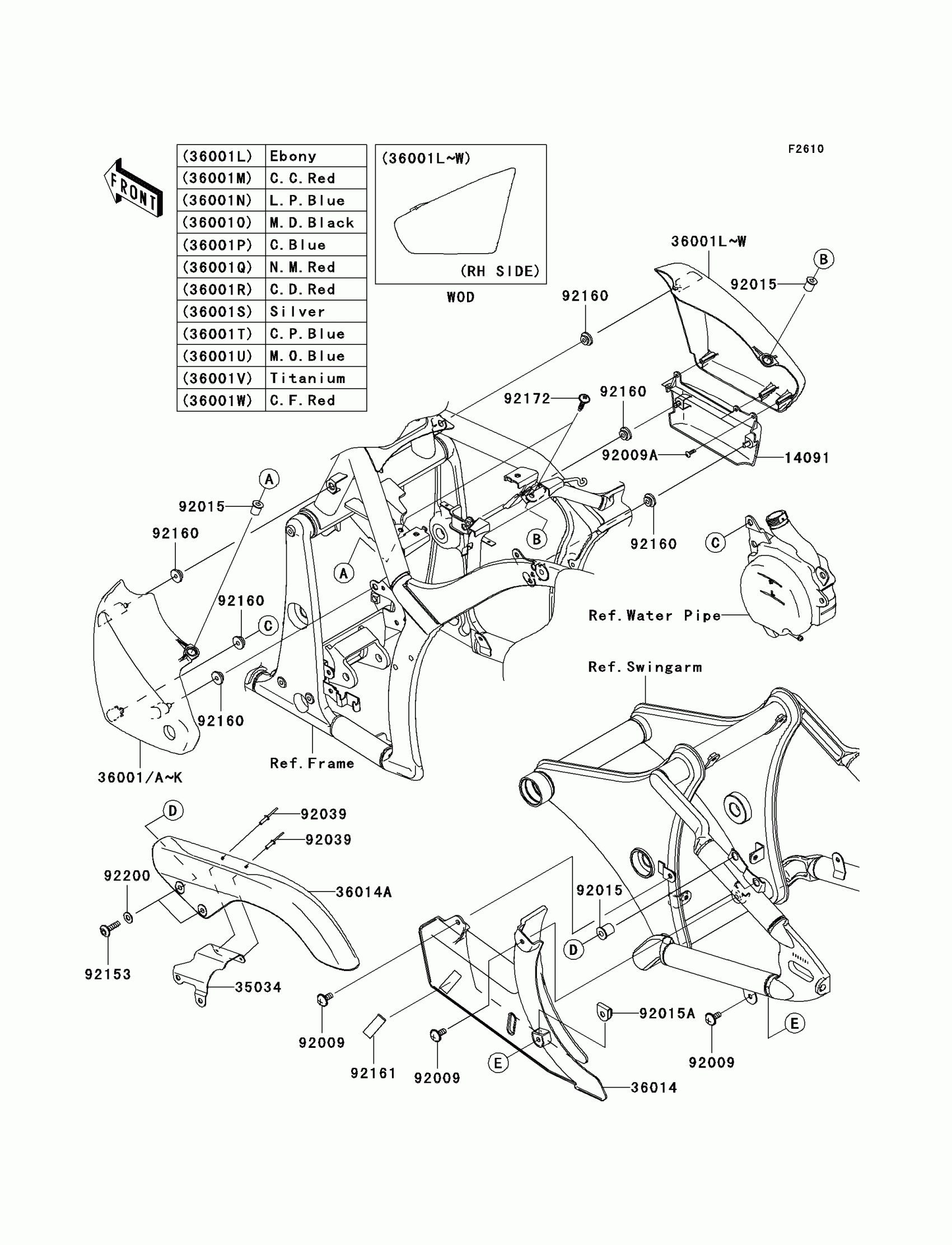

Kawasaki Vulcan® 900 Classic Side Covers/Chain Cover(B6F-B9F) Diagram

Description

Price

14091

COVER,SIDE COVER,RH

14091-0641

$12.83

35034

REINFORCE

35034-0082

$15.93

36001C

COVER-SIDE,LH,M.D,BLACK

36001-0081-17K

$120.44

36001F

COVER-SIDE,LH,C.D.RED

36001-0081-25T

$120.57

36001H

COVER-SIDE,LH,C.P.BLUE

36001-0081-723

$120.44

36001O

COVER-SIDE,RH,M.D,BLACK

36001-0082-17K

$120.44

36001R

COVER-SIDE,RH,C.D.RED

36001-0082-25T

$120.57

36001T

COVER-SIDE,RH,C.P.BLUE

36001-0082-723

$120.44

36014

CASE-CHAIN,LWR

36014-0031

$47.25

36014A

CASE-CHAIN,UPP

36014-0032

$104.78

92009

SCREW,6X14

92009-1662

$2.99

92009A

SCREW,TAPPING,4X14

92009-1792

$1.62

92015

NUT

92015-1700

$6.55

92015A

NUT,CLIP,6MM

92015-1904

$4.93

92039

RIVET

92039-1251

$1.20

92153

BOLT,SOCKET,6X22

92153-1356

$1.57

92160

DAMPER

92160-1613

$2.84

92161

DAMPER

92161-0124

$2.38

92172

SCREW,6X26

92172-0137

$3.57

92200

WASHER,6.5X14X1

92200-1388

$1.76
