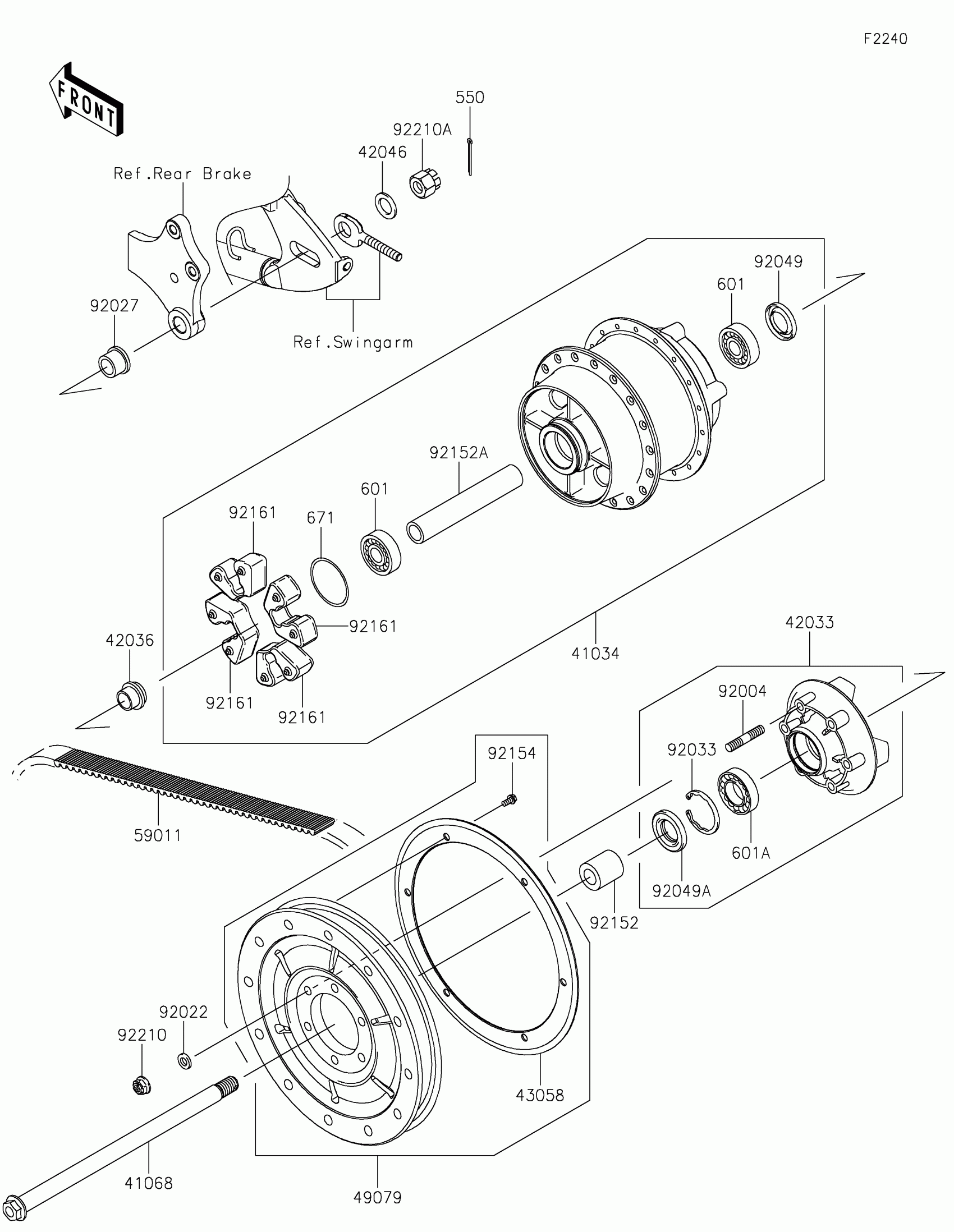

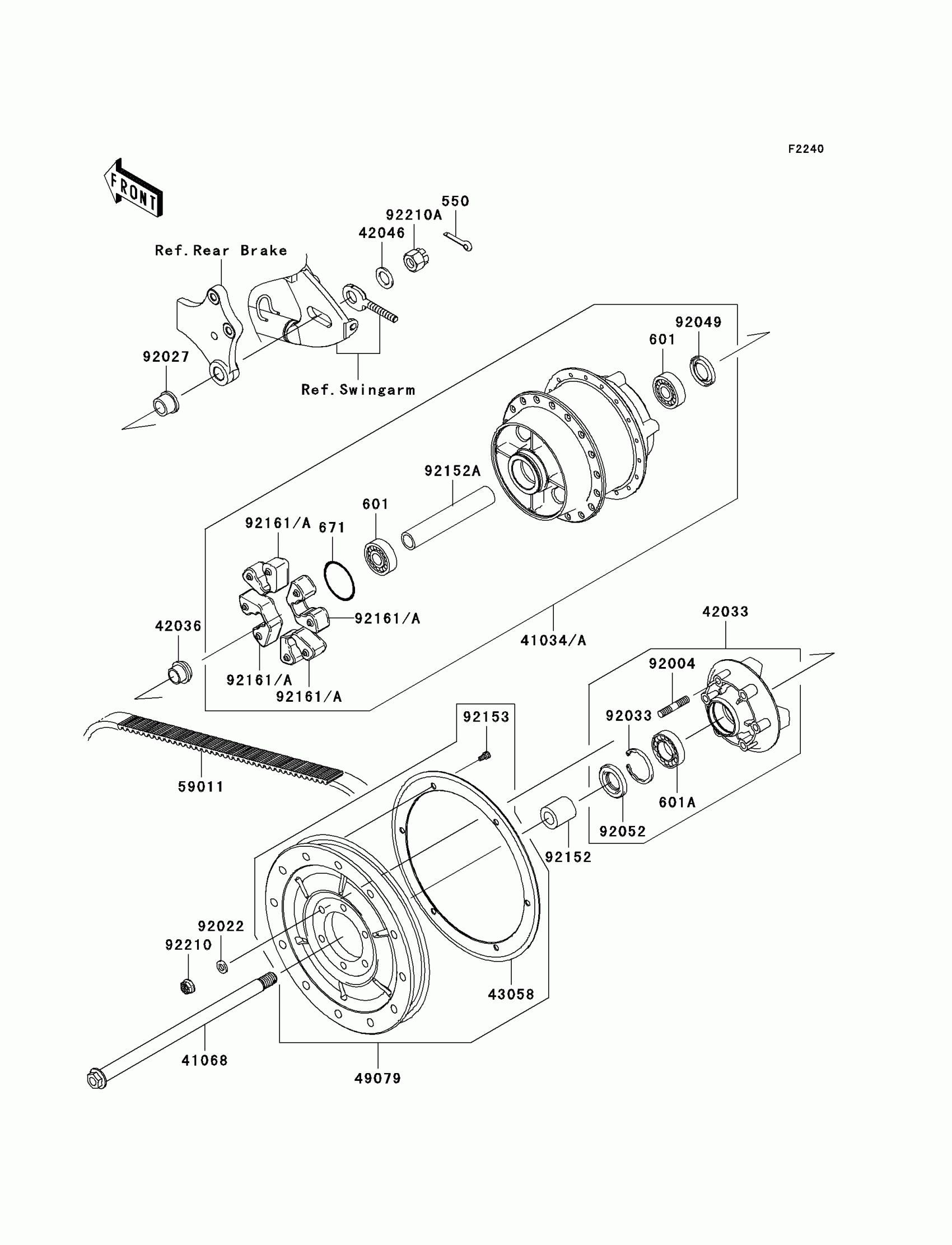

Kawasaki Vulcan® 900 Classic Rear Wheel/Chain Diagram

Description

Price

550

PIN-COTTER,4.0X35

550AA4035

$2.17

601

BEARING-BALL,6204UUC3

601B6204UU

$29.98

601A

BEARING-BALL

601B6205UU

$29.62

671

O RING,60MM

671B2560

$6.91

41034A

DRUM-ASSY,REAR BRAKE

41034-0047

$551.34

41068

AXLE,RR

41068-0057

$83.51

42033

COUPLING-ASSY,RR HUB

42033-0022

Unavailable

42036

SLEEVE,RR HUB,L=23

42036-1251

$26.21

42046

WASHER,21X33X2.6

42046-003

$4.31

43058

RING,REAR PULLEY

43058-0011

$46.35

49079

PULLEY-BELT

49079-0011

$739.55

59011

BELT,DRIVE,153T

59011-0013

Unavailable

92004

STUD,10X35

92004-0016

$7.31

92022

WASHER,10.5X19X3.2

92022-1820

$4.31

92027

COLLAR,RR AXLE,L=21.5

92027-1902

$25.27

92033

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,BJN28475

92049-1056

$13.08

92052

SEAL-OIL,TWC35527

92052-006

Unavailable

92152

COLLAR,RR AXLE,LH,L=38.6

92152-0350

$30.75

92152A

COLLAR,REAR BRAKE DRUM,L=166.4

92152-0351

$23.84

92153

BOLT,SOCKET,6X12

92153-1525

$1.88

92161A

DAMPER,SHOCK,RR HUB

92161-0466

$30.10

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,CASTLE,18MM

92210-1134

$7.62
