- Vulcan 900 Classic LT
Turn Signals

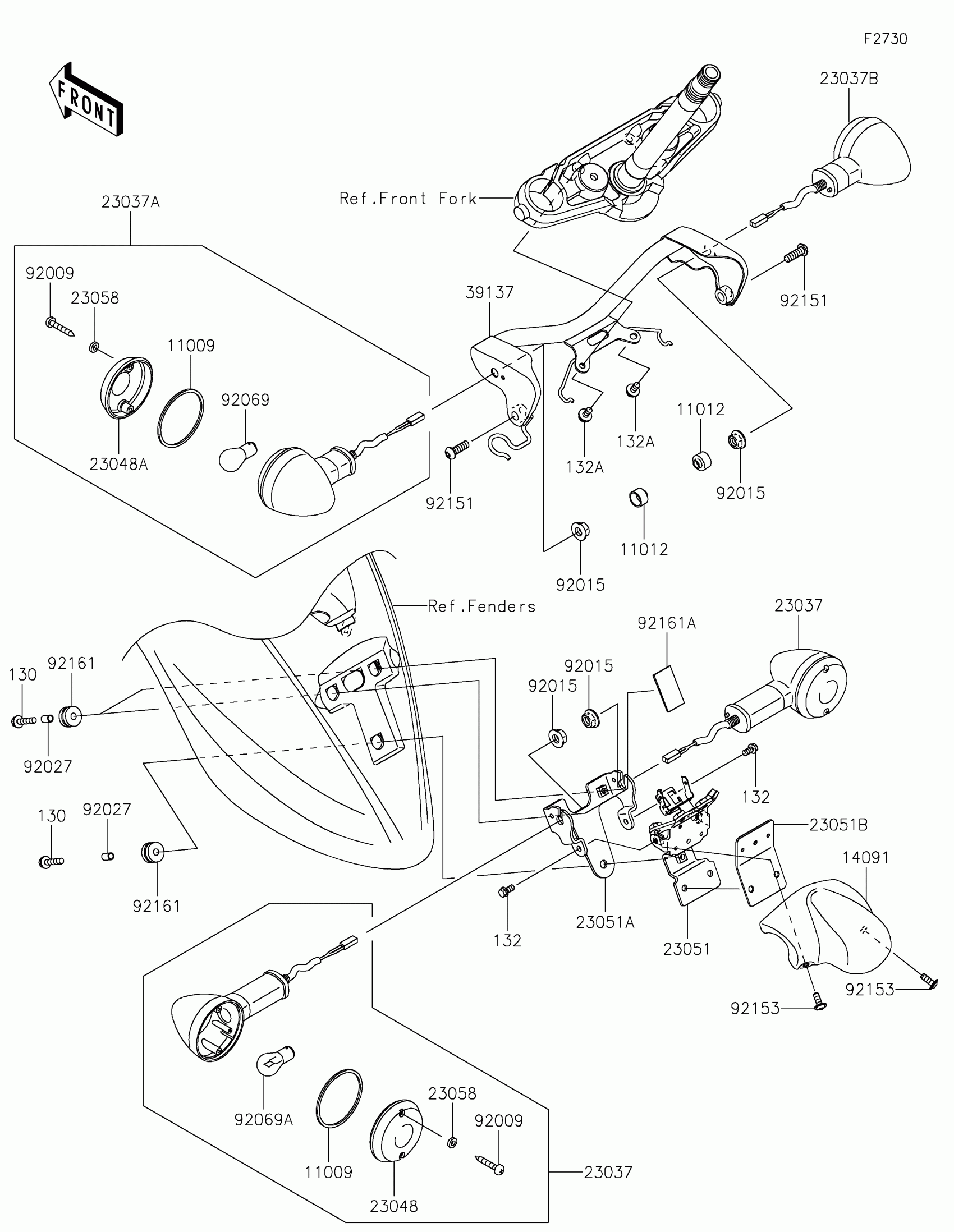

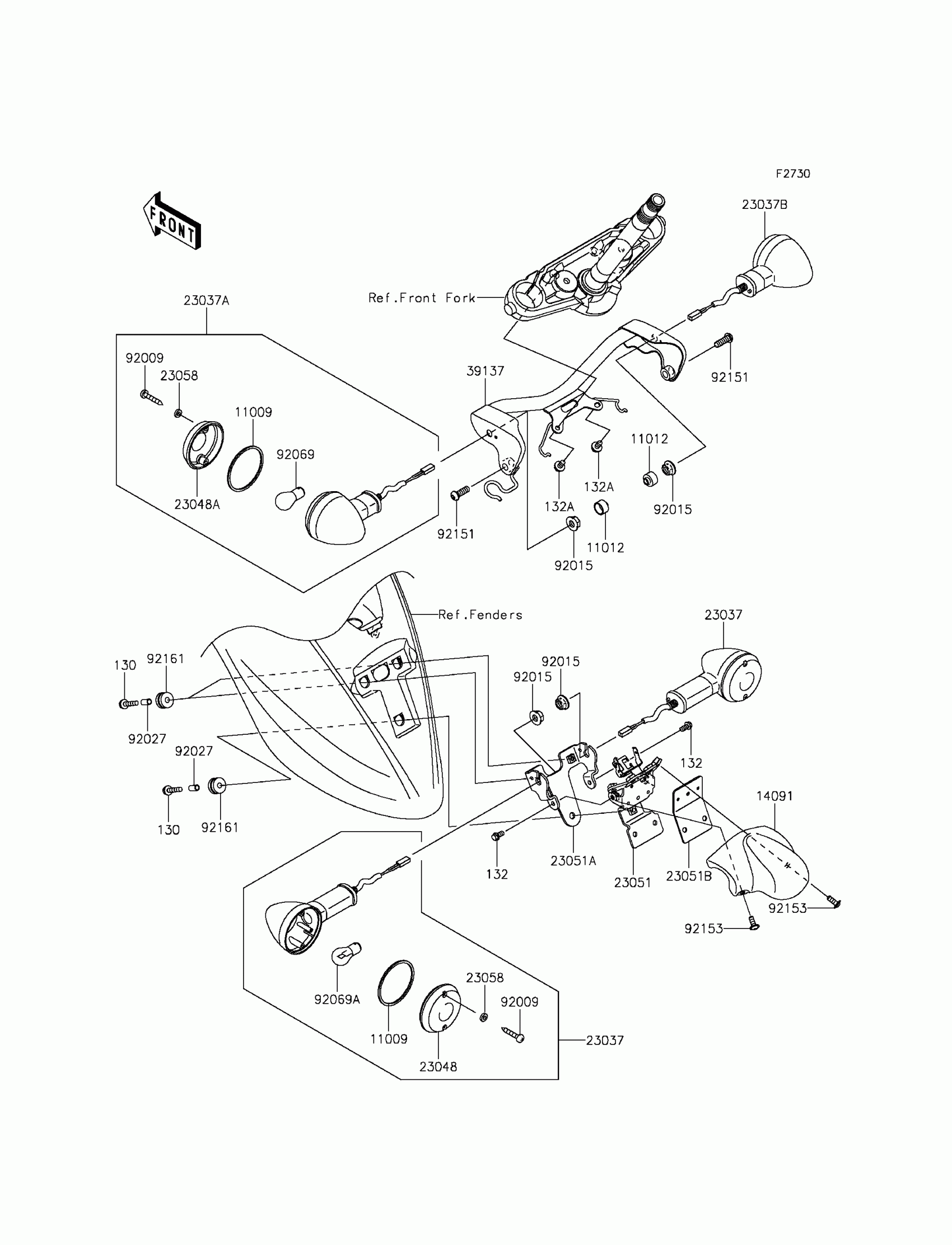

Kawasaki Vulcan 900 Classic LT Turn Signals Diagram
#
Description
Price
11009
GASKET,SIGNAL LAMP
11009-1413
$4.96
11012
CAP
11012-1367
$6.51
14091
COVER
14091-0525
$55.25
23037
LAMP-ASSY-SIGNAL,RR
23037-0087
$81.55
23037A
LAMP-ASSY-SIGNAL,FR,LH
23037-0511
$81.55
23037B
LAMP-ASSY-SIGNAL,FR,RH
23037-0512
$81.55
23048
LENS-SIGNAL LAMP,RR
23048-0036
$9.53
23048A
LENS-SIGNAL LAMP,FR
23048-0037
$9.53
23051
BRACKET-SIGNAL LAMP,RR,LWR
23051-0020
$31.86
23051A
BRACKET-SIGNAL LAMP,RR,UPP
23051-0021
$27.22
23051B
BRACKET-SIGNAL LAMP,RR
23051-0022
$11.93
23058
WASHER,PLAIN,4MM
23058-002
$2.49
39137
STAY-COMP,FR SIGNAL LAMP
39137-0019
$143.32
92009
SCREW,TAPPING,4X25
92009-1637
$3.92
92015
NUT,10MM
92015-1356
$3.74
92027
COLLAR,6.8X10X15
92027-1941
$4.45
92069
BULB,12V 21/5W
92069-063
$9.31
92069A
Not Available As Spare Part - Friction Washer
Unavailable
92151
BOLT,SOCKET,8X25
92151-1327
$3.92
92153
BOLT,SOCKET,6X16
92153-0817
$2.15
92161
DAMPER
92161-0163
$5.79
92161A
DAMPER,45X25X2
92161-1381
$2.32
130
BOLT-FLANGED,6X30
130CA0630
$2.49
132
BOLT-FLANGED-SMALL,6X12
132BB0612
$2.06
132A
BOLT-FLANGED-SMALL,6X12
132E0612
$4.41
