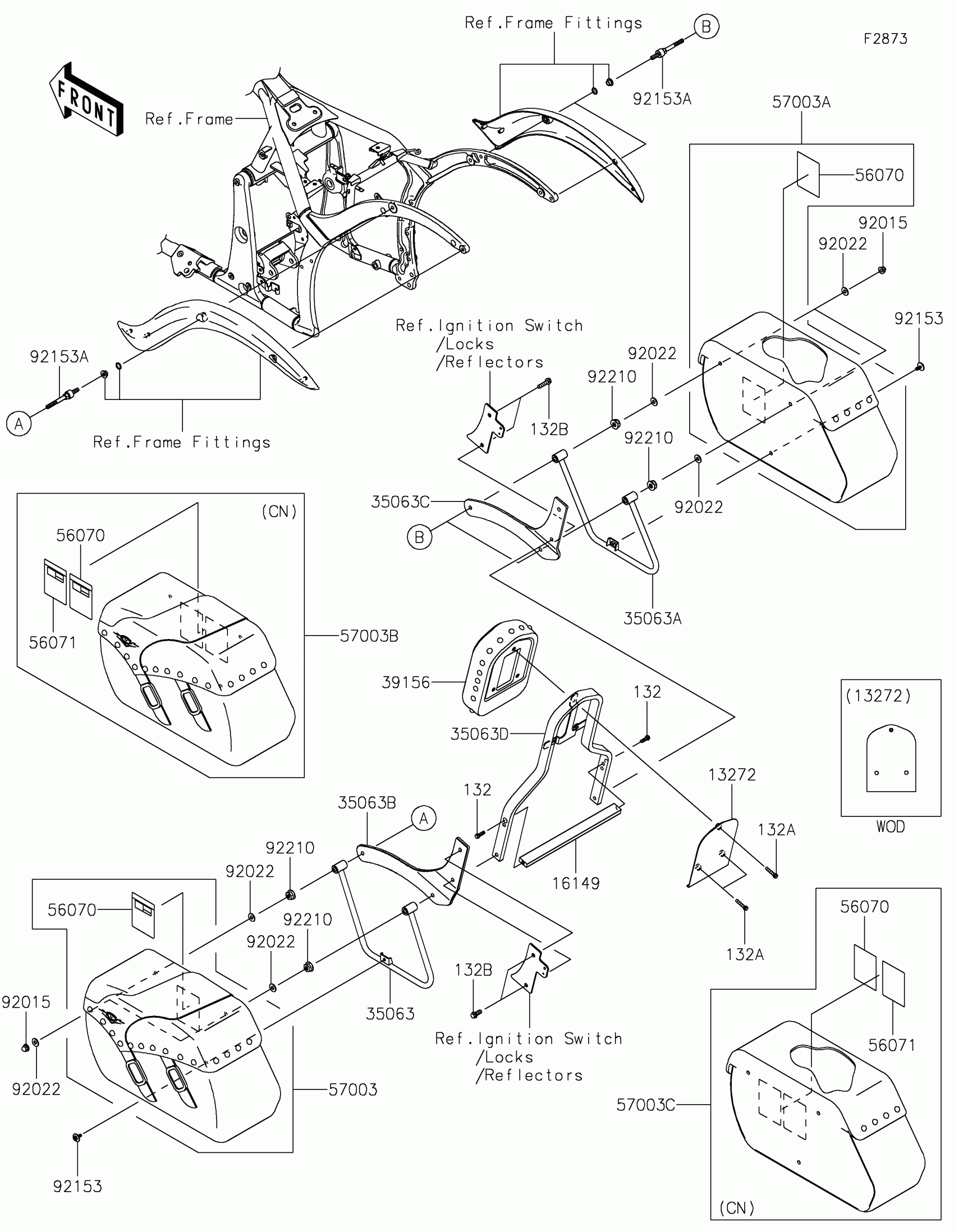

Kawasaki Vulcan 900 Classic LT Saddlebags Diagram

Description

Price

13272

PLATE

13272-0841

$63.92

16149

BAR

16149-0032

$128.28

35063

STAY,SIDE BAG,LH

35063-0264

$76.50

35063A

STAY,SIDE BAG,RH

35063-0266

$76.50

35063B

STAY,BACKREST,LH

35063-0349

$98.10

35063C

STAY,BACKREST,RH

35063-0350

$98.10

35063D

STAY,BACKREST

35063-0691

$235.97

39156

PAD,SISSY BAR,BLACK

39156-0559-MA

$128.45

56070

LABEL-WARNING,SADDLEBAG

56070-0076

$8.23

92015

NUT,CAP,LOCK,8MM,BLACK

92015-1209

$6.81

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92153

BOLT,6X16

92153-0684

$4.49

92153A

BOLT

92153-1544

$24.67

92210

NUT,FLANGED,8MM

92210-0555

$2.03

132

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.99

132A

BOLT-FLANGED-SMALL,6X30

132E0630

$6.22

132B

BOLT-FLANGED-SMALL,8X20

132E0820

$4.69
