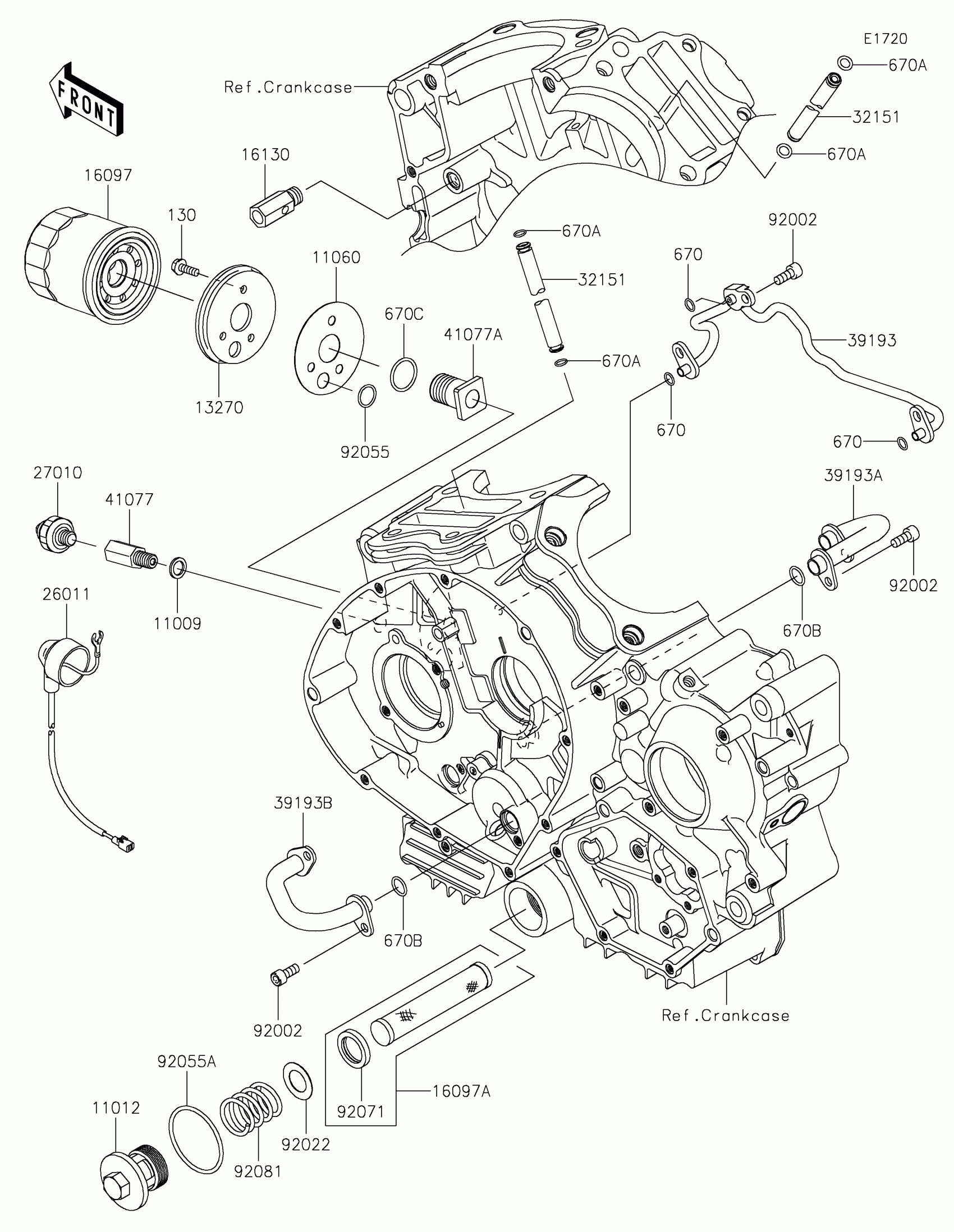

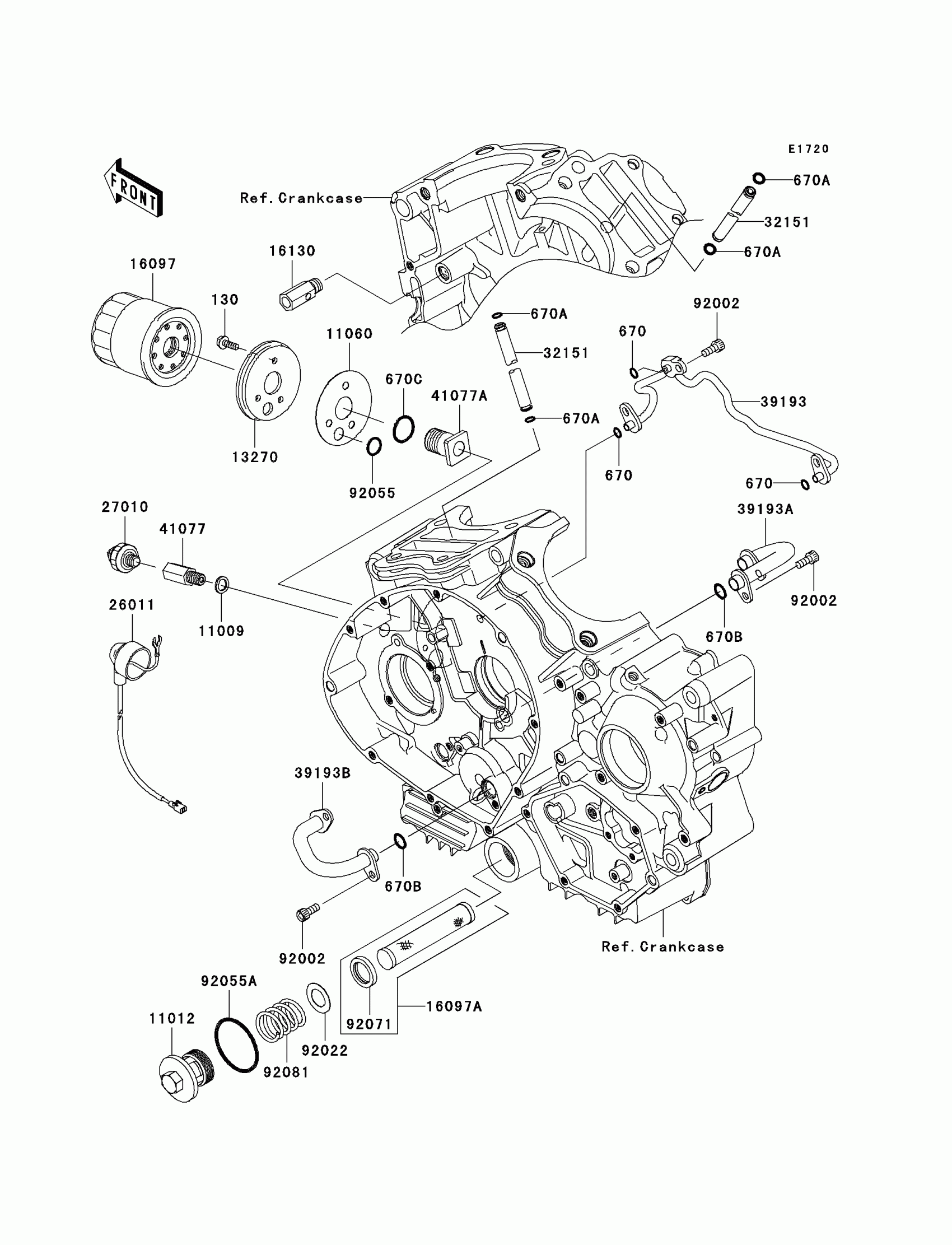

Kawasaki Vulcan® 900 Classic LT Oil Filter Diagram

Description

Price

130

BOLT-FLANGED,5X14

130CA0514

$5.05

670

O RING,6MM

670D1506

$1.66

670A

O RING,7MM

670D1507

$1.70

670B

O RING,12MM

670D2012

$2.77

670C

O RING,20MM

670D2020

$6.22

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

11012

CAP,OIL FILTER

11012-1461

$45.18

11060

GASKET,OIL FILTER

11060-1092

$8.51

13270

PLATE,OIL FILTER

13270-1170

$29.41

16097

FILTER-ASSY-OIL

16097-0004

Unavailable

16097A

FILTER-ASSY-OIL

16097-1058

$14.37

16130

VALVE-ASSY-RELIEF

16130-1001

Unavailable

26011

WIRE-LEAD

26011-0109

$63.70

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

32151

PIPE

32151-1895

$14.10

39193

PIPE-OIL

39193-0035

$56.70

39193A

PIPE-OIL

39193-0036

$35.13

39193B

PIPE-OIL

39193-0037

$35.13

41077

ADAPTER,PRESSURE SWITCH

41077-0017

$39.64

41077A

ADAPTER

41077-1052

$31.88

92002

BOLT,SOCKET,6X14

92002-1592

$4.31

92022

WASHER,16.5X28X0.5

92022-169

$5.00

92055

RING-O,13.0X1.9

92055-1011

$7.62

92055A

RING-O,35.2X2.4

92055-1358

$7.34

92071

GROMMET,OIL STRAINER

92071-100

$5.46

92081

SPRING,OIL FILTER

92081-1862

$12.96
