Description

Price

11054

BRACKET,METER,FR

11054-0034

$13.60

11060

GASKET,FUEL GAUGE

11060-1952

$21.19

14069

BREATHER,FUEL TANK

14069-1004

$10.19

14091

COVER,METER

14091-0516

$123.18

49116

VALVE-ASSY,CHECK

49116-0014

$46.35

51091

TANK-COMP-FUEL,M.C.GRAY+SIL

51091-5070-65J

$1,780.93

51091A

TANK-COMP-FUEL,M.C.GRAY+SIL

51091-5071-65J

$1,780.93

52005

GAUGE,FUEL

52005-0718

$119.50

92027

COLLAR,L=19.3

92027-1780

$6.57

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP-HOSE

92037-1104

$1.45

92037B

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,TUBE

92037-147

$7.34

92075

DAMPER

92075-1736

$6.57

92151

BOLT,SOCKET,6X12

92151-1940

$3.74

92154

BOLT,FLANGED,5X12

92154-1856

$1.78

92160

DAMPER

92160-1162

$5.00

92160A

DAMPER

92160-1323

$4.10

130

BOLT-FLANGED,8X30

130BA0830

$1.98

130A

BOLT-FLANGED,6X10

130BB0610

$2.49

130A

BOLT-FLANGED,6X10

130BB0610

$2.49

702

TUBE-RUBBER,6X200

702A06200

$8.98

92161

DAMPER,FUEL TANK

92161-0293

$7.83

92161A

DAMPER

92161-1065

$3.73

92171

CLAMP

92171-0595

$5.65

92172

SCREW,TAPPING,5X14

92172-0006

$2.80

92173

CLAMP

92173-0848

$3.02

92173

CLAMP

92173-0848

$3.02

92173A

CLAMP

92173-0925

$5.65

92192

TUBE,BREATHER,L=220

92192-1107

$7.64

92192A

TUBE,BREATHER,BLUE,L=220

92192-1108

$28.39

92192B

TUBE,5X10X500/350

92192-1129

$17.14

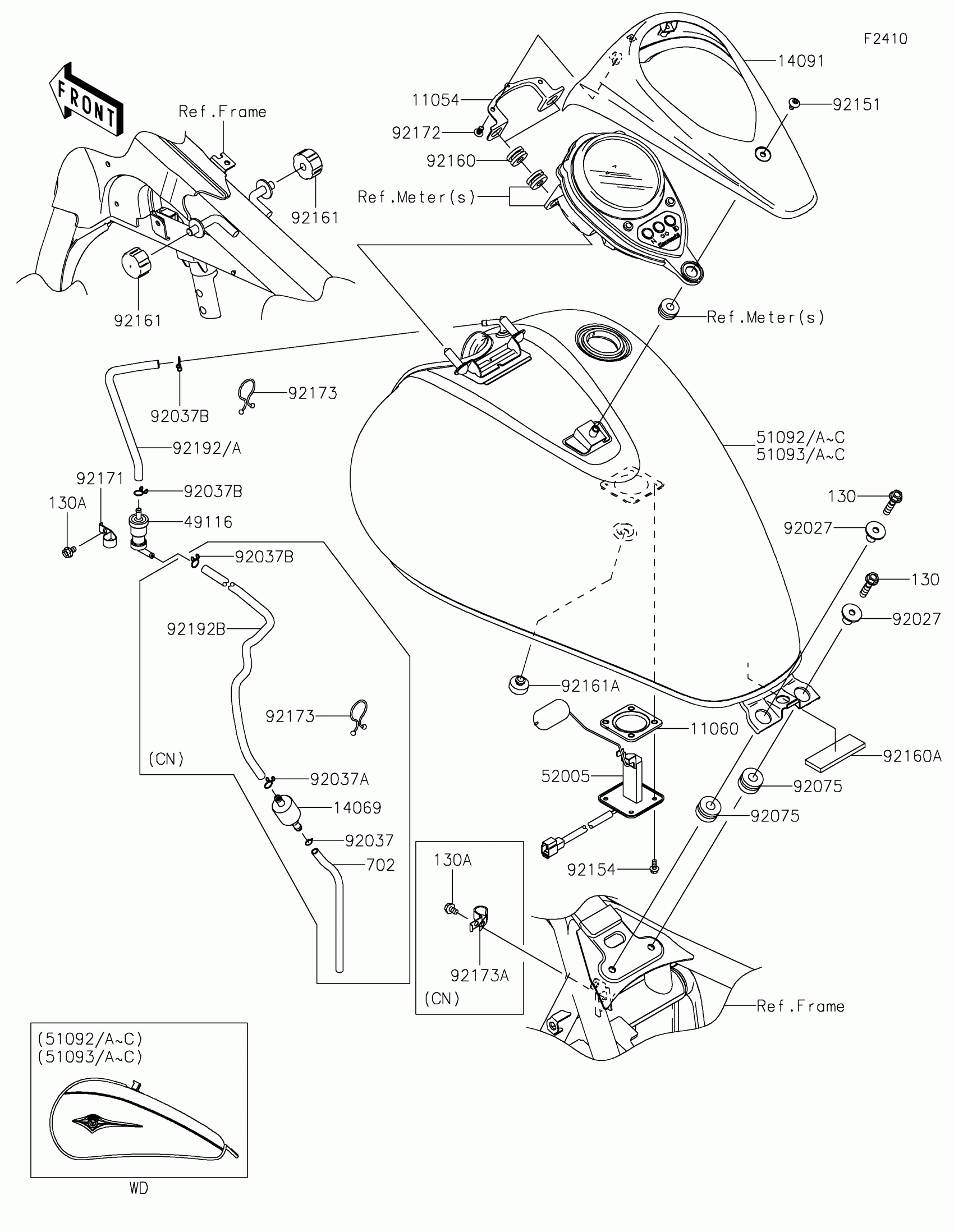

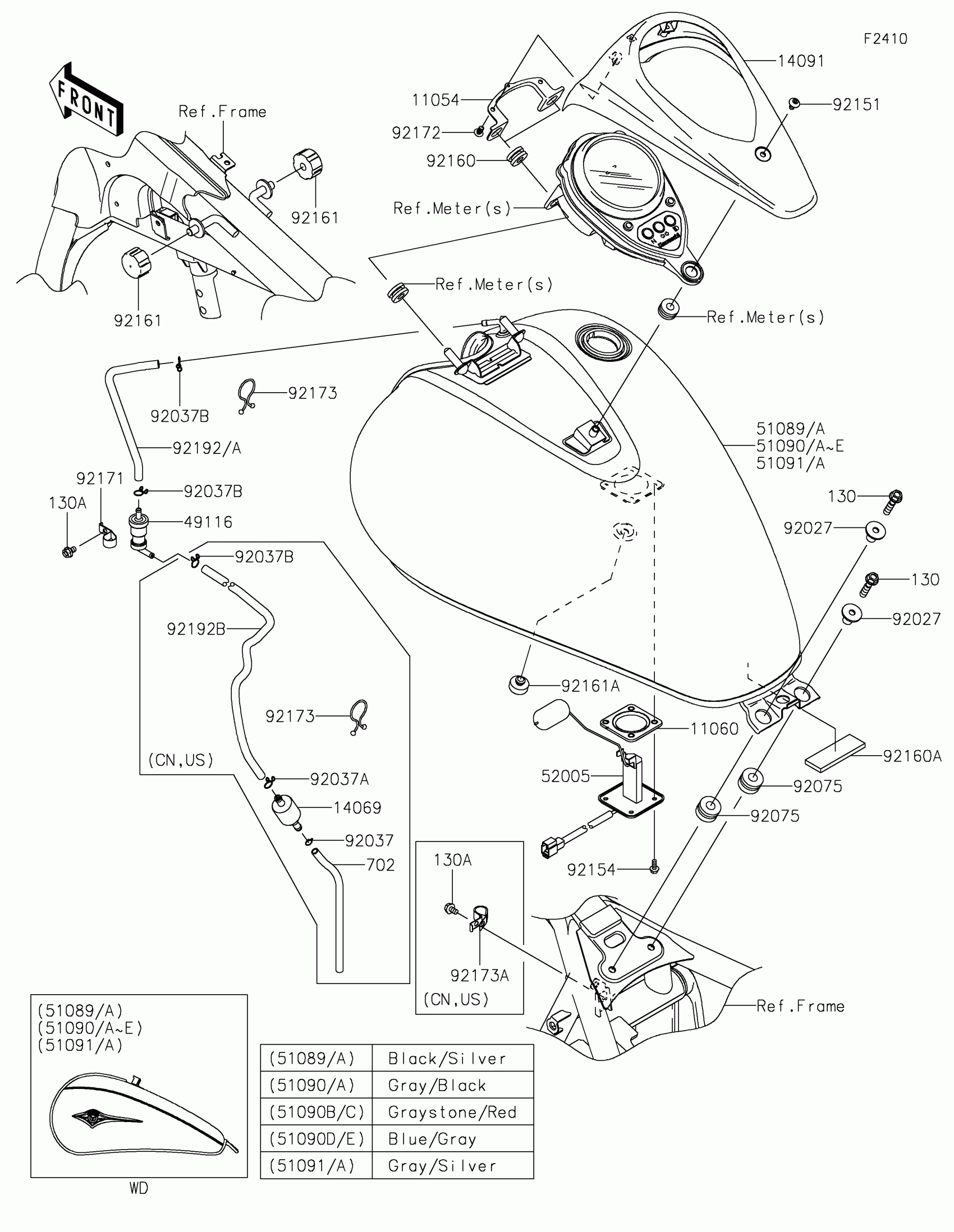

Kawasaki VULCAN® 900 CLASSIC LT Fuel Tank Diagram

BRACKET,METER,FR

GASKET,FUEL GAUGE

BREATHER,FUEL TANK

COVER,METER

VALVE-ASSY,CHECK

TANK-COMP-FUEL,M.C.GRAY+SIL

TANK-COMP-FUEL,M.C.GRAY+SIL

GAUGE,FUEL

COLLAR,L=19.3

CLAMP,TUBE

CLAMP-HOSE

CLAMP,TUBE

CLAMP,TUBE

DAMPER

BOLT,SOCKET,6X12

BOLT,FLANGED,5X12

DAMPER

DAMPER

BOLT-FLANGED,8X30

BOLT-FLANGED,6X10

BOLT-FLANGED,6X10

TUBE-RUBBER,6X200

DAMPER,FUEL TANK

DAMPER

CLAMP

SCREW,TAPPING,5X14

CLAMP

CLAMP

CLAMP

TUBE,BREATHER,L=220

TUBE,BREATHER,BLUE,L=220

TUBE,5X10X500/350
