- Vulcan 900 Classic LT
Front Fork

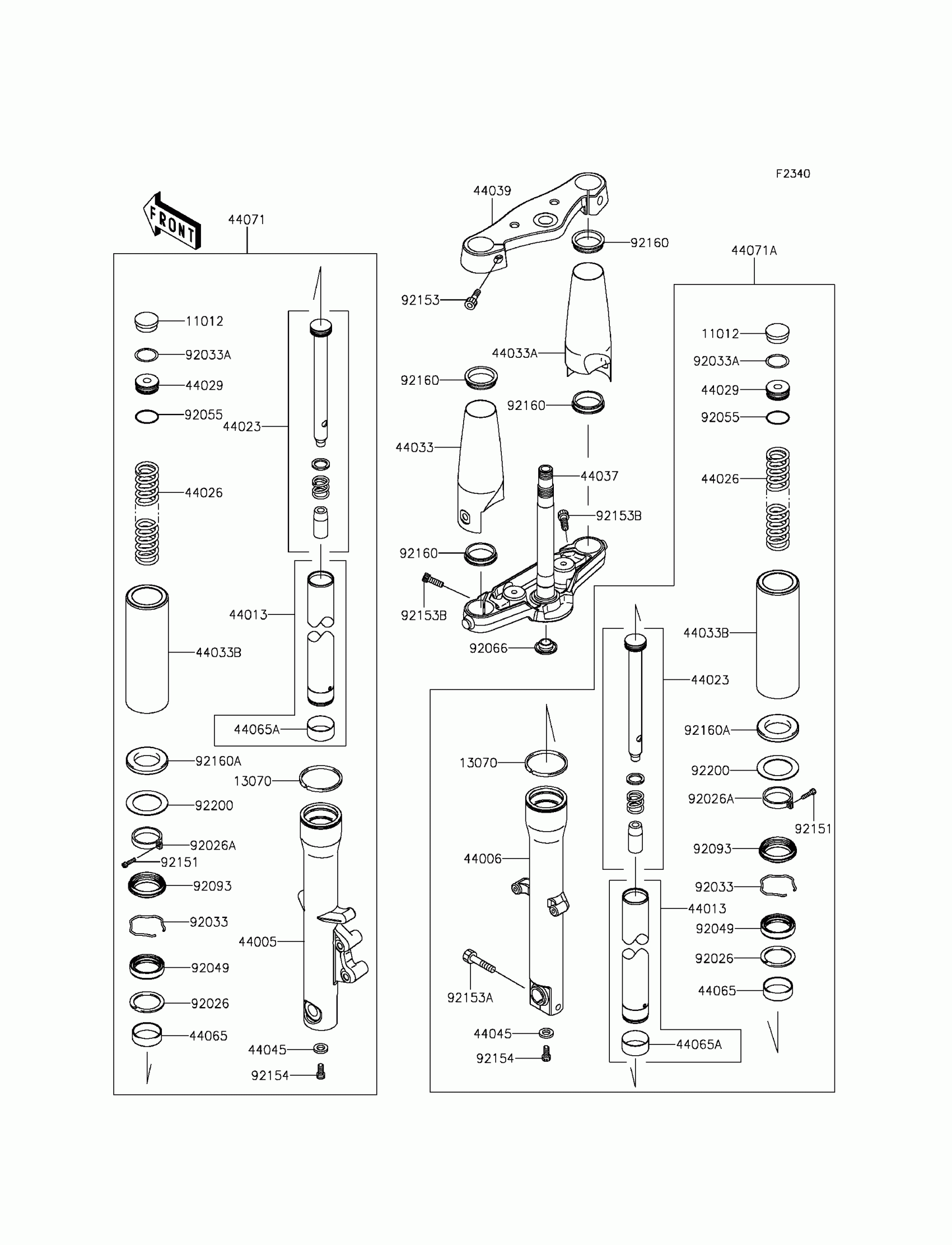

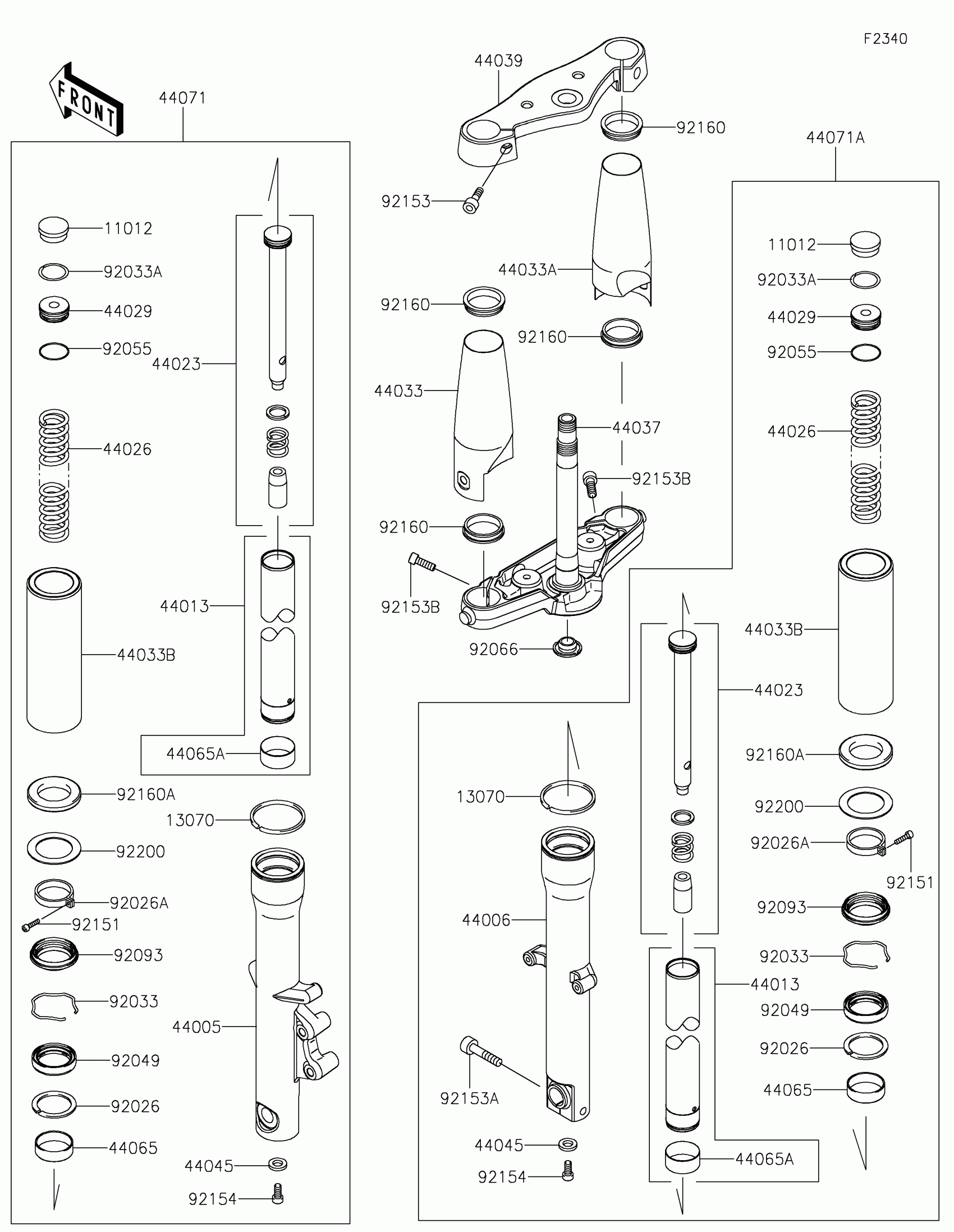

Kawasaki Vulcan 900 Classic LT Front Fork Diagram
#
Description
Price
11012
CAP,FORK TOP
11012-1618
$25.14
13070
GUIDE
13070-0056
$11.82
44005
PIPE-LEFT FORK OUTER
44005-0104
$372.75
44006
PIPE-RIGHT FORK OUTER
44006-0104
$376.51
44013
PIPE-FORK INNER
44013-0257
$314.28
44023
CYLINDER-SET-FORK
44023-0126
$87.83
44026
SPRING-FRONT FORK
44026-0190
$73.85
44029
SEAT-FORK SPRING
44029-0019
$30.76
44033
COVER-FORK,LH
44033-0035
$116.60
44033A
COVER-FORK,RH
44033-0037
$116.60
44033B
COVER-FORK
44033-0039
$116.46
44037
HOLDER-FORK UNDER,SILVER
44037-0068-CE
$354.83
44039
HOLDER-FORK UPPER
44039-0062
$316.71
44045
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
44065
BUSHING-FRONT FORK
44065-0019
$25.24
44065A
BUSHING-FRONT FORK,INNER PIPE
44065-1087
$30.09
44071
DAMPER-ASSY,FORK,LH
44071-1087
$653.75
44071A
DAMPER-ASSY,FORK,RH
44071-1088
$653.75
92026
SPACER,FORK
92026-0090
$20.70
92026A
SPACER
92026-1515
$15.83
92033
RING-SNAP
92033-0756
$6.51
92033A
RING-SNAP
92033-0757
$6.51
92049
SEAL-OIL
92049-0058
$25.22
92055
RING-O,SPRING SEAT
92055-1363
$7.34
92066
PLUG
92066-0078
$12.18
92093
SEAL,DUST
92093-0659
$25.59
92151
BOLT,SOCKET,4X16
92151-1356
$2.46
92153
BOLT,SOCKET,8X30
92153-0500
$10.86
92153A
BOLT
92153-0533
$10.86
92153B
BOLT,SOCKET,10X25
92153-1376
$4.65
92154
BOLT
92154-1677
$9.91
92160
DAMPER
92160-1892
$3.57
92160A
DAMPER
92160-1927
$7.91
92200
WASHER
92200-1417
$7.57
