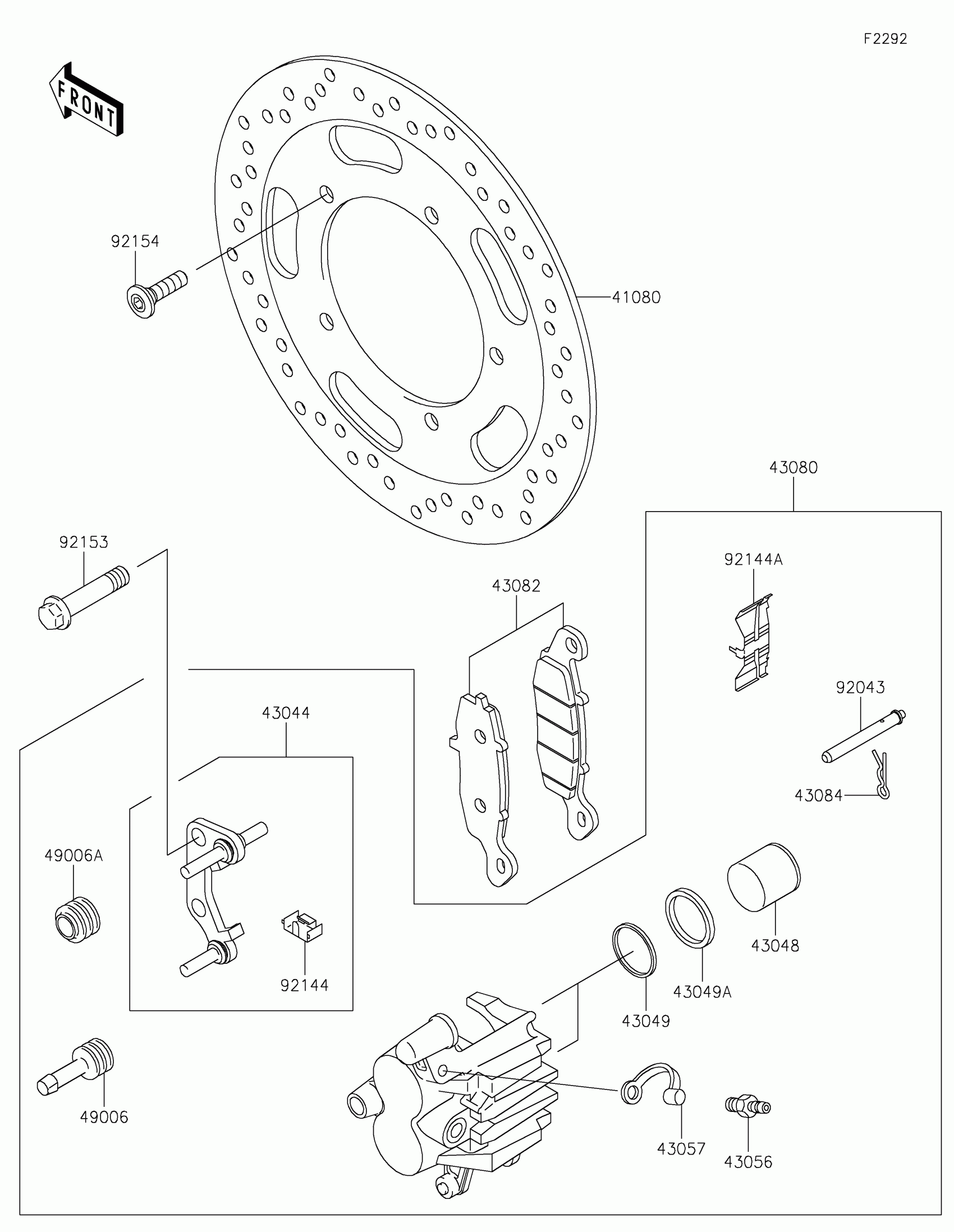

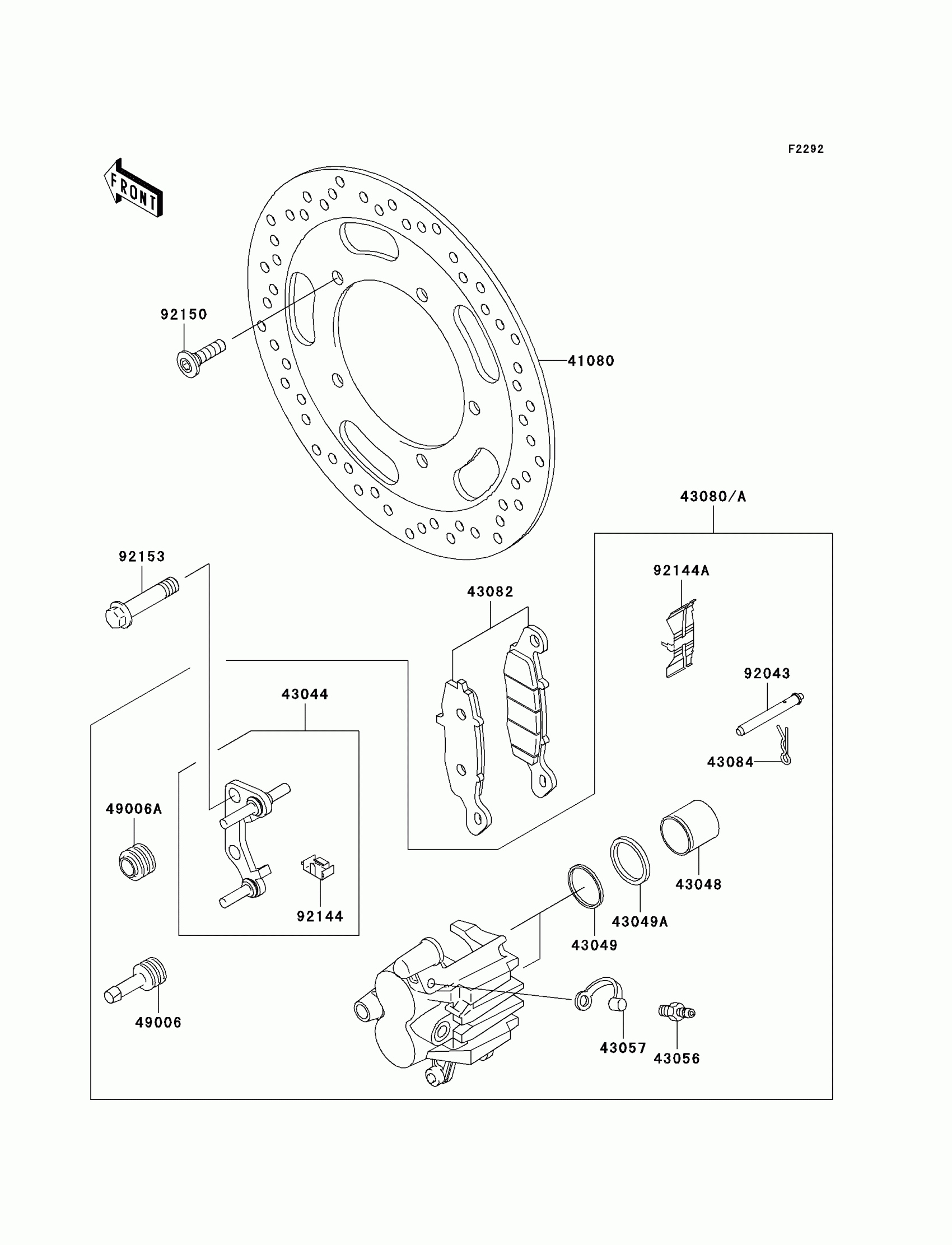

Kawasaki Vulcan 900 Classic LT Front Brake Diagram

Description

Price

41080

DISC,FR,SILVER

41080-0095-CM

$452.15

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1115

$148.83

43048

PISTON-CALIPER

43048-1052

$66.46

43049

PACKING,PISTON

43049-1055

$11.29

43049A

PACKING,PISTON SEAL

43049-1096

$12.42

43056

BREATHER-BRAKE

43056-0007

$23.79

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0076-DJ

$375.24

43082

PAD-ASSY-BRAKE,LH

43082-0009

$76.79

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1095

$7.27

92043

PIN,PAD

92043-1489

$6.57

92144

SPRING,STOPPER

92144-1831

$5.46

92144A

SPRING,PAD,LH

92144-1832

$26.35

92153

BOLT,FLANGED,10X47

92153-0740

$6.24

92154

BOLT,SOCKET,8X30

92154-1865

$4.69
