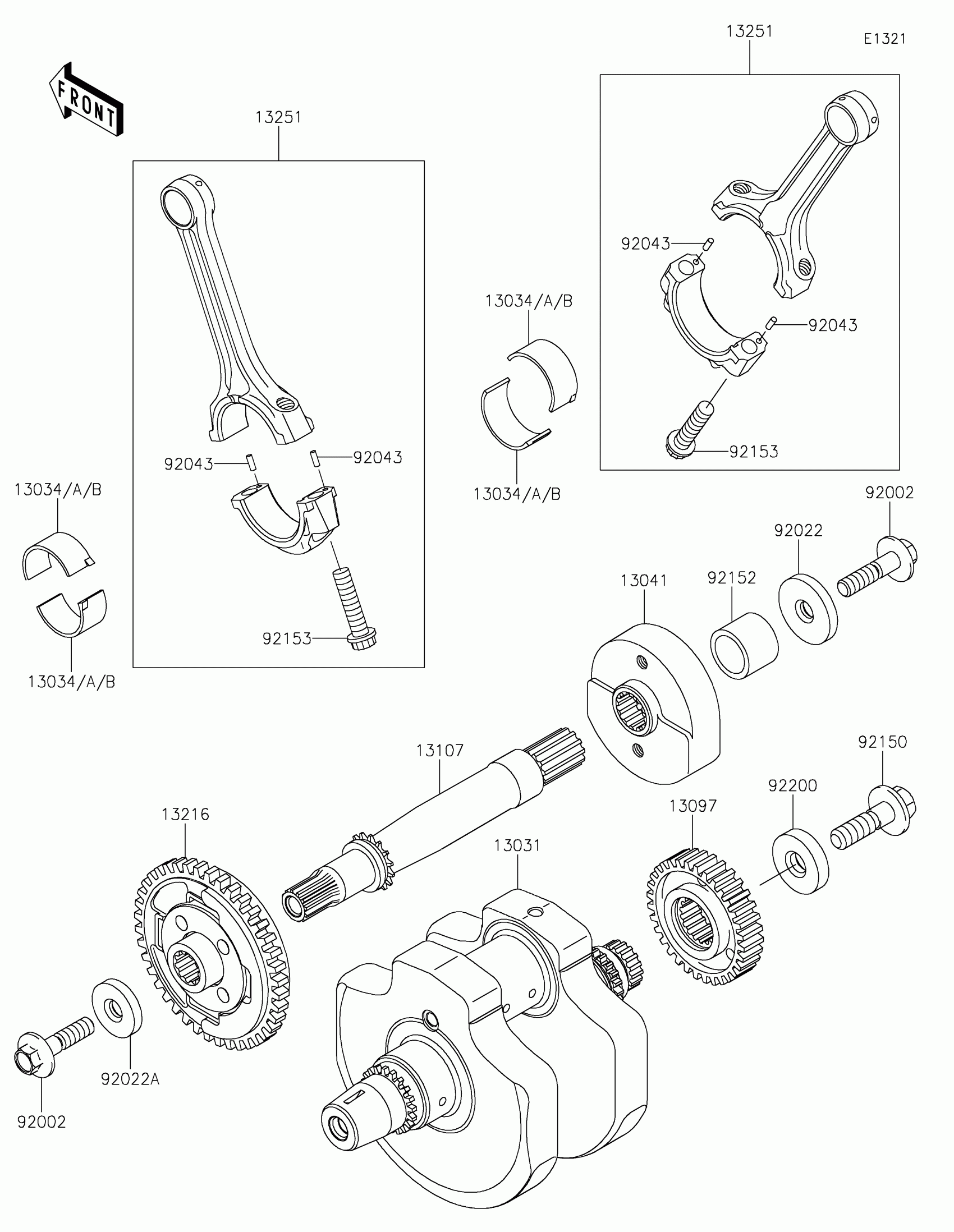

Kawasaki Vulcan 900 Classic LT Crankshaft Diagram

Description

Price

13031

CRANKSHAFT-COMP

13031-0058

$848.21

13034

METAL,CONNECTING ROD,BLUE

13034-1057

Unavailable

13034A

METAL,CONNECTING ROD,BLACK

13034-1058

Unavailable

13034B

METAL,CONNECTING ROD,BROWN

13034-1059

Unavailable

13041

BALANCER,RH

13041-0009

$147.40

13097

GEAR-PRIMARY SPUR,38T

13097-0050

$100.90

13107

SHAFT,BALANCER

13107-0115

$167.46

13216

GEAR-COMP,BALANCER,LH

13216-0016

$266.16

13251

ROD-ASSY-CONNECTING,J

13251-0016-JJ

$234.80

92002

BOLT,FLANGED,10X40

92002-1296

$10.65

92022

WASHER,10X40X6

92022-1905

$14.23

92022A

WASHER,10X33X6

92022-1906

$14.23

92043

PIN,3X8.5

92043-0033

$1.54

92150

BOLT,12X40

92150-1717

$11.39

92152

COLLAR,23X30X23

92152-0358

$20.37

92153

BOLT,CON-ROD,9X38

92153-1330

$9.98

92200

WASHER,12X36X8

92200-1249

$13.44
