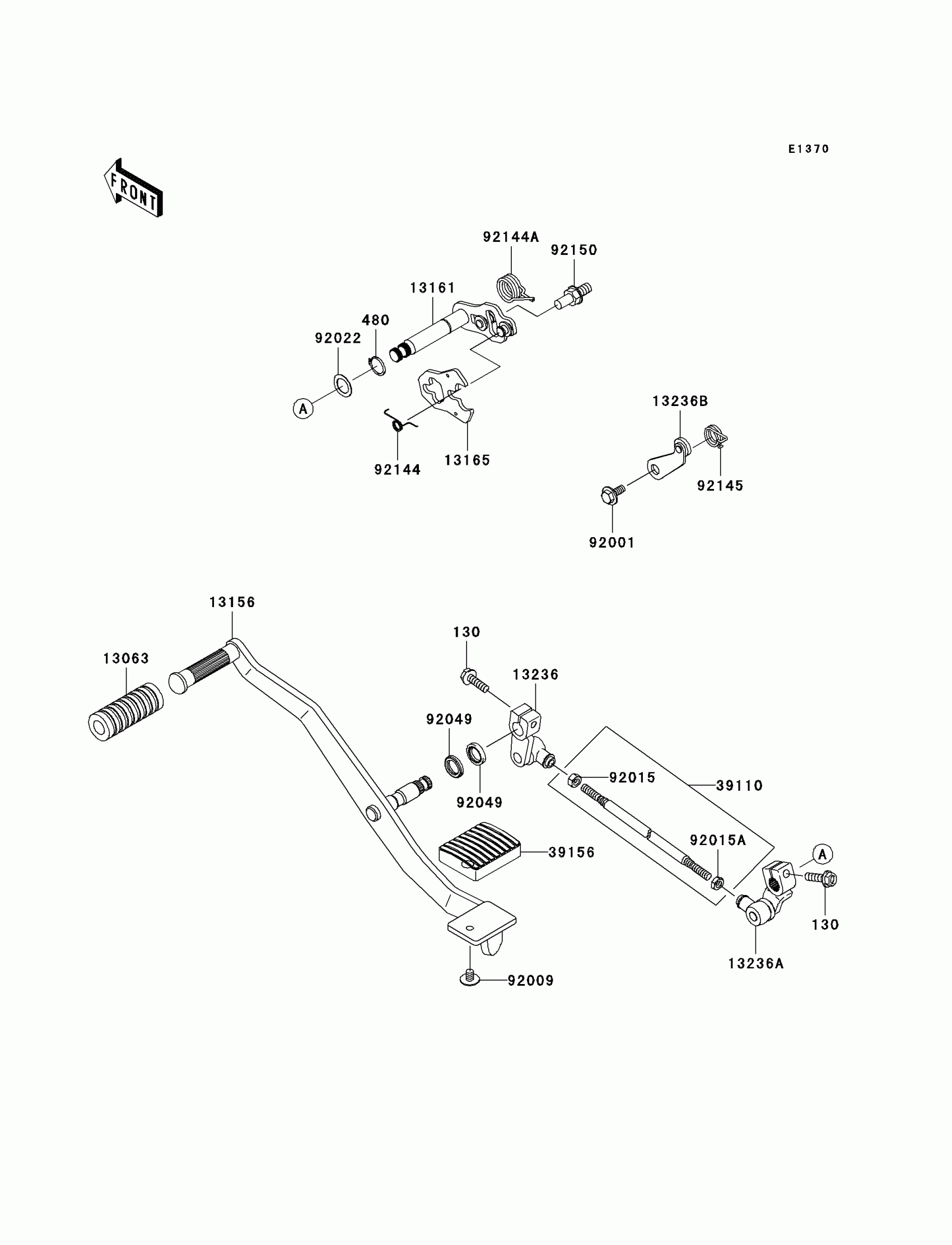

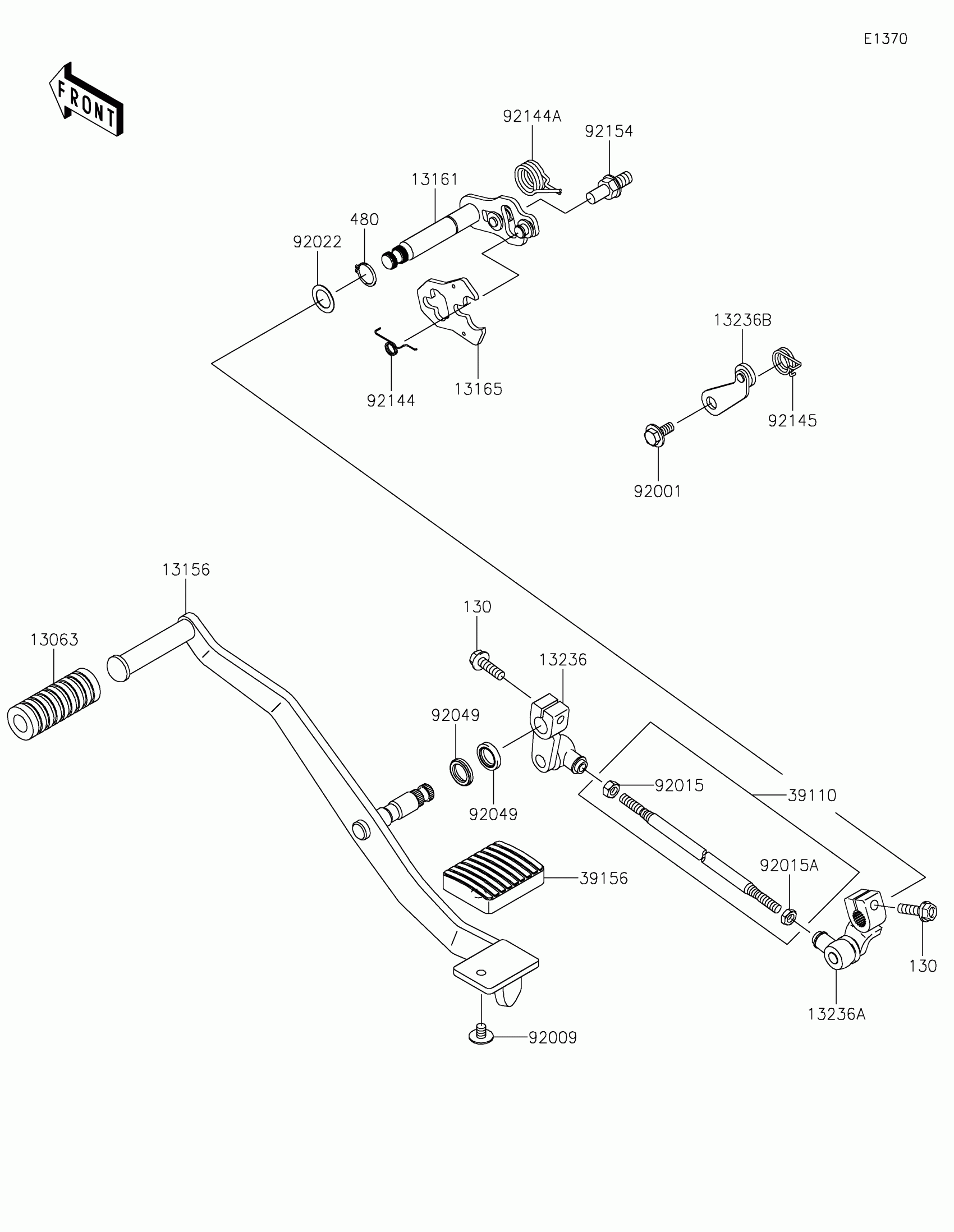

Kawasaki Vulcan® 900 Classic Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130CB0620

$5.84

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

13063

DAMPER,PEDAL

13063-002

$3.44

13156

LEVER-CHANGE

13156-0063

$127.06

13161

LEVER-COMP-CHANGE SHAFT

13161-0046

$69.44

13165

PAWL,CHANGE LEVER

13165-1151

$13.39

13236

LEVER-COMP

13236-0100

$44.78

13236A

LEVER-COMP

13236-0119

$47.82

13236B

LEVER-COMP,POSITION

13236-1126

$12.95

39110

ROD-ASSY-TIE

39110-1124

$14.71

39156

PAD

39156-1641

$8.88

92001

BOLT,FLANGED,6X14

92001-1715

$10.25

92009

SCREW,6X8

92009-1677

$3.29

92015

NUT,6MM

92015-1443

$2.99

92015A

NUT,LEFT HANDED,6MM

92015-1444

$3.57

92022

WASHER,13.2X20X0.5

92022-1224

$3.29

92049

SEAL-OIL,VB13193

92049-1398

$4.67

92144

SPRING

92144-1029

$5.93

92144A

SPRING,CHANGE PEDAL RETURN

92144-1074

$7.18

92145

SPRING,RETURN

92145-0462

$7.22

92150

BOLT,RETURN SPRING

92150-1869

$8.37
