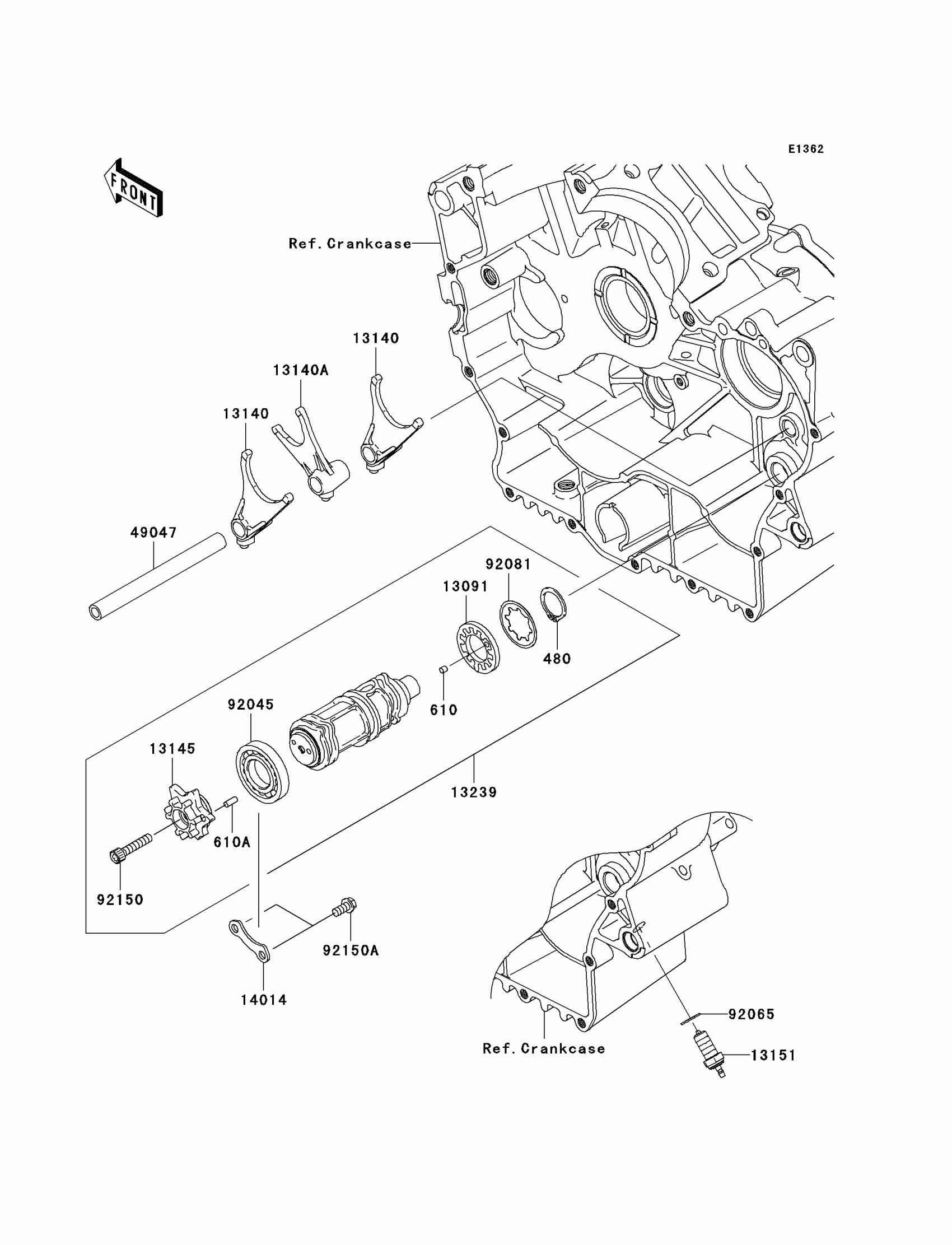

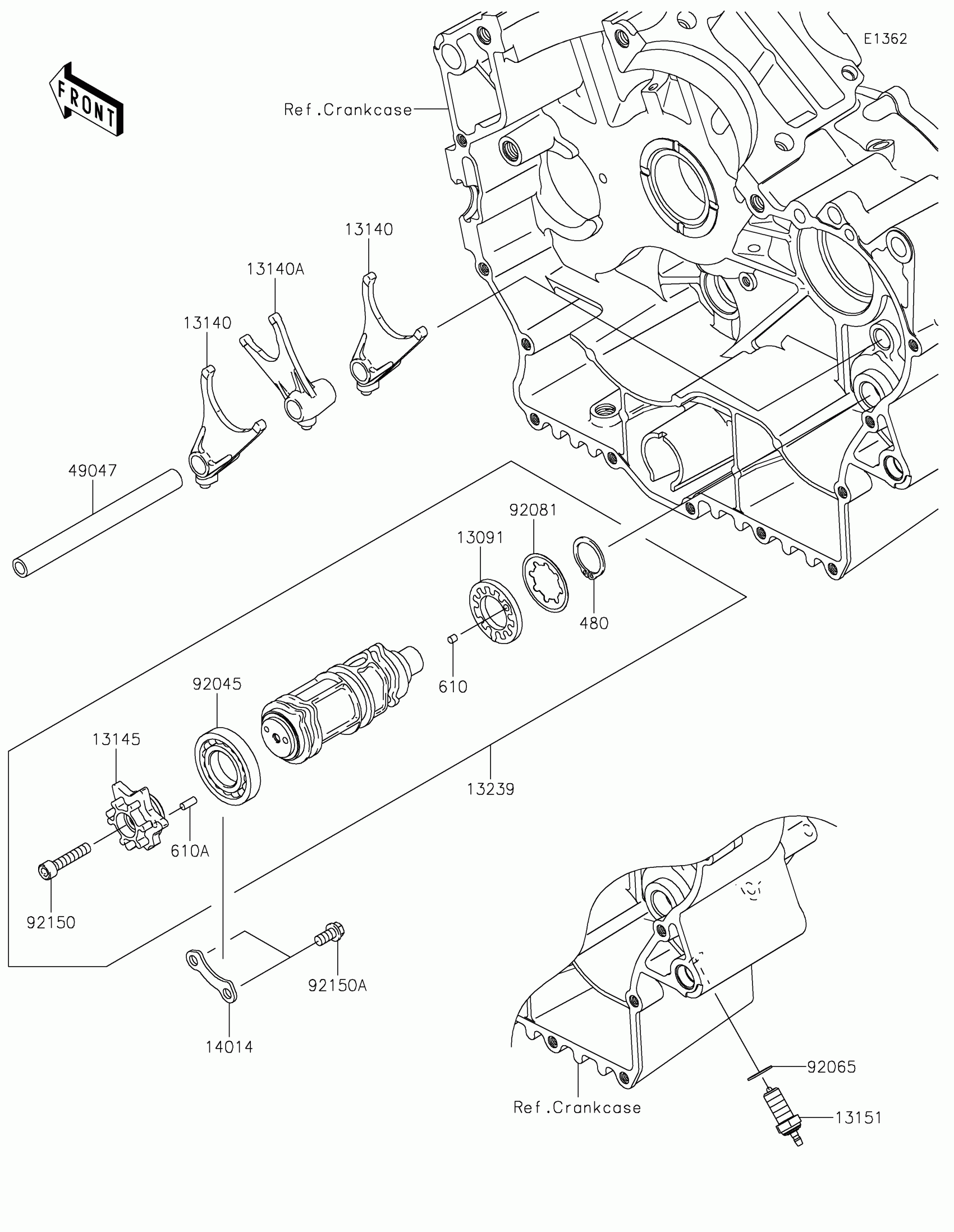

Kawasaki Vulcan® 900 Classic Gear Change Drum/Shift Fork(s) Diagram

Description

Price

480

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

610

ROLLER,4X4

610A0404

$4.69

610A

ROLLER,4X10

610A0410

$4.31

13091

HOLDER,CHANGE DRUM

13091-1389

$23.25

13140

FORK-SHIFT

13140-0031

$63.70

13140A

FORK-SHIFT

13140-1138

$97.83

13145

CAM-CHANGE DRUM

13145-0028

$45.89

13151

SWITCH-COMP

13151-1085

$24.19

13239

DRUM-ASSY-CHANGE

13239-0018

$157.61

14014

PLATE-POSITION

14014-1014

$4.69

49047

ROD-SHIFT

49047-0036

$29.32

92045

BEARING-BALL,16005Z

92045-1030

Unavailable

92065

GASKET,10.5X16X1

92065-058

$3.96

92081

SPRING

92081-1895

$9.20

92150

BOLT,SOCKET,6X30

92150-1433

$4.87

92150A

BOLT,6X12

92150-1868

$3.32
