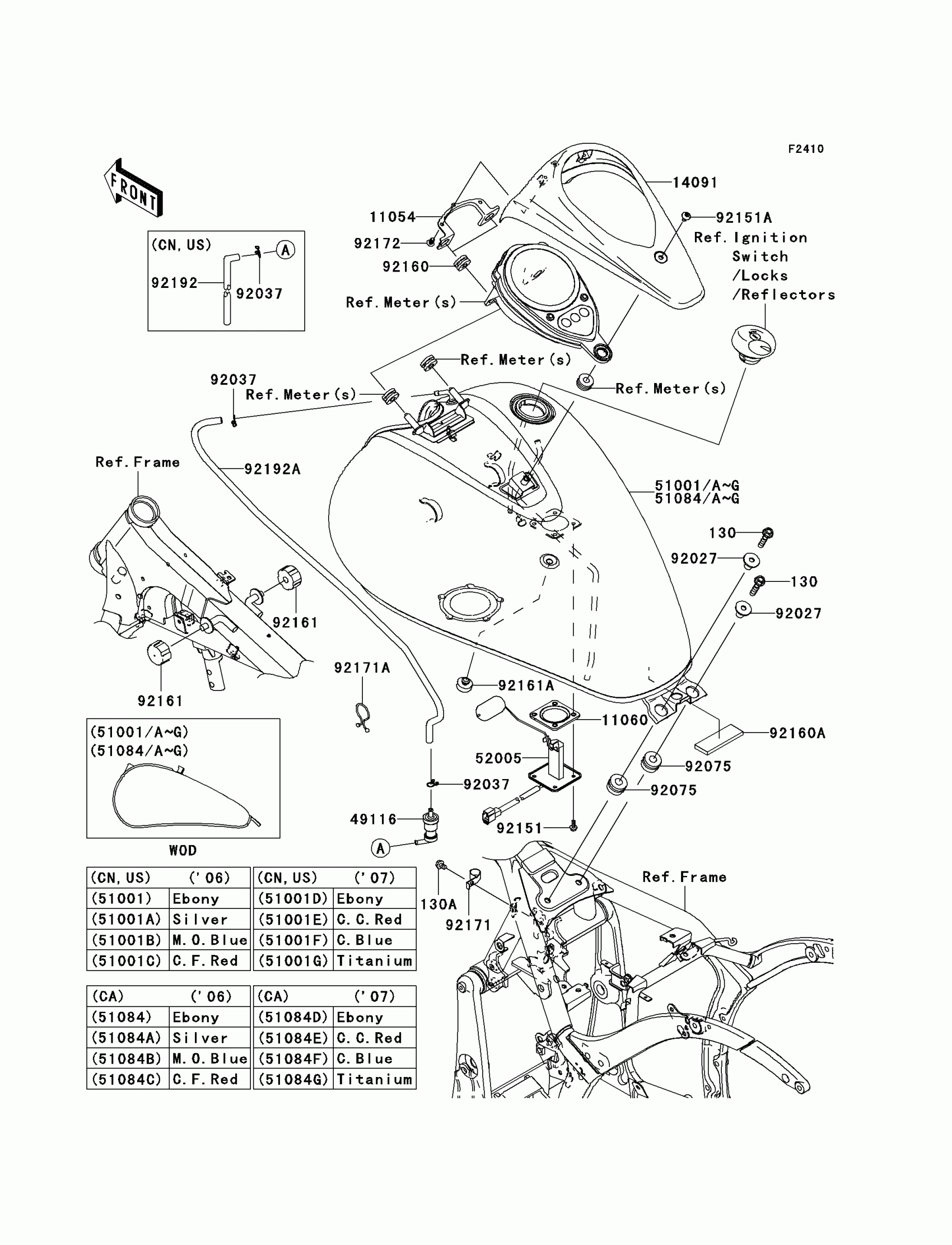

Kawasaki Vulcan 900 Classic Fuel Tank(B6F/B7F) Diagram

#

Description
Price

11054

BRACKET,METER,FR

11054-0034

$12.95

11060

GASKET,FUEL GAUGE

11060-1952

$17.15

14091

COVER,METER

14091-0516

$125.75

49116

VALVE-ASSY,CHECK

49116-0014

$47.25

130

BOLT-FLANGED,8X30

130BA0830

$1.44

130A

BOLT-FLANGED,6X10

130BB0610

$1.77

52005

GAUGE,FUEL

52005-0020

$106.98

92027

COLLAR,L=19.3

92027-1780

$4.93

92075

DAMPER

92075-1736

$4.93

92151

BOLT,5X12

92151-1599

$1.23

92151A

BOLT,SOCKET,6X12

92151-1940

$2.84

92160

DAMPER

92160-1162

$3.81

92160A

DAMPER

92160-1323

$3.13

92161

DAMPER,FUEL TANK

92161-0293

$5.98

92161A

DAMPER

92161-1065

$2.84

92171

CLAMP

92171-0595

$4.95

92171A

CLAMP

92171-1185

$2.03

92172

SCREW,TAPPING,5X14

92172-0006

$1.98

92192A

TUBE,FUEL TANK-VALVE

92192-0303

$18.41

51001D

TANK-COMP-FUEL,EBONY

51001-0146-H8

$1,219.12

51001E

TANK-COMP-FUEL,C.C.RED

51001-0146-L1

Unavailable

51001F

TANK-COMP-FUEL,C.BLUE

51001-0146-17Q

$1,030.72

51001G

TANK-COMP-FUEL,M.TITANIUM

51001-0146-740

Unavailable

51084D

TANK-COMP-FUEL,EBONY

51084-5406-H8

$1,080.23

51084E

TANK-COMP-FUEL,C.C.RED

51084-5406-L1

Unavailable

51084F

TANK-COMP-FUEL,C.BLUE

51084-5406-17Q

Unavailable

51084G

TANK-COMP-FUEL,M.TITANIUM

51084-5406-740

Unavailable

92037

CLAMP,TUBE

92037-147

$5.61

92037

CLAMP,TUBE

92037-147

$5.61

92192

TUBE,TANK-SEPARATOR,BLUE

92192-0215

$9.89
