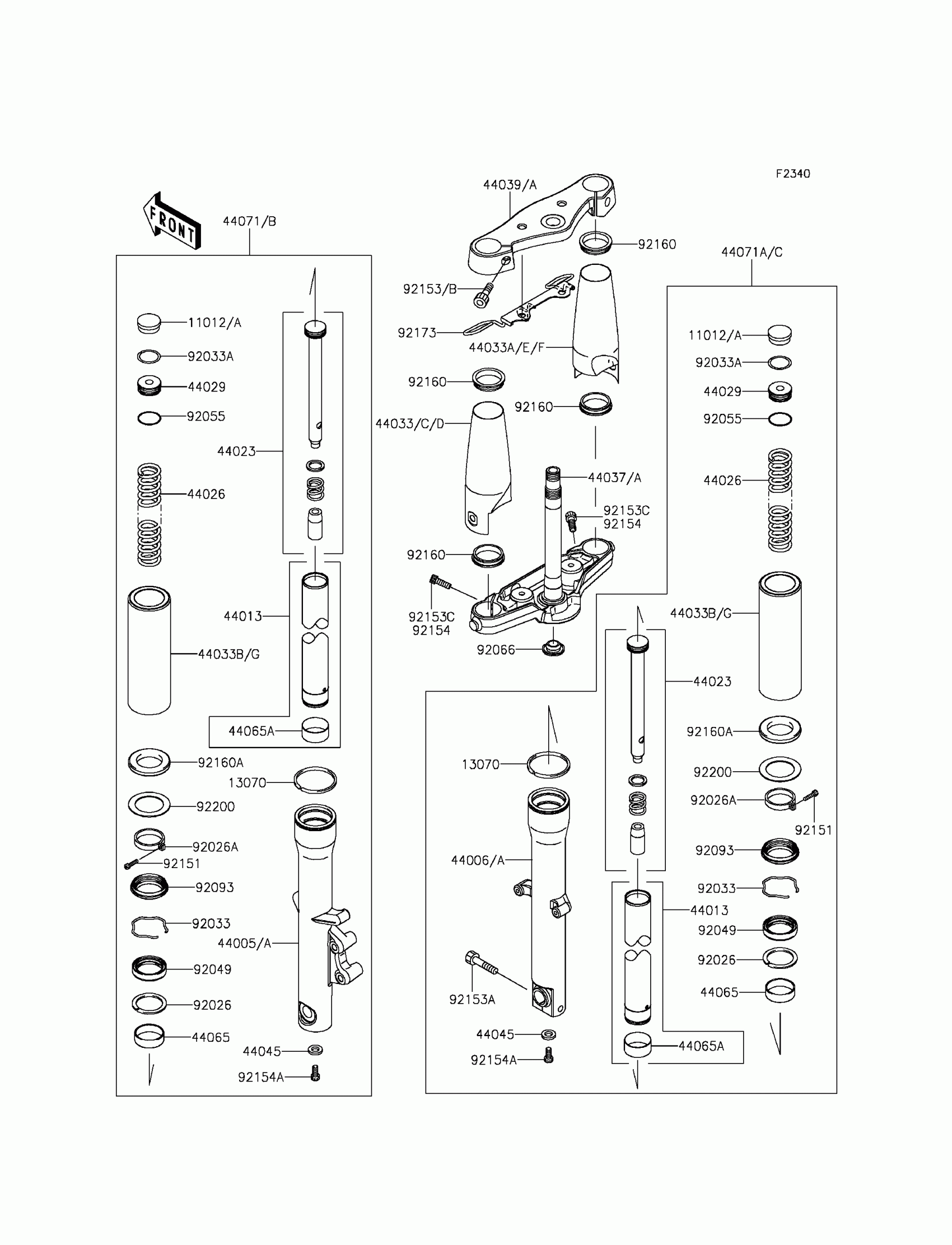

Kawasaki Vulcan 900 Classic Front Fork Diagram

#

Description
Price

11012

CAP,FORK TOP

11012-1561

$17.74

13070

GUIDE

13070-0056

$11.82

44005

PIPE-LEFT FORK OUTER

44005-0105

$377.28

44006

PIPE-RIGHT FORK OUTER

44006-0105

$377.28

44013

PIPE-FORK INNER

44013-0257

$314.28

44023

CYLINDER-SET-FORK

44023-0126

$87.83

44026

SPRING-FRONT FORK

44026-0190

$73.85

44029

SEAT-FORK SPRING

44029-0019

$30.76

44033

COVER-FORK,LH,F.S.BLACK

44033-0069-18R

Unavailable

44033A

COVER-FORK,RH,F.S.BLACK

44033-0070-18R

Unavailable

44033B

COVER-FORK,F.S.BLACK

44033-0071-18R

$117.01

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0068-18R

$354.83

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0087-18R

$321.22

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK

44065-0019

$25.24

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1087

$30.09

44071

DAMPER-ASSY,FORK,LH

44071-1089

$653.75

44071A

DAMPER-ASSY,FORK,RH

44071-1090

$653.75

92026

SPACER,FORK

92026-0090

$20.70

92026A

SPACER

92026-1515

$15.83

92033

RING-SNAP

92033-0756

$6.51

92033A

RING-SNAP

92033-0757

$6.51

92049

SEAL-OIL

92049-0058

$25.22

92055

RING-O,SPRING SEAT

92055-1363

$7.34

92066

PLUG

92066-0078

$12.18

92093

SEAL,DUST

92093-0659

$25.59

92151

BOLT,SOCKET,4X16

92151-1356

$2.46

92153

BOLT

92153-0533

$10.86

92153A

BOLT,SOCKET,8X30

92153-0712

$3.94

92154

BOLT,SOCKET,10X25

92154-0252

$4.45

92154A

BOLT

92154-1677

$9.91

92160

DAMPER

92160-1892

$3.57

92160A

DAMPER

92160-1927

$7.91

92173

CLAMP

92173-0165

$40.66

92200

WASHER

92200-1417

$7.57
