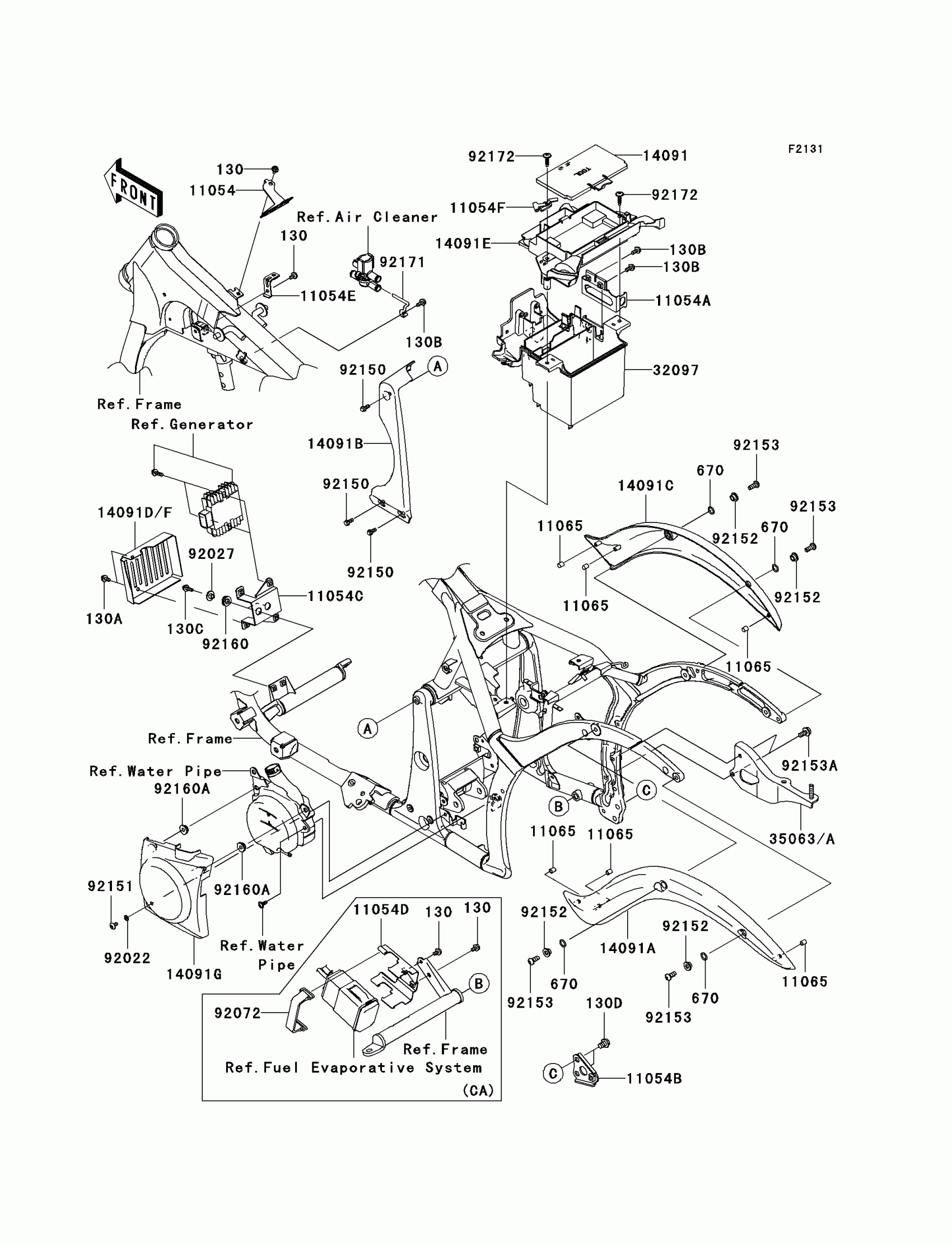

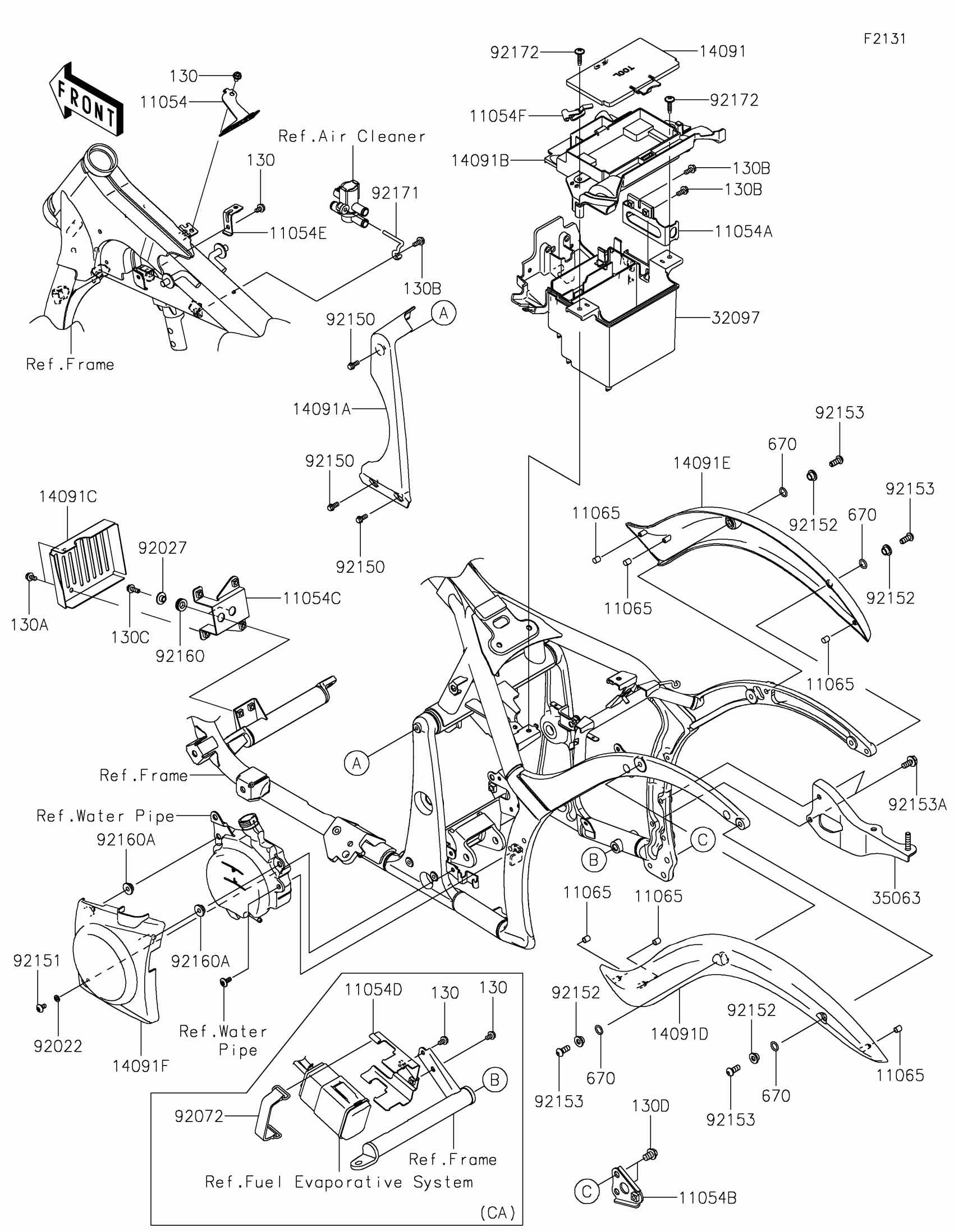

Kawasaki Vulcan® 900 Classic Frame Fittings Diagram

#

Description
Price

130A

BOLT-FLANGED,6X12

130BB0612

$2.34

130B

BOLT-FLANGED,6X14

130BB0614

$2.49

130C

BOLT-FLANGED,6X20

130BB0620

$0.46

130D

BOLT-FLANGED,10X14

130BB1014

$2.49

11054

BRACKET,FRONT COUPLER

11054-0119

$27.22

11054A

BRACKET,RELAY BOX

11054-0120

$18.57

11054B

BRACKET,MUFFLER

11054-0122

$10.30

11054C

BRACKET,REGULATOR

11054-0124

$22.01

11054E

BRACKET,BOOST SENSOR

11054-0736

$7.75

11054F

BRACKET,HELMET LOCK

11054-0738

$20.37

11065

CAP

11065-0156

$2.13

14091

COVER,TOOL CASE

14091-0520

$7.69

14091A

COVER,FENDER,LH

14091-0521

$85.83

14091B

COVER,PIVOT

14091-0526

$11.82

14091C

COVER,FENDER,RH

14091-0638

$85.83

14091E

COVER,BATTERY CASE&TOOL CASE

14091-0733

$26.91

14091F

COVER,REGULATOR

14091-0836

$20.83

14091G

COVER,RESERVOIR TANK

14091-1628

$67.81

32097

CASE-BATTERY

32097-0021

$53.44

35063A

STAY,MUFFLER,F.S.BLACK

35063-0342-18R

$83.13

92022

WASHER-PLAIN

92022-183

$3.92

92027

COLLAR,L=7.4

92027-1848

$4.69

92150

BOLT,FLANGED,6X14

92150-1689

$3.94

92151

BOLT,SOCKET,6X12

92151-1940

$3.74

92152

COLLAR

92152-0381

$5.65

92153

BOLT,SOCKET,8X20

92153-0912

$2.61

92153A

BOLT,FLANGED,8X20

92153-1704

$2.97

92160

DAMPER

92160-1278

$4.39

92160A

DAMPER

92160-1613

$3.74

92171

CLAMP

92171-0600

$7.75

92172

SCREW,6X26

92172-0137

$4.69

670

O RING,12MM

670B2012

$3.23

130

BOLT-FLANGED,6X10

130BB0610

$2.49

130

BOLT-FLANGED,6X10

130BB0610

$2.49

11054D

BRACKET,CANISTER

11054-0147

$20.37

92072

BAND

92072-1384

$13.75
