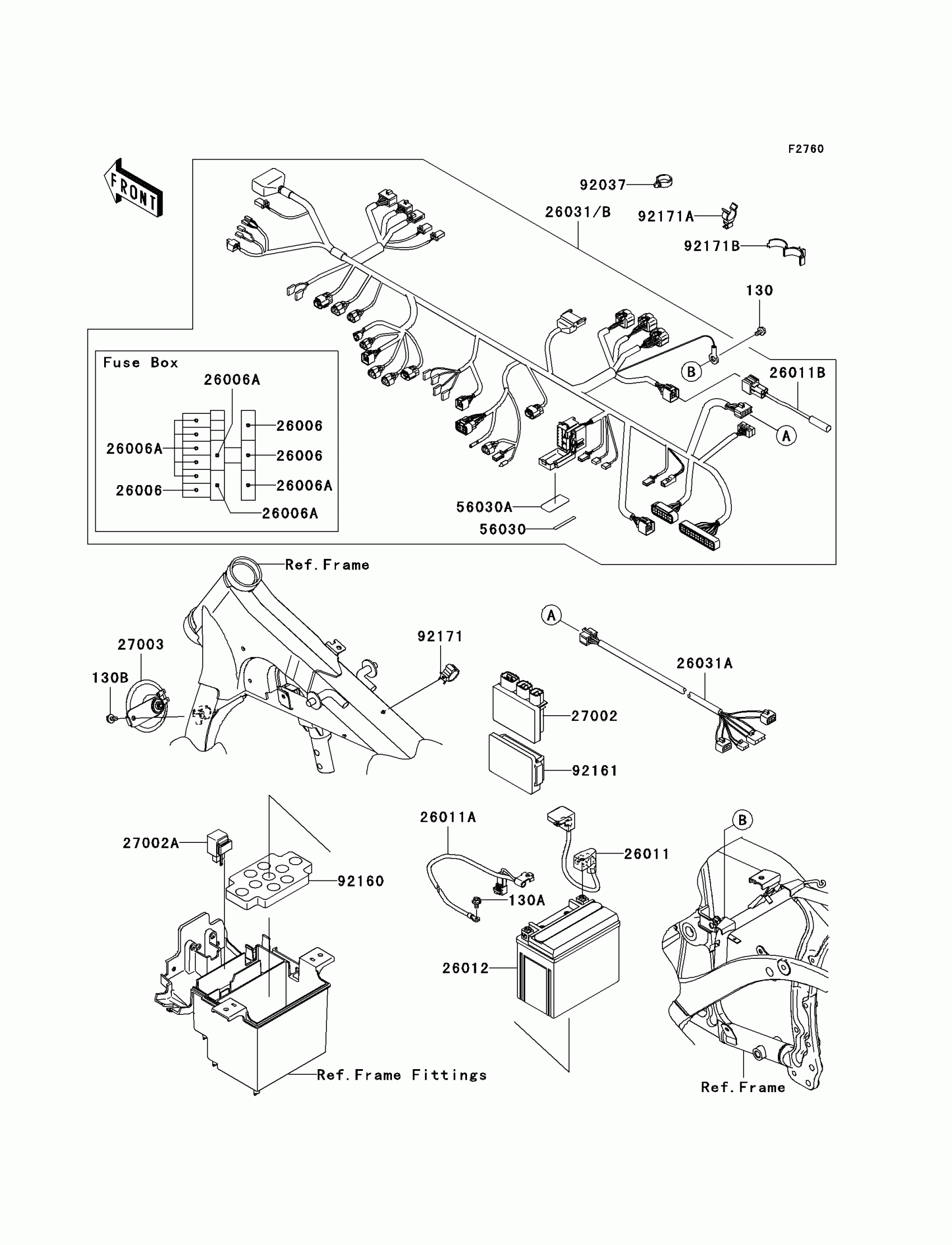

Kawasaki Vulcan 900 Classic Chassis Electrical Equipment Diagram

Description

Price

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD,BATTERY(+)

26011-0089

$46.79

26011A

WIRE-LEAD,BATTERY(-)

26011-0090

$31.86

26011B

WIRE-LEAD,CAP

26011-0271

$14.74

26012

BATTERY,YTX12-BS,12V 10AH

26012-1514

$119.64

26031

HARNESS,RR

26031-2233

$63.70

26031A

HARNESS,MAIN

26031-2234

$624.83

27002

RELAY-ASSY

27002-0050

$143.14

27002A

RELAY-ASSY,TURN SIGNAL

27002-1101

$72.36

27003

HORN

27003-0039

$63.70

56030

LABEL,FUSE BOX

56030-0016

$6.12

56030A

LABEL,FUSE BOX

56030-0046

$5.87

92037

CLAMP,HOSE

92037-1827

$7.45

92160

DAMPER,BATTERY

92160-1635

$28.40

92161

DAMPER,RELAY BOX

92161-0203

$10.37

92171

CLAMP,20MM DIA.

92171-0081

$4.18

92171A

CLAMP,CABLE

92171-0347

$5.57

92171B

CLAMP,10MM DIA.

92171-1423

$4.18

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X10

130BB0610

$2.49

130B

BOLT-FLANGED,6X12

130BB0612

$2.34
