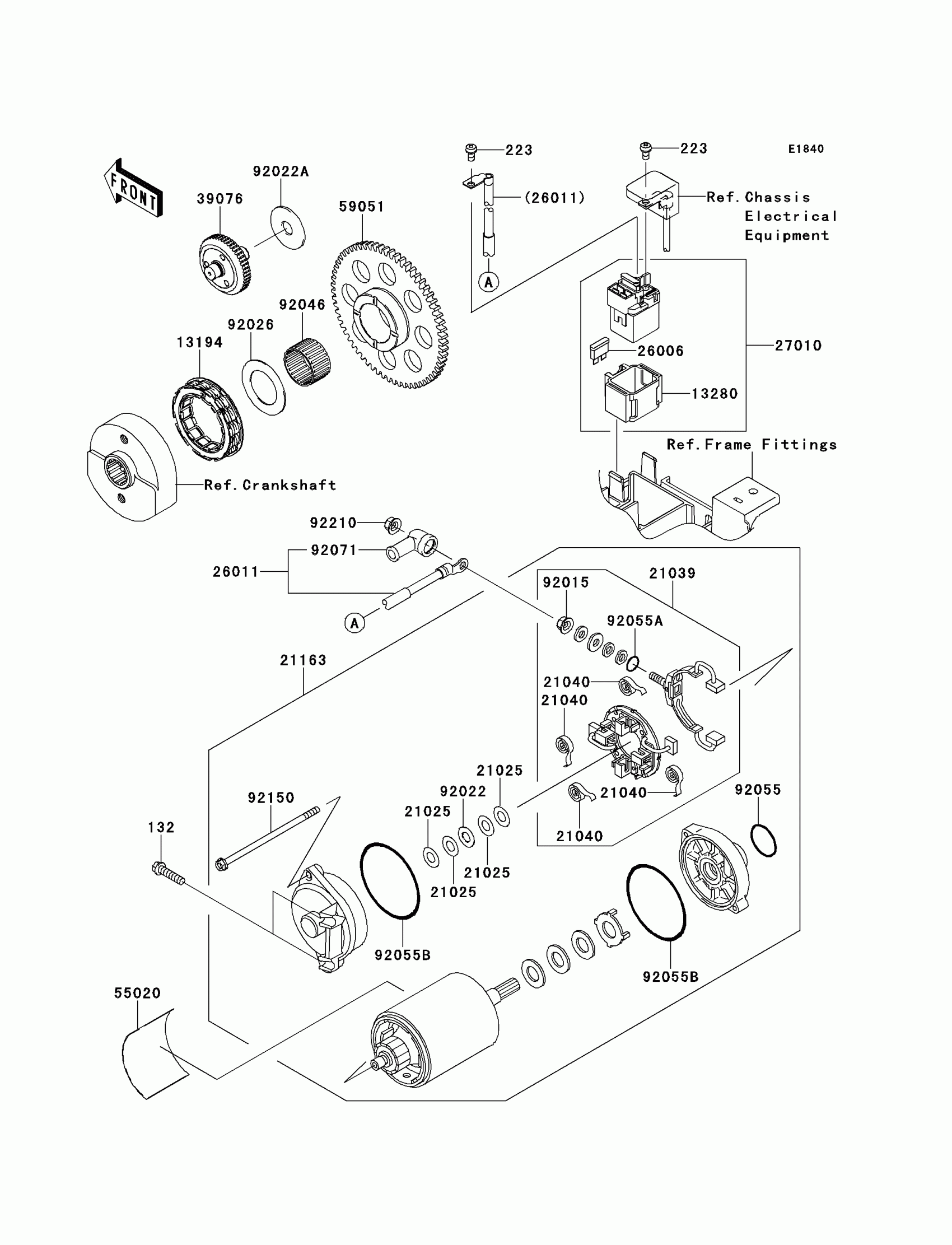

Kawasaki VULCAN 900 CLASSIC (Canadian) Starter Motor Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

223

SCREW-PAN-WS-CROS,5X10

223AA0510

$0.43

13194

CLUTCH-ONEWAY

13194-0009

$156.79

13280

HOLDER

13280-1263

$13.72

21025

WASHER,9.1X18X0.2

21025-011

Unavailable

21039

BRUSH,CARBON

21039-1060

$84.32

21040

SPRING-BRUSH

21040-1055

$8.42

21163

STARTER-ELECTRIC

21163-0066

$610.49

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26011

WIRE-LEAD,STARTER MOTOR

26011-0126

$63.70

27010

SWITCH,MAGNETIC

27010-1446

$136.50

39076

LIMITER

39076-0008

$128.14

55020

GUARD,STARTER MOTER

55020-1589

$7.20

59051

GEAR-SPUR,63T

59051-0060

$121.74

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.8

92022-1132

$6.22

92022A

WASHER,12.3X38X2.0

92022-1664

$7.34

92026

SPACER,31X49.5X1.2

92026-1490

$10.65

92046

BEARING-NEEDLE,K30X35X20

92046-1171

$22.53

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92071

GROMMET

92071-0024

$10.21

92150

BOLT,STARTER MOTOR

92150-1572

$9.73

92210

NUT,6MM

92210-0188

$2.15
