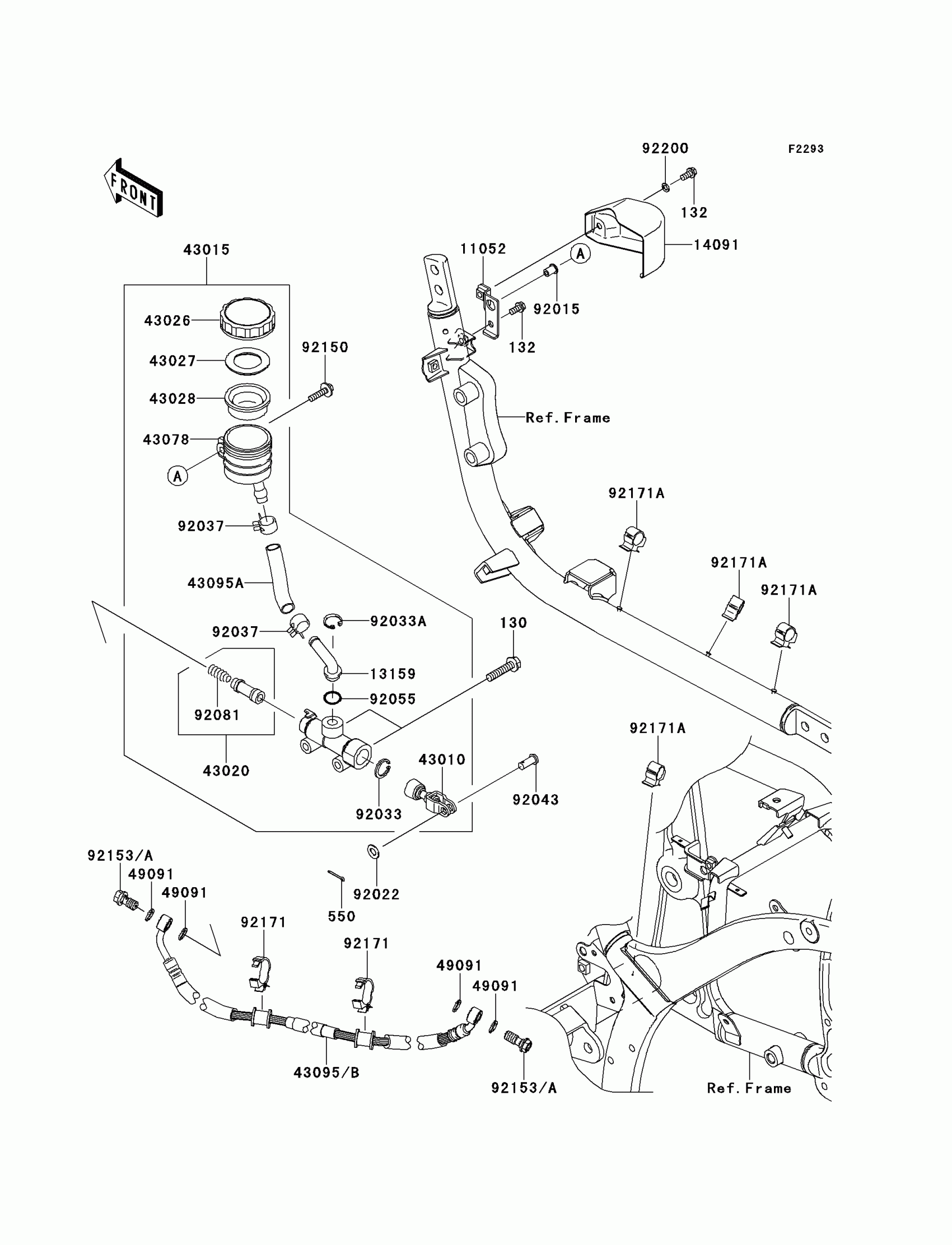

Kawasaki VULCAN 900 CLASSIC (Canadian) Rear Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,8X35

130BB0835

$4.45

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

550

PIN-COTTER,2.0X15

550AA2015

$1.12

11052

BRACKET,RESERVOIR TANK

11052-1305

$9.43

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

14091

COVER,RESERVOIR TANK,F.S.BLACK

14091-0536-18R

$70.03

43010

ROD-ASSY-BRAKE

43010-1062

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-0081

$260.14

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43078

RESERVOIR,RR MASTER CYLINDER

43078-1178

$26.19

43095A

HOSE-BRAKE,RR MASTER CYLINDER

43095-0306

$16.18

43095B

HOSE-BRAKE,RR

43095-0682

$126.87

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92015

NUT

92015-1700

$8.58

92022

WASHER,8.5X16X1.2

92022-1582

$0.96

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP,BRAKE HOSE

92037-1547

$12.35

92043

PIN,8X16

92043-1013

$9.91

92055

RING-O,14.8X2.4

92055-0741

$3.71

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92150

BOLT,6X25

92150-1829

$4.31

92153A

BOLT,OIL,L=23

92153-1419

$3.90

92171

CLAMP

92171-0782

$3.90

92171A

CLAMP,DIA=15

92171-1424

$4.18

92200

WASHER,6.2X10X1

92200-1465

$1.59
