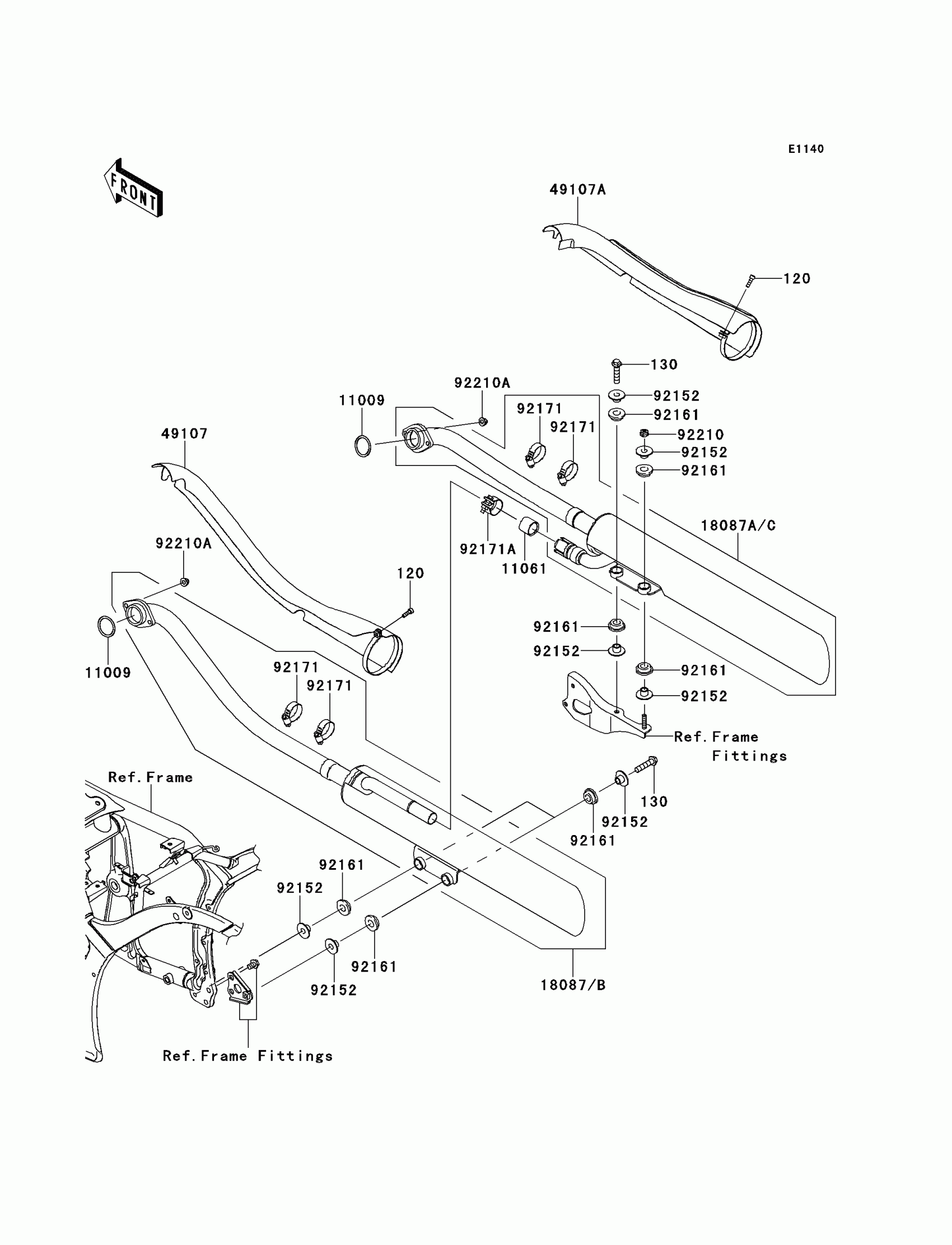

Kawasaki VULCAN 900 CLASSIC (Canadian) Muffler(s) Diagram

Description

Price

120

BOLT-SOCKET,6X20

120CC0620

$1.78

130

BOLT-FLANGED,8X35

130BB0835

$4.45

11009

GASKET,EXHAUST PIPE HOLDER

11009-1856

$5.66

11061

GASKET,MUFFLER JOINT

11061-0207

$27.58

18087B

MUFFLER,FR

18087-0281

$937.38

18087C

MUFFLER,RR

18087-0282

$937.38

49107

COVER-EXHAUST PIPE,FR

49107-0087

$321.83

49107A

COVER-EXHAUST PIPE,RR

49107-0106

$321.83

92152

COLLAR,8.8X12X10.6

92152-0082

$11.59

92161

DAMPER

92161-0135

$3.44

92171

CLAMP

92171-0059

$7.98

92171A

CLAMP

92171-0593

$16.97

92210

NUT,FLANGED,8MM

92210-0004

$5.38

92210A

NUT,CAP,8MM

92210-1132

$4.18
