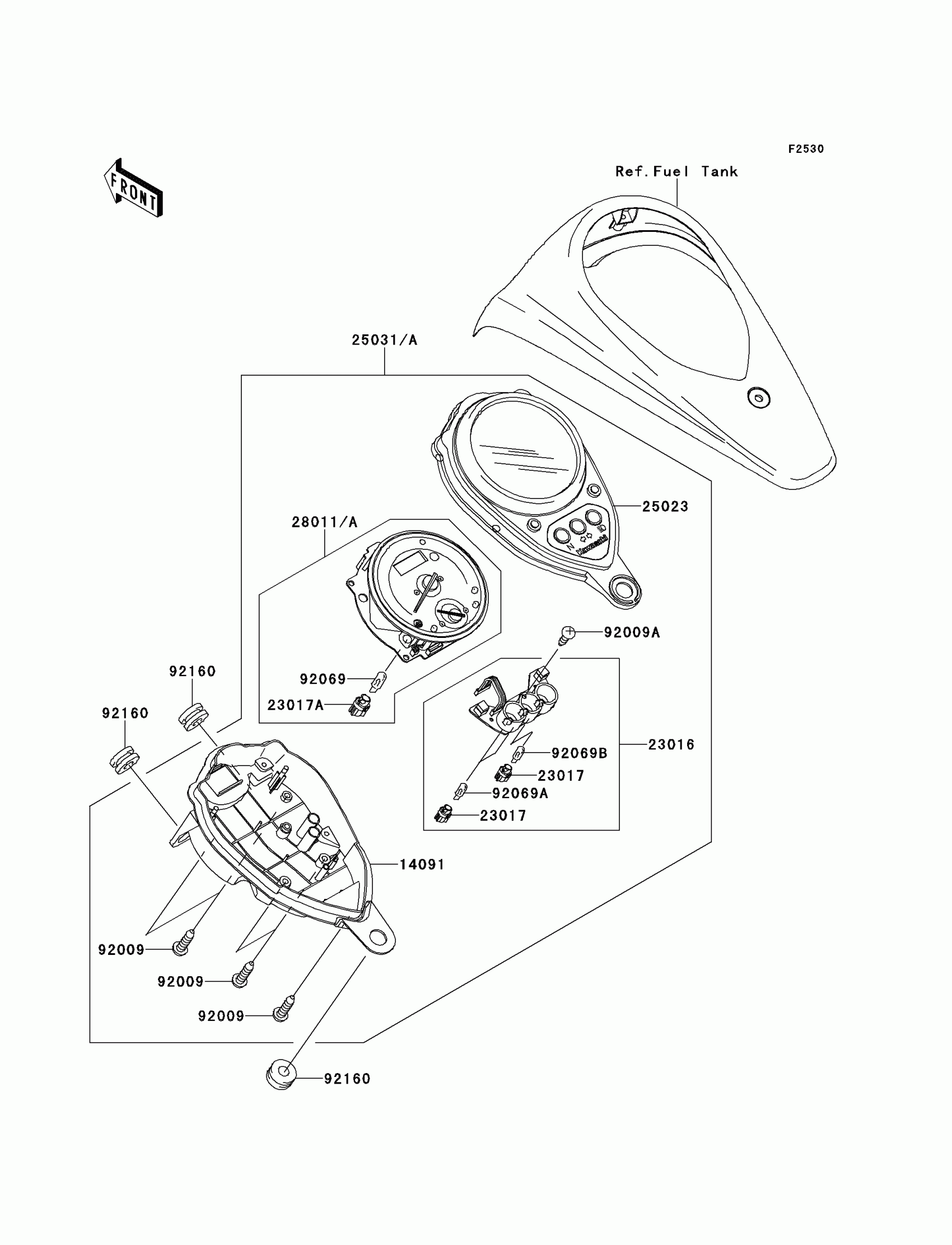

Kawasaki VULCAN 900 CLASSIC (Canadian) Meter(s) Diagram

Description

Price

14091

COVER,METER,LWR

14091-1215

$65.58

23016

LAMP-ASSY

23016-1186

$78.10

23017

SOCKET,WEDGE BASE,T-5

23017-1063

$4.14

23017A

SOCKET

23017-1064

$5.95

25023

COVER-METER CASE,UPP

25023-0057

$163.77

92009

SCREW,TAPPING,4X16

92009-1163

$4.10

92009A

SCREW,TAPPING,4X14

92009-1503

$3.65

92069

BULB,14V 3W,T6.5

92069-1068

$5.00

92069A

BULB,12V 2W,T5

92069-1105

$4.56

92069B

BULB,12V 1.4W,T5

92069-1117

$4.43

92160

DAMPER

92160-1162

$5.00

25031

METER-ASSY,MPH

25031-0321

$729.72

25031A

METER-ASSY,KPH

25031-0323

Unavailable

28011

METER,SPEED&FUEL,MPH

28011-0147

$531.25

28011A

METER,SPEED&FUEL,KPH

28011-0168

Unavailable
