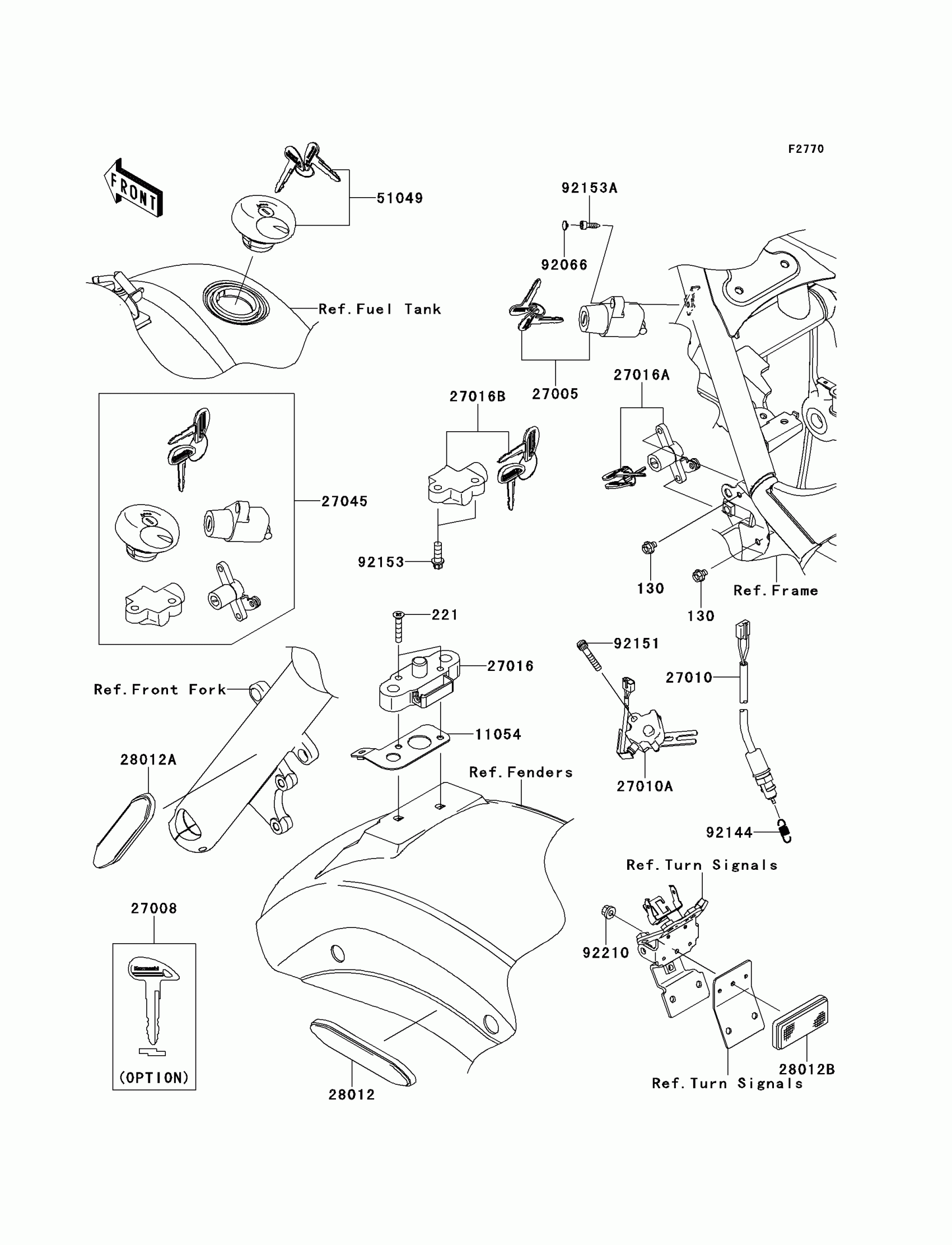

Kawasaki VULCAN 900 CLASSIC (Canadian) Ignition Switch/Locks/Reflectors Diagram

Description

Price

130

BOLT-FLANGED,6X8

130BB0608

$6.07

221

SCREW-CSK-CROS,6X35

221AB0635

$1.28

11054

BRACKET,SEAT LOCK

11054-0492

$8.68

27005

SWITCH-ASSY-IGNITION

27005-0032

$174.70

27008

KEY-LOCK,BLANK

27008-0042

$27.86

27010

SWITCH,REAR BRAKE

27010-0050

$35.98

27010A

SWITCH,SIDE STAND

27010-1470

$70.27

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

$84.75

27016A

LOCK-ASSY,SEAT

27016-5341

$67.81

27016B

LOCK-ASSY,STEERING

27016-5342

$111.26

27045

SWITCH-ASSY

27045-5323

$536.01

28012

REFLECTOR-REFLEX

28012-0010

$26.91

28012A

REFLECTOR-REFLEX

28012-0019

$27.10

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

51049

CAP-TANK,FUEL

51049-5001

$113.04

92066

PLUG

92066-1543

$2.64

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$5.46

92151

BOLT,SOCKET,6X35

92151-1390

$2.46

92153

BOLT,TORX,8X22

92153-1273

$5.79

92153A

BOLT,SOCKET,5X16

92153-1685

$3.39

92210

NUT,FLANGED,5MM

92210-0007

$2.70
