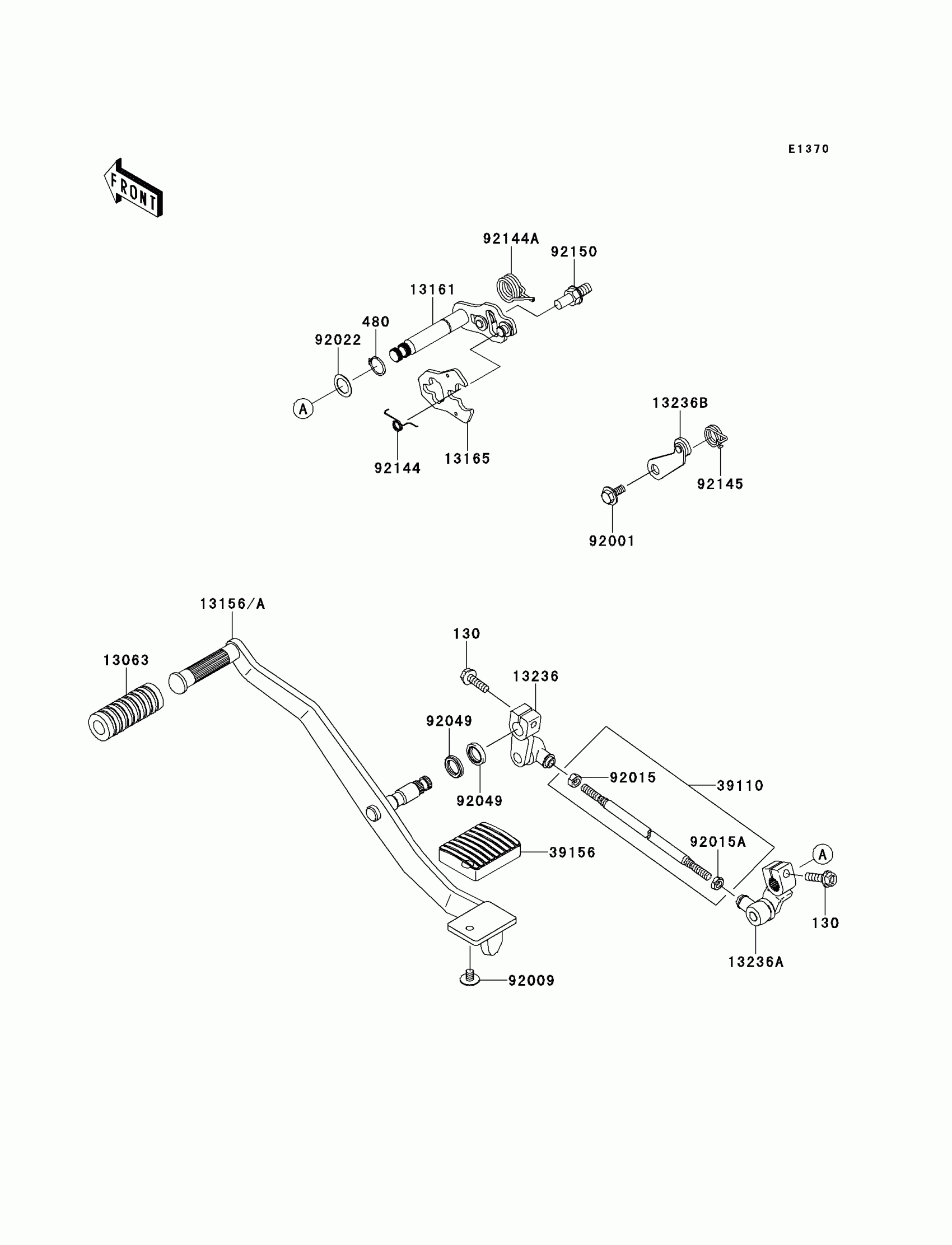

Kawasaki VULCAN 900 CLASSIC (Canadian) Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130CB0620

$7.65

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

13063

DAMPER,PEDAL

13063-002

$5.00

13156

LEVER-CHANGE

13156-0063

$124.46

13161

LEVER-COMP-CHANGE SHAFT

13161-0046

$68.14

13165

PAWL,CHANGE LEVER

13165-1151

$14.10

13236

LEVER-COMP

13236-0100

$50.66

13236A

LEVER-COMP

13236-0119

$54.20

13236B

LEVER-COMP,POSITION

13236-1126

$13.60

39110

ROD-ASSY-TIE

39110-1124

$19.50

39156

PAD

39156-1641

$11.68

92001

BOLT,FLANGED,6X14

92001-1715

$10.65

92009

SCREW,6X8

92009-1677

$4.31

92015

NUT,6MM

92015-1443

$3.92

92015A

NUT,LEFT HANDED,6MM

92015-1444

$4.69

92022

WASHER,13.2X20X0.5

92022-1224

$4.31

92049

SEAL-OIL,VB13193

92049-1398

$6.22

92144

SPRING

92144-1029

$7.77

92144A

SPRING,CHANGE PEDAL RETURN

92144-1074

$9.43

92145

SPRING,RETURN

92145-0462

$7.31

92150

BOLT,RETURN SPRING

92150-1869

$8.58
