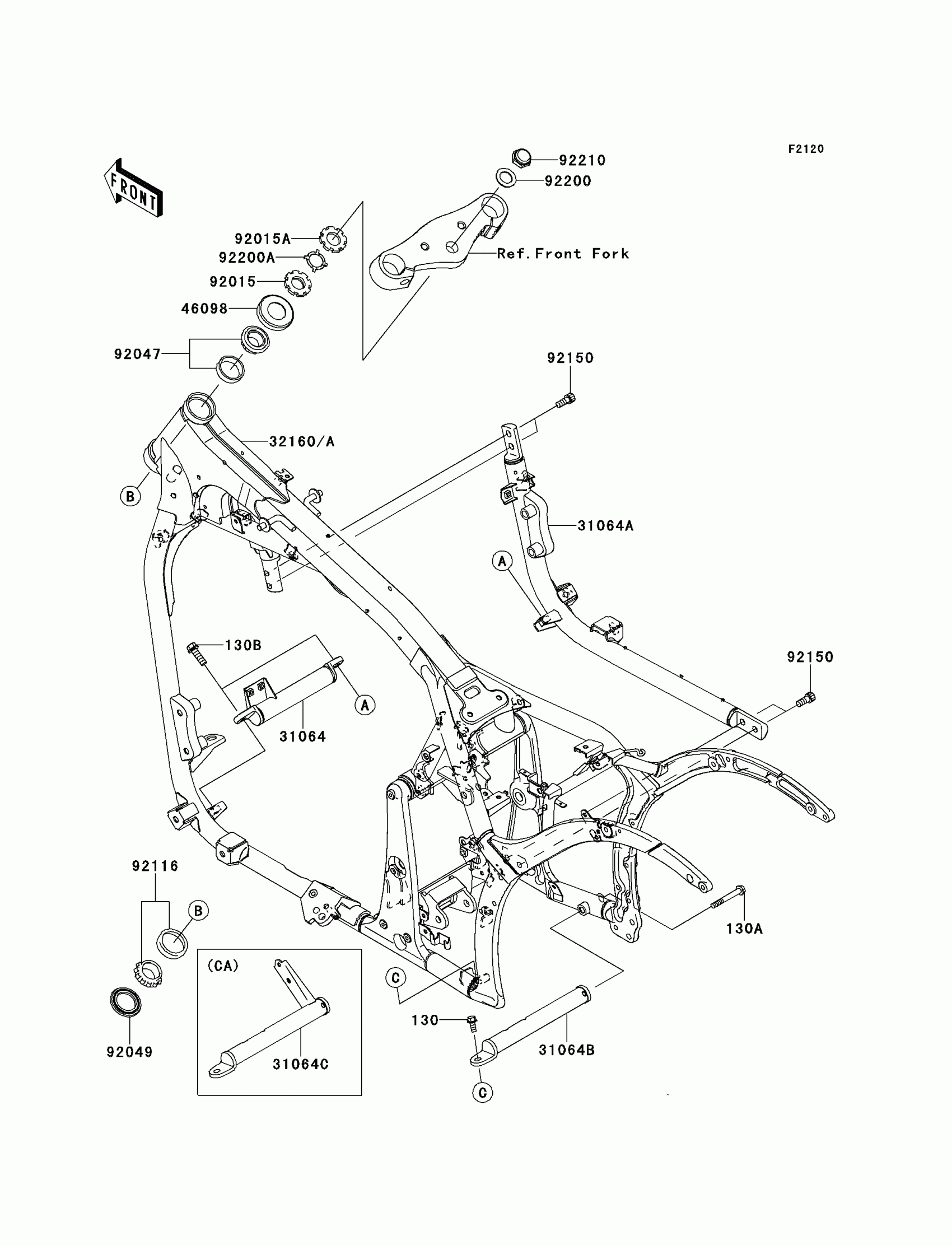

2013 Kawasaki Vulcan 900 Classic (Canadian) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2013 Kawasaki Vulcan 900 Classic (Canadian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Vulcan 900 Classic (Canadian) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X18

130BB0818

1

$1.47

In stock

130A

BOLT-FLANGED,8X65

130BB0865

1

$4.53

In stock

130B

BOLT-FLANGED,10X25

130BB1025

1

$4.63

In stock

31064

1

$107.62

In stock

31064A

1

$328.54

In stock

32160A

FRAME-COMP,F.S.BLACK

32160-0597-18R

1

$2,450.73

In stock

46098

CAP,STEERING STEM

46098-017

1

$5.37

In stock

92015

NUT,25MM,T=10

92015-1377

1

$25.61

In stock

92015A

NUT,25MM,T=6

92015-1378

1

$19.42

In stock

92047

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92116

1

$33.21

In stock

92150

BOLT,SOCKET,10X23

92150-1942

1

$5.84

In stock

92200

WASHER,22.5X36X2.3

92200-0270

1
Out of stock

92200A

WASHER,CLAW,25.5X34X0.6

92200-0353

1
Out of stock

92210

NUT,CAP,22MM

92210-0263

1
Out of stock

31064B

1

$76.10

In stock

31064C

1

$76.10

In stock
