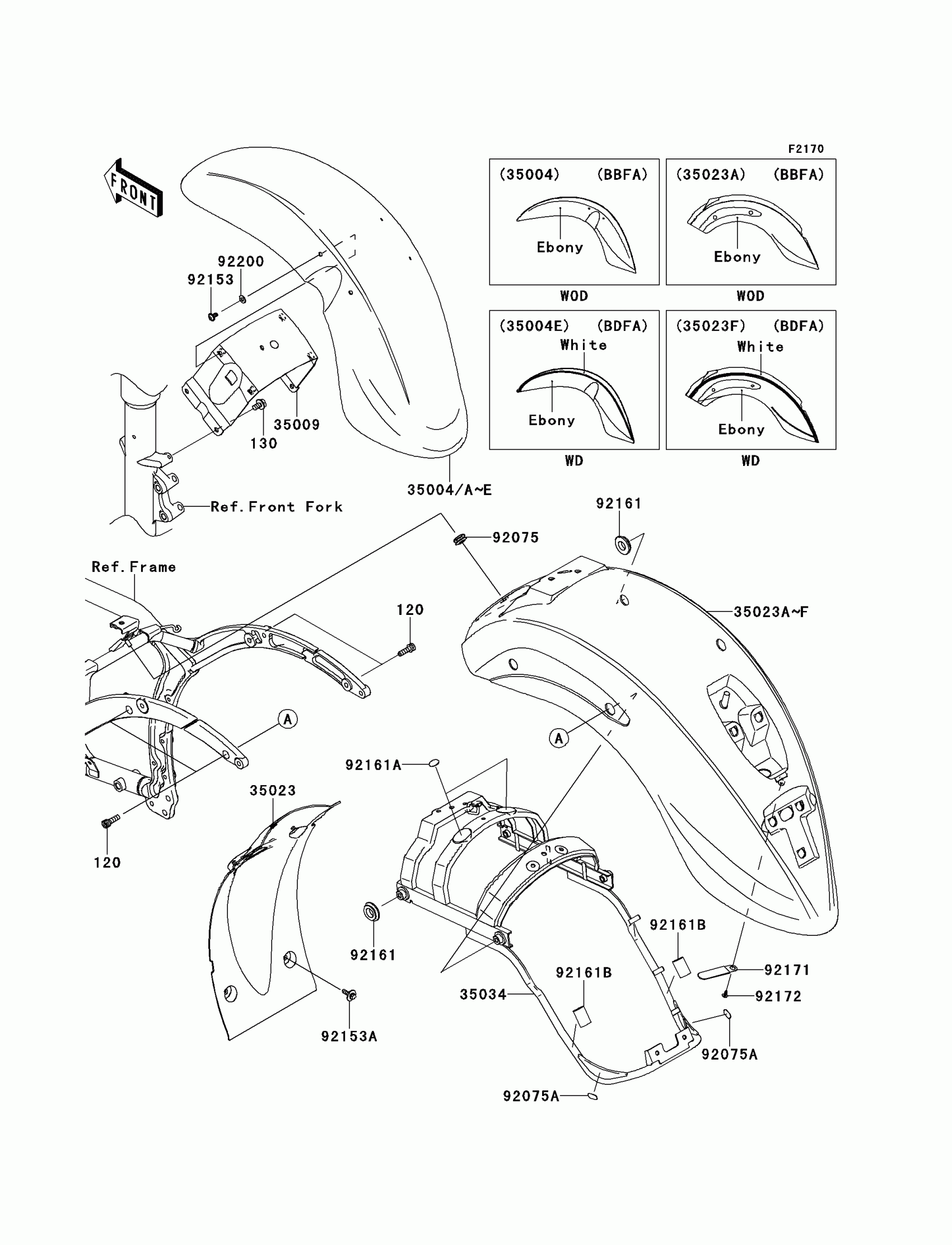

Kawasaki VULCAN 900 CLASSIC (Canadian) Fenders Diagram

Description

Price

35004B

FENDER-FRONT,C.M.BLUE

35004-0062-25W

$245.40

35009

BRACE,FRONT FENDER

35009-0014

$47.69

35023

FENDER-REAR,INNER

35023-0073

$49.01

35023C

FENDER-REAR,C.M.BLUE

35023-0114-25W

$336.55

120

BOLT-SOCKET,8X25

120CA0825

$1.49

130

BOLT-FLANGED,8X14

130BB0814

$2.63

35034

REINFORCE,REAR FENDER

35034-0090

$215.56

92075

DAMPER

92075-1067

$3.57

92075A

DAMPER

92075-1841

$4.17

92153

BOLT,SOCKET,6X16

92153-0817

$1.57

92153A

BOLT,6X20

92153-1599

$1.53

92161

DAMPER

92161-0375

$2.98

92161A

DAMPER

92161-0406

$2.09

92161B

DAMPER

92161-0459

$5.31

92171

CLAMP

92171-0181

$7.80

92172

SCREW,TAPPING,4X10

92172-0172

$3.71

92200

WASHER,6.5X14X1

92200-1388

$1.76
