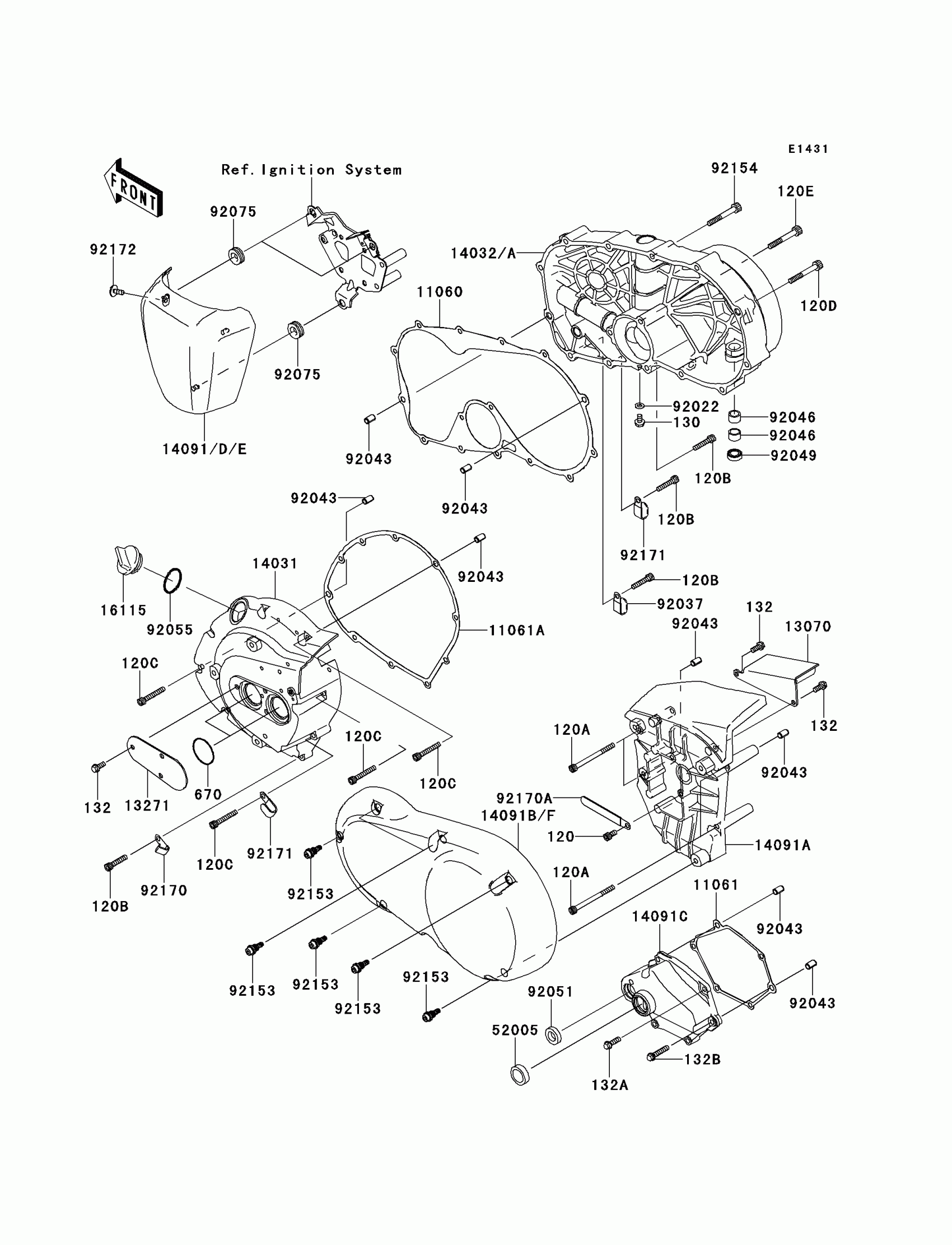

Kawasaki VULCAN 900 CLASSIC (Canadian) Engine Cover(s) Diagram

#

Description
Price

120

BOLT-SOCKET,6X12

120CA0612

$1.71

120A

BOLT-SOCKET,6X75

120CA0675

$3.29

120B

BOLT-SOCKET,6X30

120CC0630

$2.03

120C

BOLT-SOCKET,6X40

120CC0640

$2.41

120D

BOLT-SOCKET,6X50

120CC0650

$2.55

120E

BOLT-SOCKET,6X65

120CC0665

$3.21

130

BOLT-FLANGED,6X10

130BA0610

$1.20

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.46

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49

11060

GASKET,CLUTCH COVER

11060-1926

$40.86

11061

GASKET,MECHANISM COVER

11061-0208

$7.69

11061A

GASKET,GENERATOR COVER

11061-0209

$28.84

13070

GUIDE,BELT

13070-0055

$39.29

13271

PLATE

13271-0700

$7.75

14031

COVER-GENERATOR

14031-0056

$252.81

14032

COVER-CLUTCH

14032-0076

$503.99

14091

COVER

14091-0289

$105.21

14091A

COVER,PULLEY

14091-0510

$126.20

14091B

COVER,OUTER,LH

14091-0511

$172.03

14091C

COVER,CHANGE MECHANIZM

14091-0633

$139.52

16115

CAP-OIL FILLER

16115-1009

$14.30

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92037

CLAMP,L=45

92037-1539

$5.00

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL,TB12205.5

92049-1271

$9.28

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,31.5X2.6

92055-049

$4.31

92075

DAMPER

92075-1629

$5.00

92153

BOLT,SOCKET,6X22

92153-1331

$10.30

92154

BOLT,SOCKET,6X50

92154-0270

$2.75

92170

CLAMP,HARNESS

92170-1900

$6.26

92170A

CLAMP

92170-1925

$2.40

92171

CLAMP

92171-0739

$5.65

92172

SCREW,5X12

92172-0101

$5.05

132B

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

670

O RING,34MM

670B3034

$2.05
