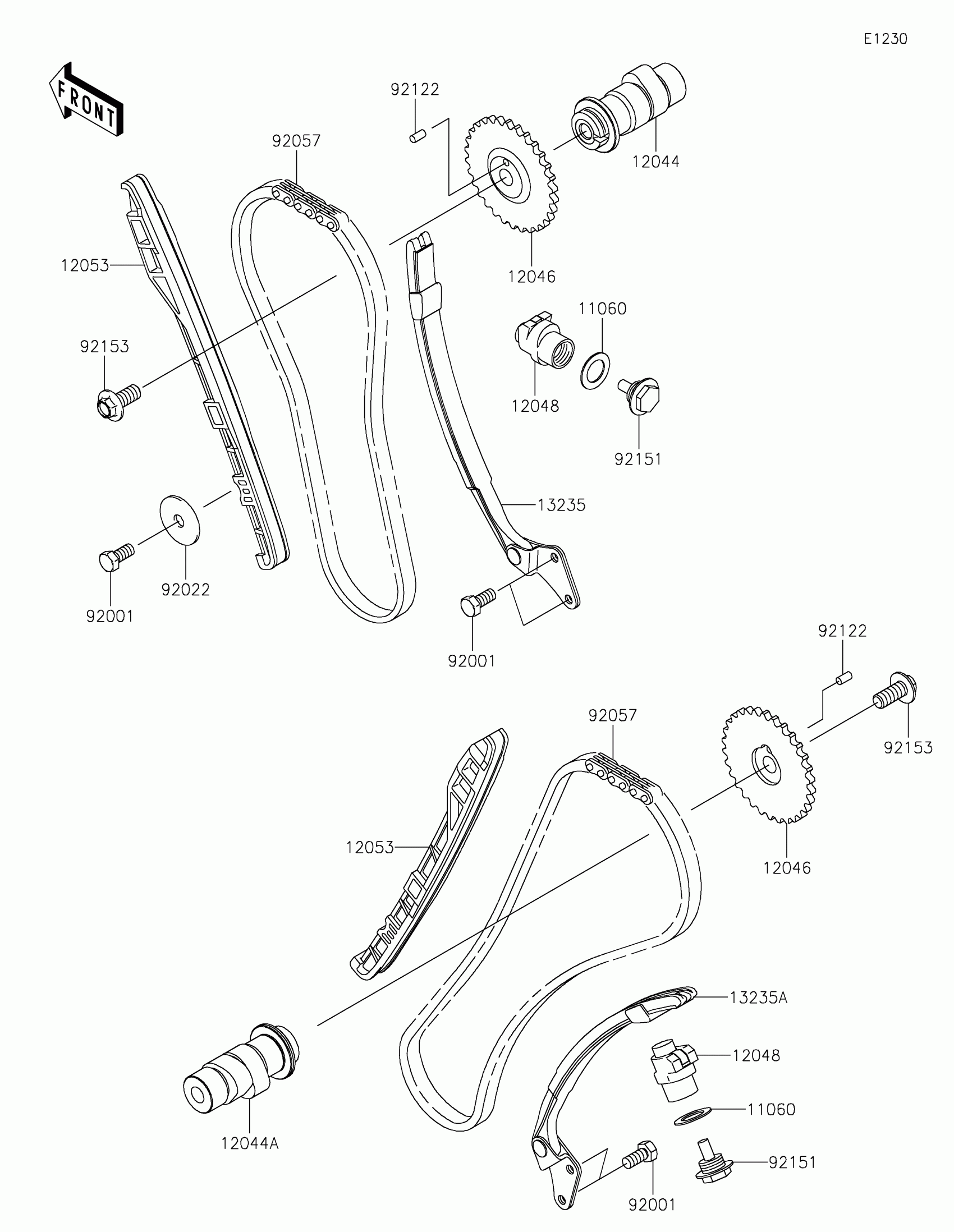

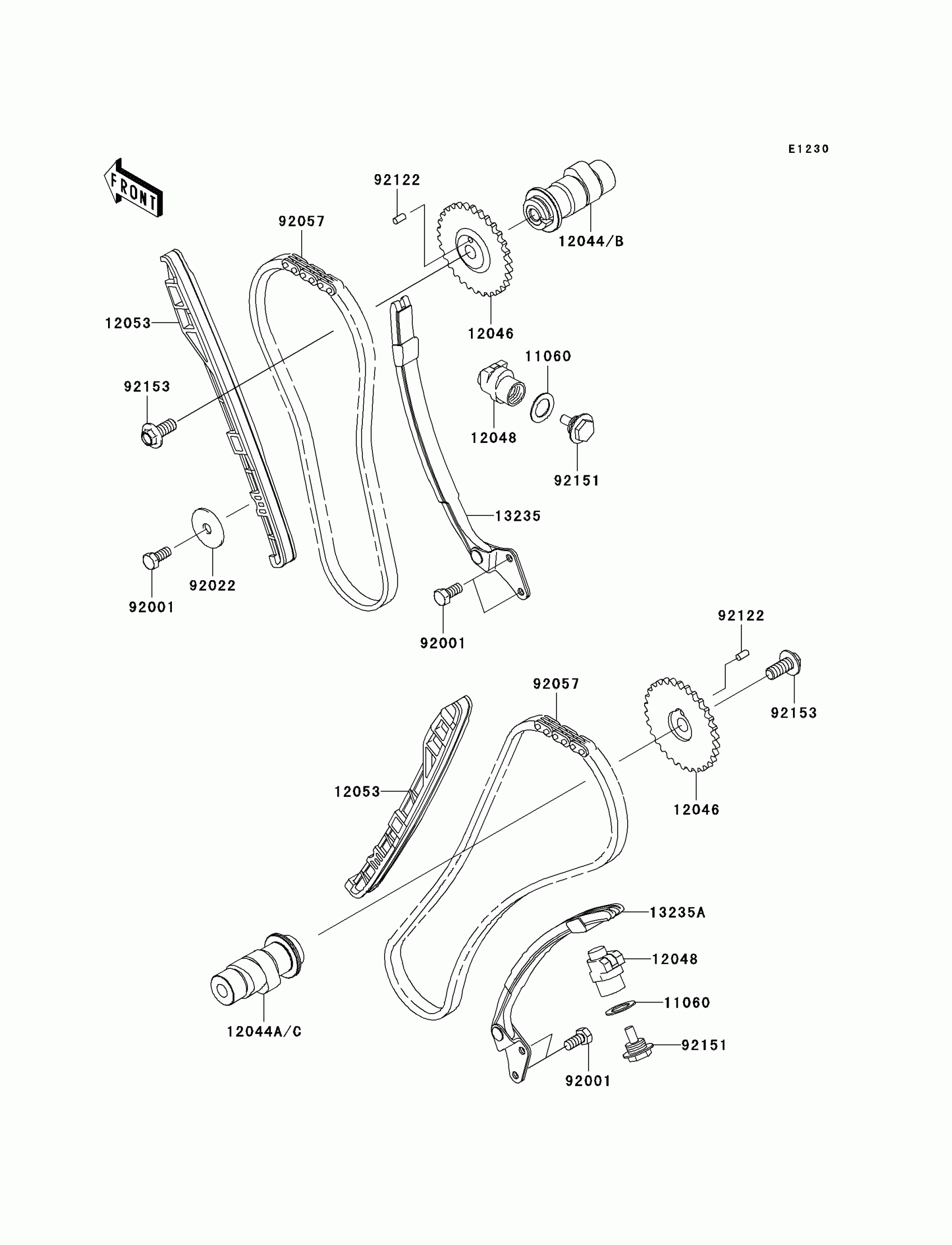

Kawasaki Vulcan® 900 Classic Camshaft(s)/Tensioner Diagram

Description

Price

11060

GASKET,TENSIONER

11060-1682

$4.26

12044B

CAMSHAFT-VALVE,FR

12044-0097

$195.97

12044C

CAMSHAFT-VALVE,RR

12044-0098

$195.97

12046

SPROCKET

12046-1171

$47.72

12048

TENSIONER-ASSY

12048-1145

$112.60

12053

GUIDE-CHAIN

12053-1354

$58.44

13235

GUIDE-COMP,FR

13235-1067

$104.18

13235A

GUIDE-COMP,RR

13235-1068

$106.12

92001

BOLT,6X16

92001-1457

$5.00

92022

WASHER,7X27X1.6

92022-227

$4.69

92057

CHAIN,CAM

92057-1403

$101.70

92122

ROLLER,4X9.8

92122-1197

$4.31

92151

BOLT,TENSIONER

92151-1136

$14.43

92153

BOLT

92153-1663

$3.90
