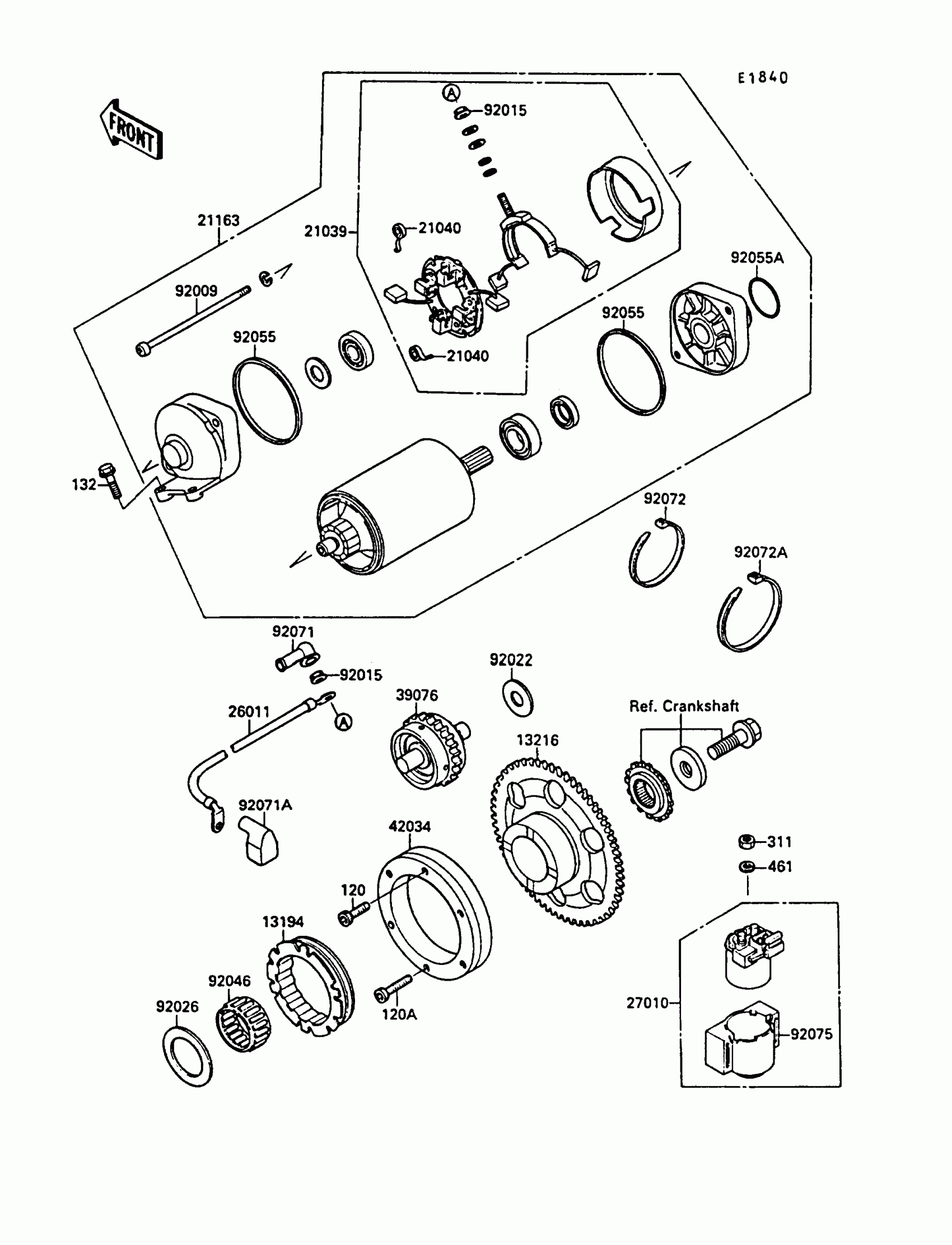

Kawasaki Vulcan 88 SE Starter Motor Diagram

#

Description
Price

13194

CLUTCH-ONEWAY

13194-1070

Unavailable

13216

GEAR-COMP,FREE WHEEL

13216-1115

Unavailable

21039

BRUSH,CARBON

21039-1060

$84.32

21040

SPRING-BRUSH

21040-1055

$8.42

21163

STARTER-ELECTRIC

21163-1109

$703.16

26011

WIRE-LEAD,STARTER MOTOR

26011-1403

Unavailable

27010

SWITCH,MAGNETIC

27010-1213

Unavailable

39076

LIMITER,STARTER IDLE GEAR

39076-1057

$269.04

42034

COUPLING

42034-1093

$97.19

92009

SCREW

92009-1443

Unavailable

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,12X27.5X1.0

92022-1852

$5.11

92026

SPACER

92026-1070

$11.38

92046

BEARING-NEEDLE,K30X35X20

92046-1171

$22.53

92055

RING-O,STARTER MOTOR

92055-1381

$9.91

92055A

RING-O,37MM

92055-1393

$11.91

92071

GROMMET,STARTER TERMINAL

21017-017

$9.43

92071A

GROMMET,TERMINAL

92071-1130

$11.29

92072

BAND,L=202

92072-1195

$1.56

92072A

BAND,L=365

92072-1197

$7.84

92075

DAMPER,MAGNETIC SWITCH

92075-1863

Unavailable

120

BOLT-SOCKET,6X20

120S0620

Unavailable

120A

BOLT-SOCKET,6X30

120S0630

$2.95

132

BOLT-FLANGED-SMALL,6X25

132E0625

$1.13

311

NUT 6MM

311B0600

$0.93

461

WASHER SPRING 6MM

461F0600

$0.69
