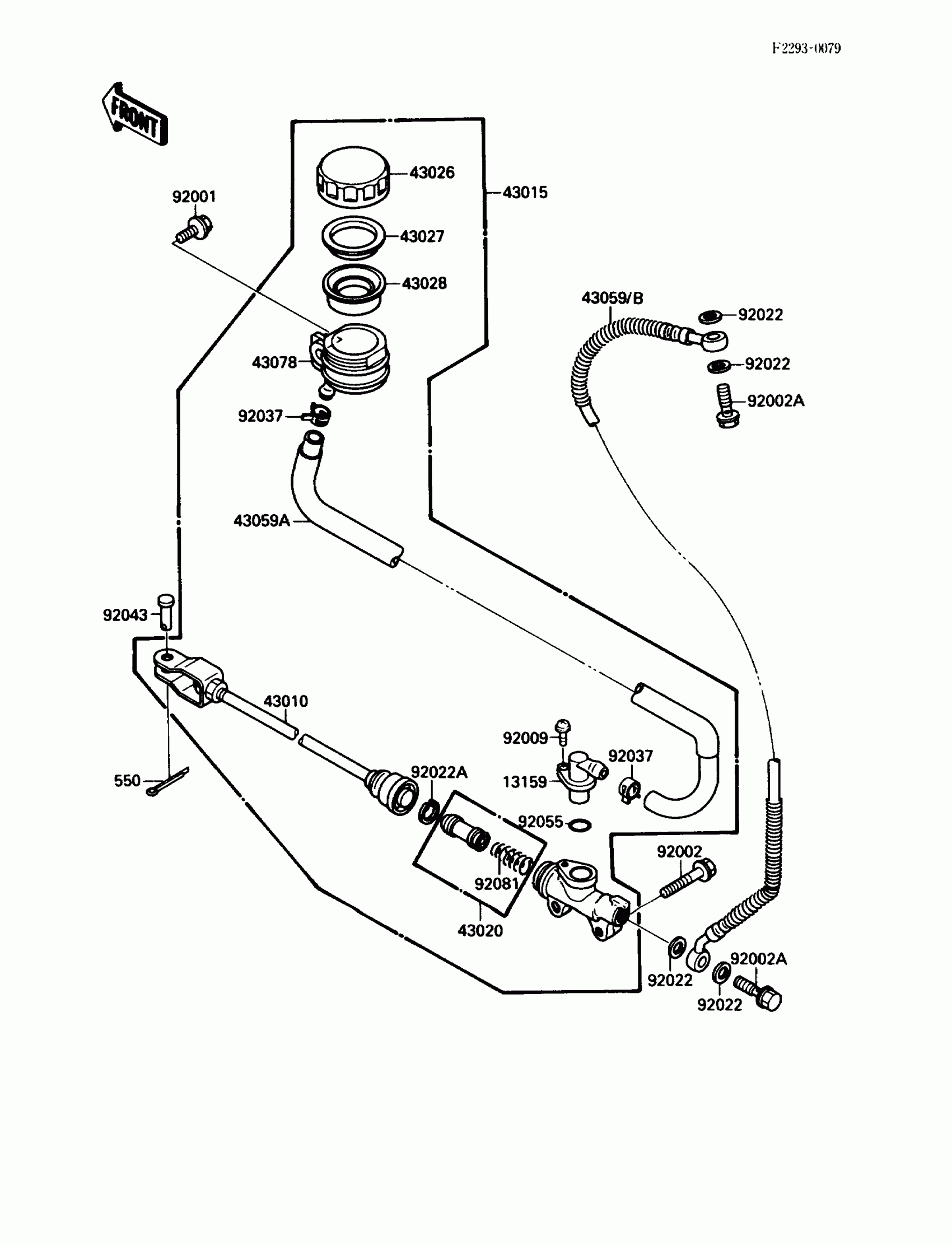

Kawasaki Vulcan 88 SE Rear Master Cylinder Diagram

Description

Price

13159

CONNECTOR

13159-1058

Unavailable

43010

ROD-ASSY-BRAKE

43010-1064

Unavailable

43015

CYLINDER-ASSY-MASTER,RR

43015-1349

Unavailable

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43059A

HOSE-BRAKE,RR MASTER CYLINDER

43059-1414

Unavailable

43059B

HOSE-BRAKE,RR

43059-1439

Unavailable

43078

RESERVOIR,RR MASTER CYLINDER

43078-1058

$30.28

92001

BOLT,W/P,6X16

92001-1860

$4.31

92002

BOLT,FLANGED,8X30

92002-1539

Unavailable

92002A

BOLT,OIL,L=23

92002-1975

$15.18

92009

SCREW

92009-1486

$3.92

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92037

CLAMP,BRAKE HOSE

92037-1547

$12.35

92043

PIN,8X16

92043-1013

$9.91

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

550

PIN COTTER 2.0X15

550D2015

$1.04
