1989 Kawasaki Vulcan 88 SE Rear Brake Diagram

← All diagrams

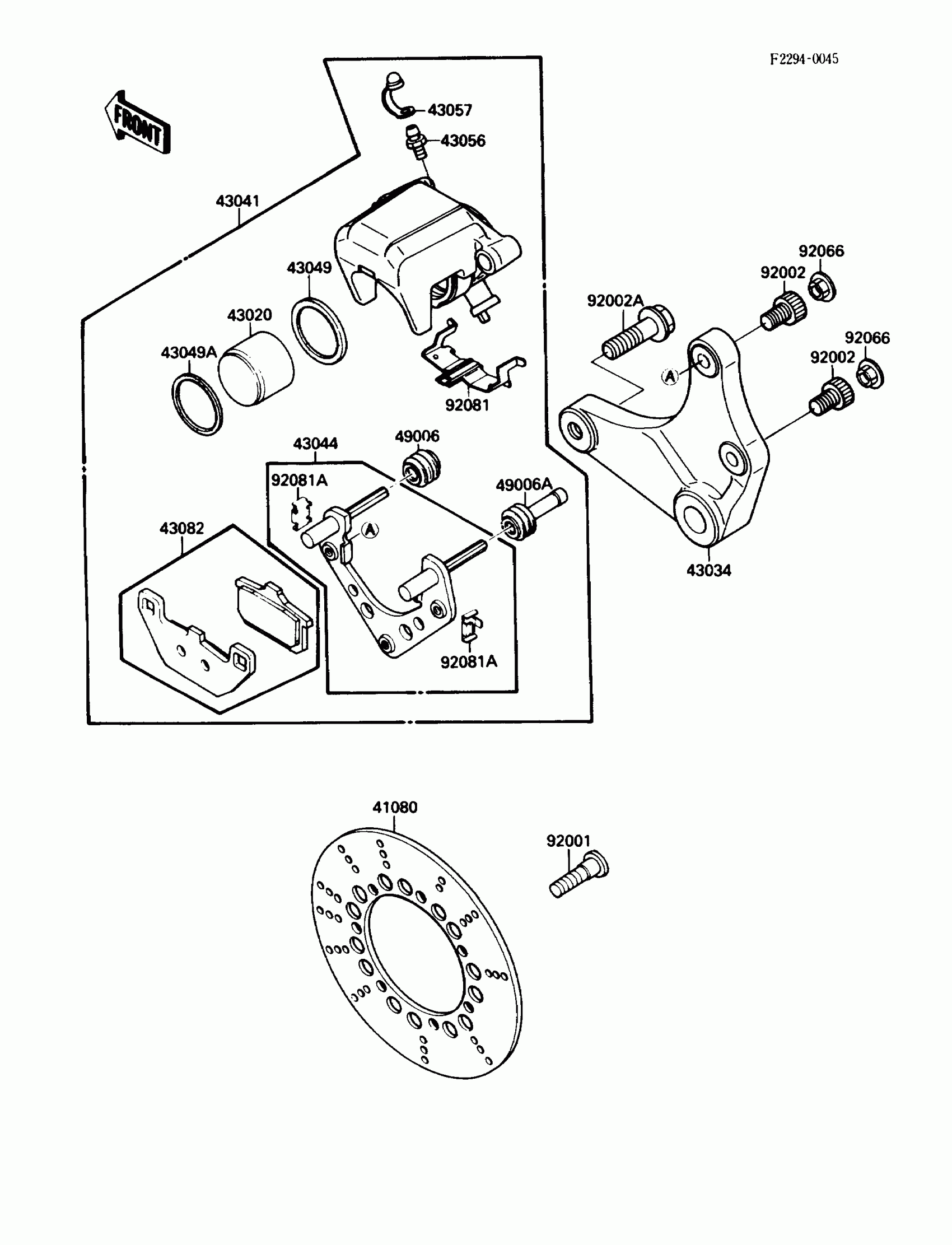

Find the part on the Rear Brake diagram for your 1989 Kawasaki Vulcan 88 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 88 SE Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,RR,SILVER

41080-1128

1

$341.19

In stock

43020

PISTON-COMP-BRAKE

43020-1051

1

$95.25

In stock

43034

HOLDER-BRAKE,REAR CALIPER

43034-1080

1
Out of stock

43041

CALIPER-ASSY,RR

43041-1235

1

$595.00

In stock

43044

1

$108.40

In stock

43049

1

$11.01

In stock

43049A

PACKING,PISTON

43049-1028

1

$10.02

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082

PAD-ASSY-BRAKE

43082-1062

1

$62.35

In stock

49006

BOOT,CALIPER

49006-1094

1

$9.69

In stock

49006A

BOOT,CALIPER

49006-1095

1

$5.78

In stock

92001

1

$3.72

In stock

92002

BOLT,SOCKET,10X17

92002-1713

1
Out of stock

92002A

BOLT,FLANGED,12X40

92002-1969

1
Out of stock

92066

PLUG

92066-1285

1

$6.18

In stock

92081

SPRING,PAD

92081-1525

1

$15.31

In stock

92081A

SPRING,PAD STOPPER

92081-1661

1

$9.60

In stock
