1989 Kawasaki Vulcan 88 SE Front Master Cylinder Diagram

← All diagrams

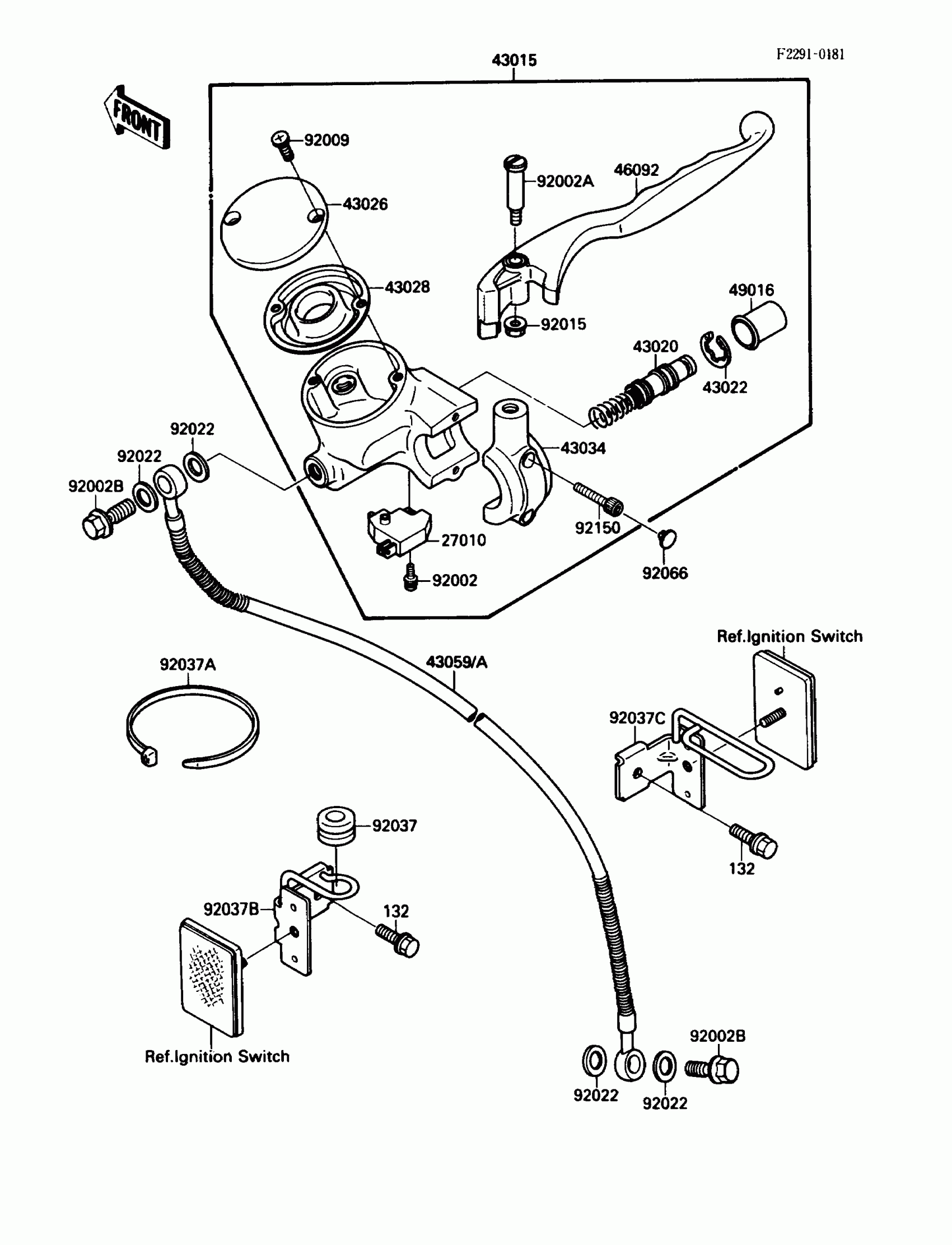

Find the part on the Front Master Cylinder diagram for your 1989 Kawasaki Vulcan 88 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 88 SE Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,BRAKE

27010-1170

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1348

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1031

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1066

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1071

1
Out of stock

43034

HOLDER-BRAKE

43034-1086

1
Out of stock

43059A

HOSE-BRAKE,FR

43059-1441

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-1146

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT,LEVER SET

92002-1561

1
Out of stock

92002B

BOLT,OIL,L=23

92002-1975

1
Out of stock

92009

SCREW,5MM

92009-1440

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1
Out of stock

92037

GROMMET,HOSE CLAMP

43064-006

1
Out of stock

92037A

CLAMP

92037-1173

1
Out of stock

92037B

CLAMP,HOSE

92037-1884

1
Out of stock

92037C

CLAMP,CABLE

92037-1885

1
Out of stock

92066

PLUG

92066-1301

1
Out of stock

92150

BOLT,SOCKET,6MM

92150-1025

1
Out of stock

132

1

$3.72

In stock
← Front Brake Rear Brake →

More Brakes diagrams
