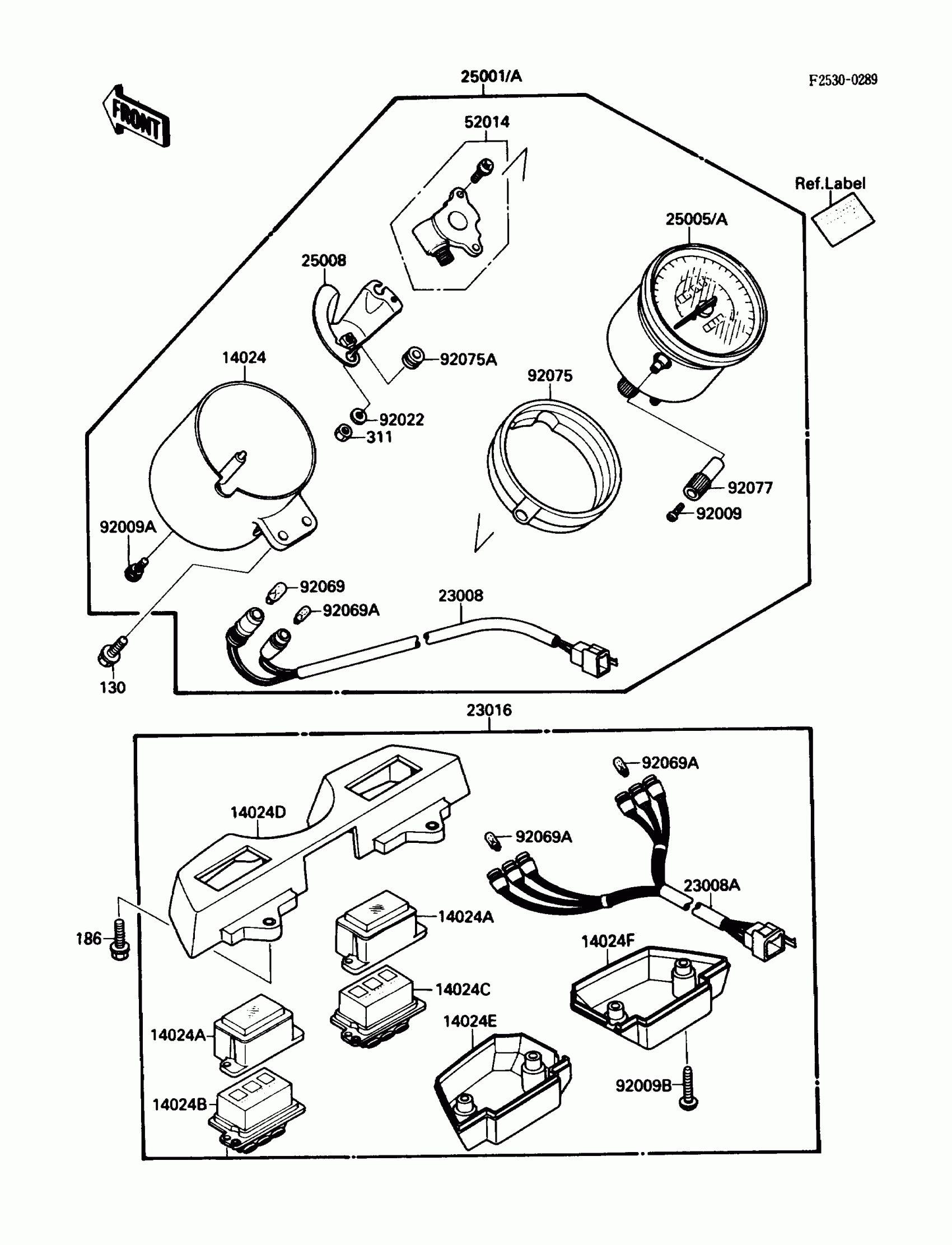

Kawasaki Vulcan 88 SE Meter(s) Diagram

#

Description
Price

14024

COVER,METER,LWR

14024-1504

$382.39

14024A

COVER,PILOT BOX,UPP

14024-1505

Unavailable

14024B

COVER,PILOT BOX,LH,LWR

14024-1506

Unavailable

14024C

COVER,PILOT BOX,RH,LWR

14024-1507

Unavailable

14024D

COVER,PILOT BOX,UPP

14024-1524

Unavailable

14024E

COVER,PILOT BOX,LH,LWR

14024-1525

Unavailable

14024F

COVER,PILOT BOX,RH,LWR

14024-1526

Unavailable

23008

SOCKET-ASSY,METER

23008-1340

Unavailable

23008A

SOCKET-ASSY,PILOT BOX

23008-1346

$81.67

23016

LAMP-ASSY,PILOT BOX

23016-1084

$487.96

25001A

METER-ASSY,KPH

25001-1697

Unavailable

25005A

SPEEDOMETER,KPH

25005-1368

Unavailable

25008

BRACKET-METER

25008-1139

Unavailable

52014

ELBOW,SPEEDOMETER GEAR

52014-1006

Unavailable

92009

SCREW,2X6,BLACK

92009-1172

$2.61

92009A

SCREW,5X10

92009-1478

Unavailable

92009B

SCREW,TAPPING,4X25

92009-1485

$3.71

92022

WASHER,4.3X12.5X1

92022-1888

$3.00

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92069A

BULB,14V 3W,T6.5

92069-1068

$5.00

92075

DAMPER,SHOCK,METER

92075-1953

$27.38

92075A

DAMPER,METER FITTING

92075-1956

Unavailable

92077

KNOB,METER

92077-1077

Unavailable

130

BOLT-FLANGED,6X16

130B0616

Unavailable

186

BOLT-UPSET-WP,5X18

186B0518

$3.60

311

NUT-HEX

311B0400

$0.52
