Engine Cover(s)

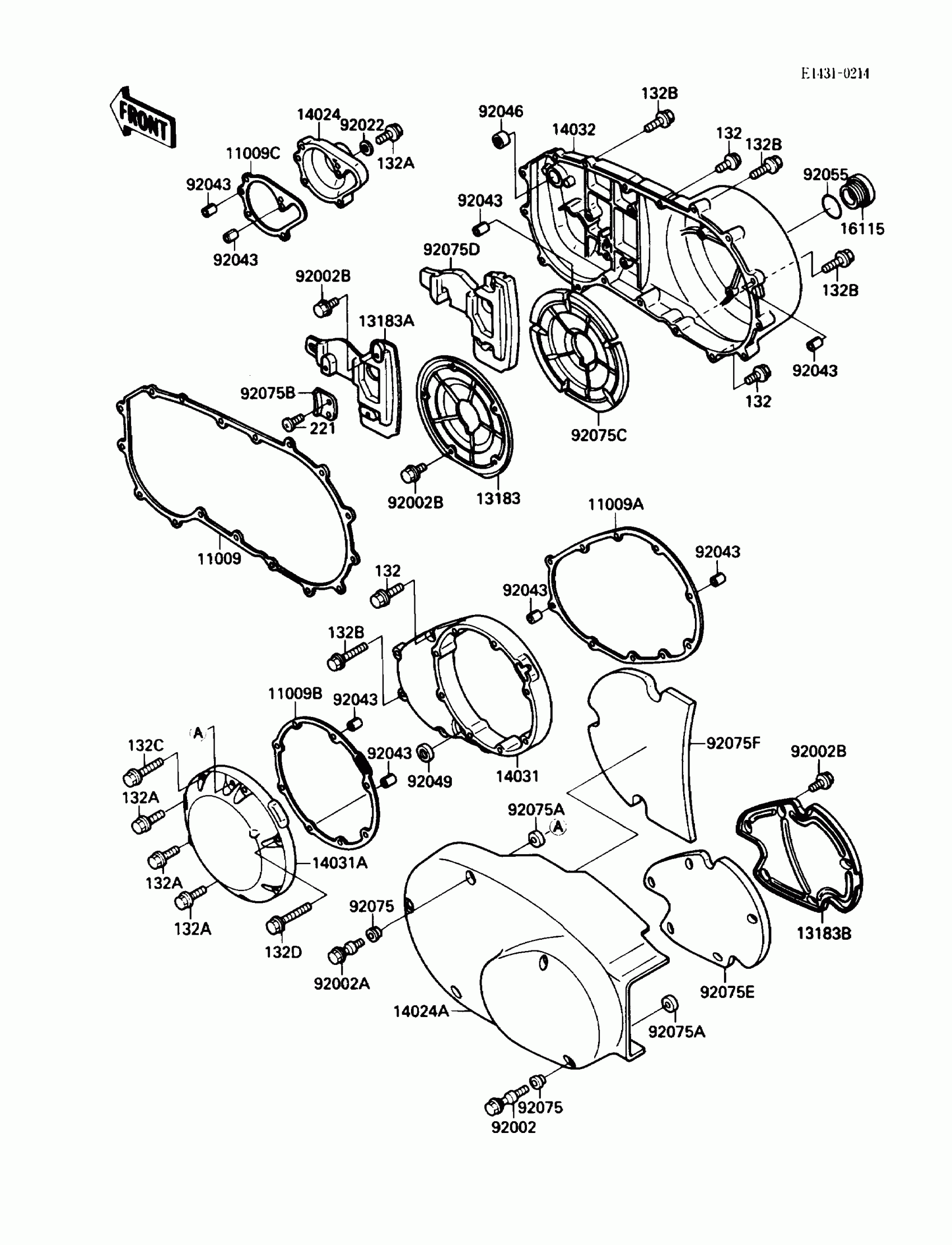

Kawasaki Vulcan 88 SE Engine Cover(s) Diagram
#
11009
GASKET,CLUTCH COVER
11009-1644
Unavailable
11009A
GASKET,GENERATOR
11009-1645
Unavailable
11009B
GASKET,GENERATOR OUTER
11009-1646
Unavailable
11009C
GASKET,WATER PUMP COVER
11009-1727
Unavailable
13183
PLATE
13183-1169
Unavailable
13183A
PLATE
13183-1170
Unavailable
13183B
PLATE,DAMPER
13183-1171
Unavailable
14024
COVER,WATER PUMP
14024-1402
Unavailable
14024A
COVER,LH
14024-1403
Unavailable
14031
COVER-GENERATOR
14031-1205
Unavailable
14031A
COVER-GENERATOR,OUTER
14031-1206
Unavailable
14032
COVER-CLUTCH
14032-1233
Unavailable
16115
CAP-OIL FILLER
16115-1056
$29.42
92002
BOLT
92002-1814
$9.81
92002A
BOLT
92002-1900
Unavailable
92002B
BOLT,6X8
92002-1944
$4.69
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92043
PIN,6.2X8X14
92043-1263
$0.43
92046
BEARING-NEEDLE,HK1212
92046-1163
$15.17
92049
SEAL-OIL,TB13225.5
92051-005
$7.74
92055
RING-O,31.5X2.6
92055-049
$4.31
92075
DAMPER
92075-1855
$8.10
92075A
DAMPER
92075-1856
$9.57
92075B
DAMPER
92075-1905
$11.07
92075C
DAMPER,CLUTCH COVER,RR
92075-1975
Unavailable
92075D
DAMPER,CLUTCH COVER,FR
92075-1976
Unavailable
92075E
DAMPER,LH COVER,RR
92075-1977
Unavailable
92075F
DAMPER,LH COVER,FR
92075-1978
Unavailable
132
BOLT-FLANGED-SMALL,6X25
132E0625
$1.13
132A
BOLT-FLANGED-SMALL,6X30
132E0630
$6.22
132B
BOLT-FLANGED-SMALL,6X35
132E0635
$5.24
132C
BOLT-FLANGED-SMALL,6X55
132E0655
$5.24
132D
BOLT-FLANGED-SMALL
132E0665
$5.59
221
SCREW-CSK-CROS,6X12
221B0612
$2.06
