Drive Shaft/Final Gear

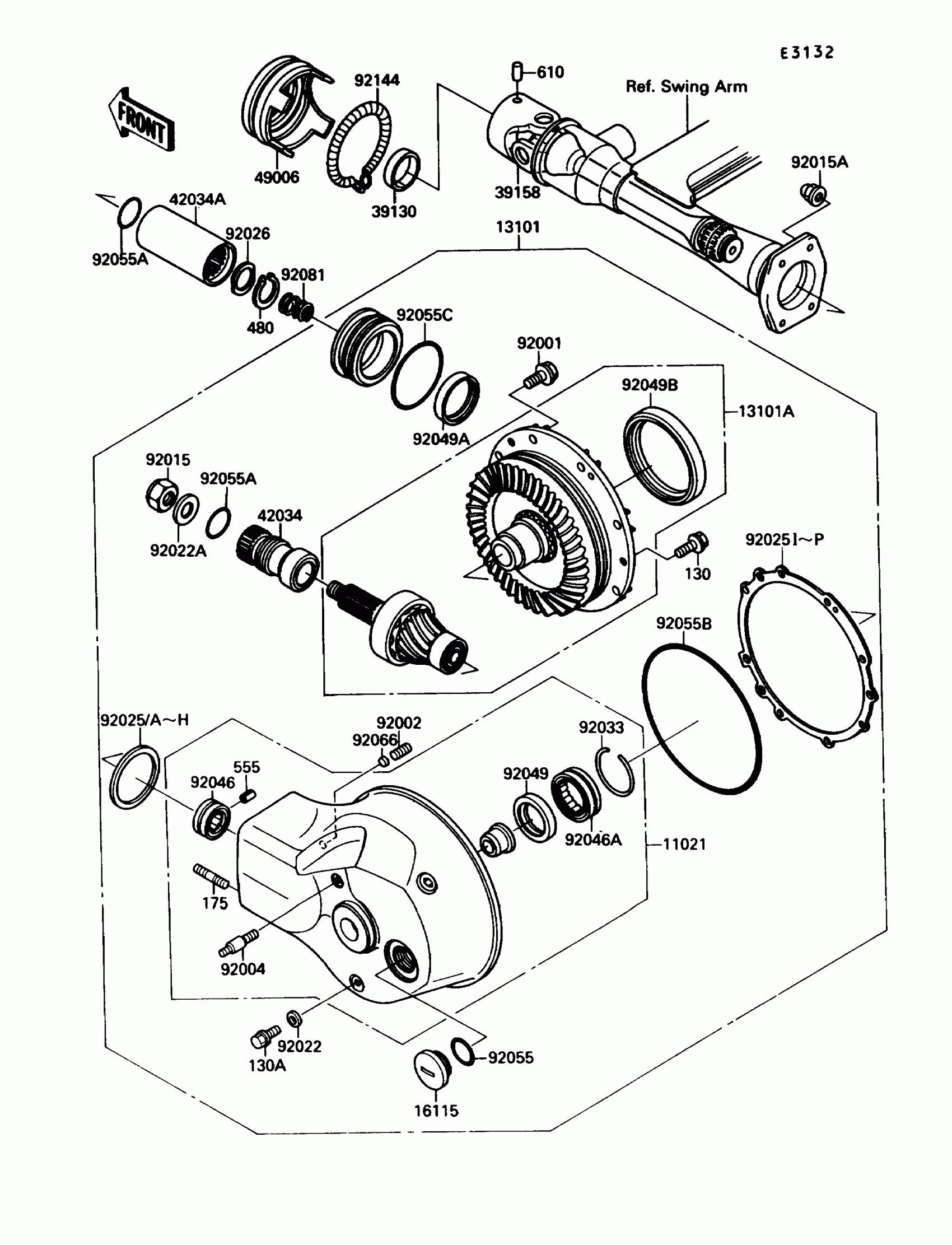

Kawasaki Vulcan 88 SE Drive Shaft/Final Gear Diagram
#
11021
CASE-ASSY,FINAL GEAR
11021-1065
Unavailable
13101
GEAR-ASSY,FINAL
13101-1116
Unavailable
13101A
GEAR-ASSY,BEVEL,RR
13101-5066
Unavailable
16115
CAP-OIL FILLER
16115-1056
$29.42
39130
SPRING-LEAF
39130-1002
$4.65
39158
SHAFT-ASSY-DRIVE
39158-1062
$547.83
42034
COUPLING
42034-1085
$76.24
42034A
COUPLING,PROPELLER SHAFT,OUTER
42034-1092
$96.63
49006
BOOT,DRIVE SHAFT
49006-1226
$29.42
92001
BOLT,10X23
92001-1778
$5.93
92002
SCREW-SET-SOCKET,8X18
92002-1836
$4.69
92004
STUD,RR SHOCKABSORBER
92004-1047
$15.74
92015
NUT,16MM
92015-1059
Unavailable
92015A
NUT,10MM
92015-1649
$5.52
92022
WASHER,8.2X16X1
92022-1086
$3.92
92022A
WASHER,16X32X3.2
92022-1105
$11.49
92025
SHIM,T=0.10
92025-1733
Unavailable
92025A
SHIM,T=0.15
92025-1734
Unavailable
92025B
SHIM,T=0.50
92025-1735
Unavailable
92025C
SHIM,T=0.60
92025-1736
Unavailable
92025D
SHIM,T=0.70
92025-1737
Unavailable
92025E
SHIM,T=0.80
92025-1738
Unavailable
92025F
SHIM,T=0.90
92025-1739
Unavailable
92025G
SHIM,T=1.00
92025-1740
Unavailable
92025H
SHIM,T=1.20
92025-1741
Unavailable
92025I
SHIM,T=0.15
92025-1783
Unavailable
92025J
SHIM,T=0.50
92025-1784
Unavailable
92025K
SHIM,T=0.60
92025-1785
Unavailable
92025L
SHIM,T=0.70
92025-1786
Unavailable
92025M
SHIM,T=0.80
92025-1787
Unavailable
92025N
SHIM,T=0.90
92025-1788
Unavailable
92025O
SHIM,T=1.00
92025-1789
Unavailable
92025P
SHIM,T=1.20
92025-1790
Unavailable
92026
SPACER,26.2X36X2
92026-1085
$8.21
92033
RING-SNAP,52MM
92033-1074
$4.65
92046
BEARING-NEEDLE,RNA4904ARD
92046-1168
$47.99
92046A
BEARING-NEEDLE,38NQ5020WD
92046-1169
$58.29
92049
SEAL-OIL,S-35477HS
92049-1025
$14.90
92049A
SEAL-OIL
92049-1248
$21.20
92049B
SEAL-OIL,MHSA83X100X9XRT
92049-1280
$32.48
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,ID=32.7
92055-1037
Unavailable
92055B
RING-O,154X3
92055-1165
$11.37
92055C
RING-O,67.6X3.5
92055-1327
$6.52
92066
PLUG,6.2X3
92066-1272
$3.18
92081
SPRING
92081-1183
$7.55
92144
SPRING,BOOT
92144-1194
$11.64
130
BOLT-FLANGED,8X25
130G0825
$2.89
130A
BOLT-FLANGED
130N0812
$5.59
175
BOLT-STUD-FINE
175G1025
$6.50
480
CIRCLIP-TYPE-C,26MM
480J2600
$10.03
555
PIN-SPRING
555A0428
$2.30
610
ROLLER,4X6
610A0406
$4.31
