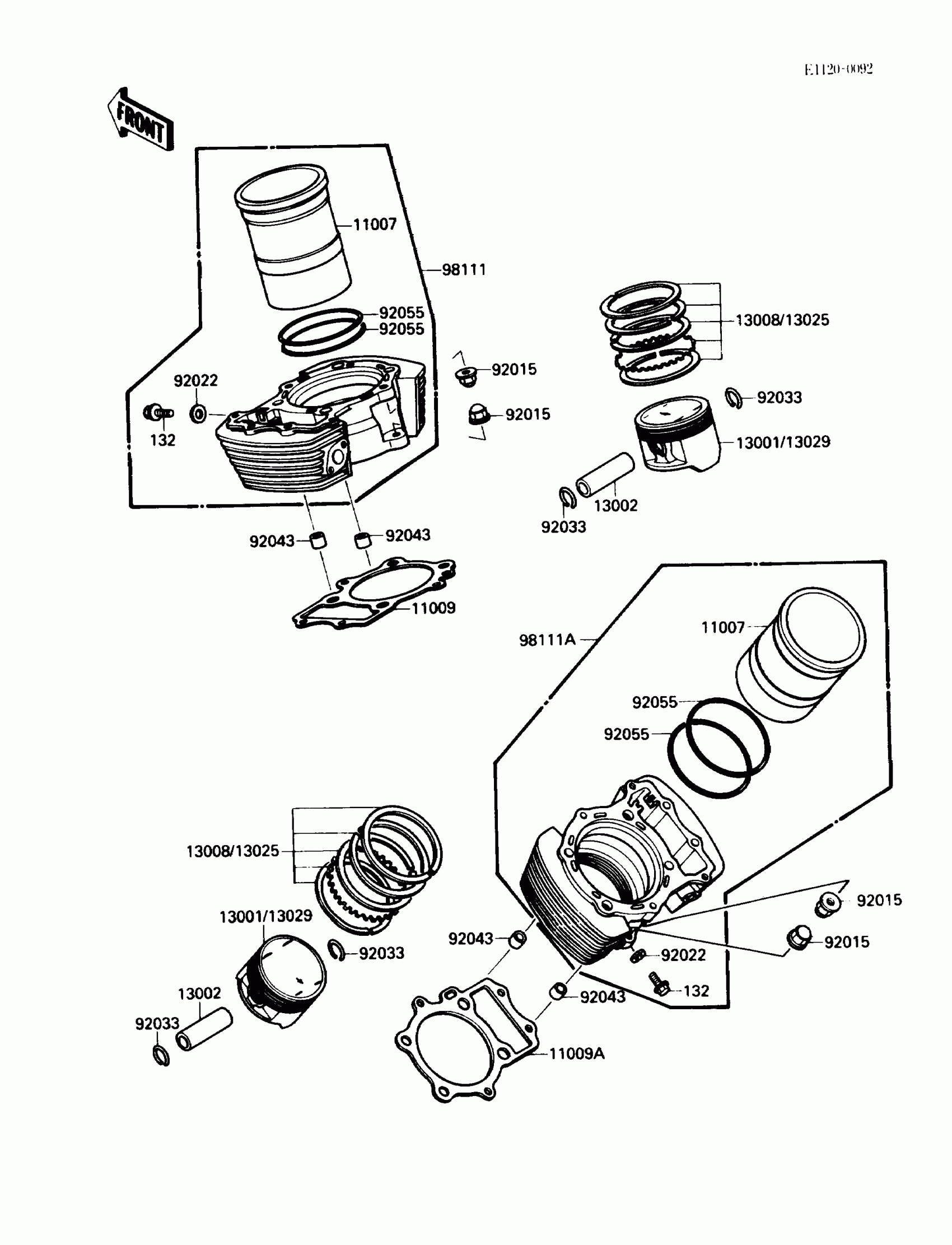

Kawasaki Vulcan 88 SE Cylinder/Piston(s) Diagram

Description

Price

11007

LINER-CYLINDER

11007-1097

Unavailable

11009

GASKET,CYLINDER BASE,FR

11009-1642

Unavailable

11009A

GASKET,CYLINDER BASE,RR

11009-1643

Unavailable

13001

PISTON-ENGINE,STD

13001-1276

Unavailable

13002

PIN-PISTON

13002-1070

$37.87

13008

RING-SET-PISTON,STD

13008-1086

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-1081

$103.41

13029

PISTON-ENGINE L,O/S 0.50

13029-1173

$176.22

92015

NUT,CAP,8MM

92015-1371

$5.00

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92033

RING-SNAP

92033-1226

$3.89

92043

PIN,DOWEL,13X16X14

92043-1349

$5.00

92055

RING-O,110.5X2.5

92055-1371

$10.65

98111

CYLINDER-COMP-ENGINE,FR

98111-1052

Unavailable

98111A

CYLINDER-COMP-ENGINE,RR

98111-1053

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132E0610

$4.69
