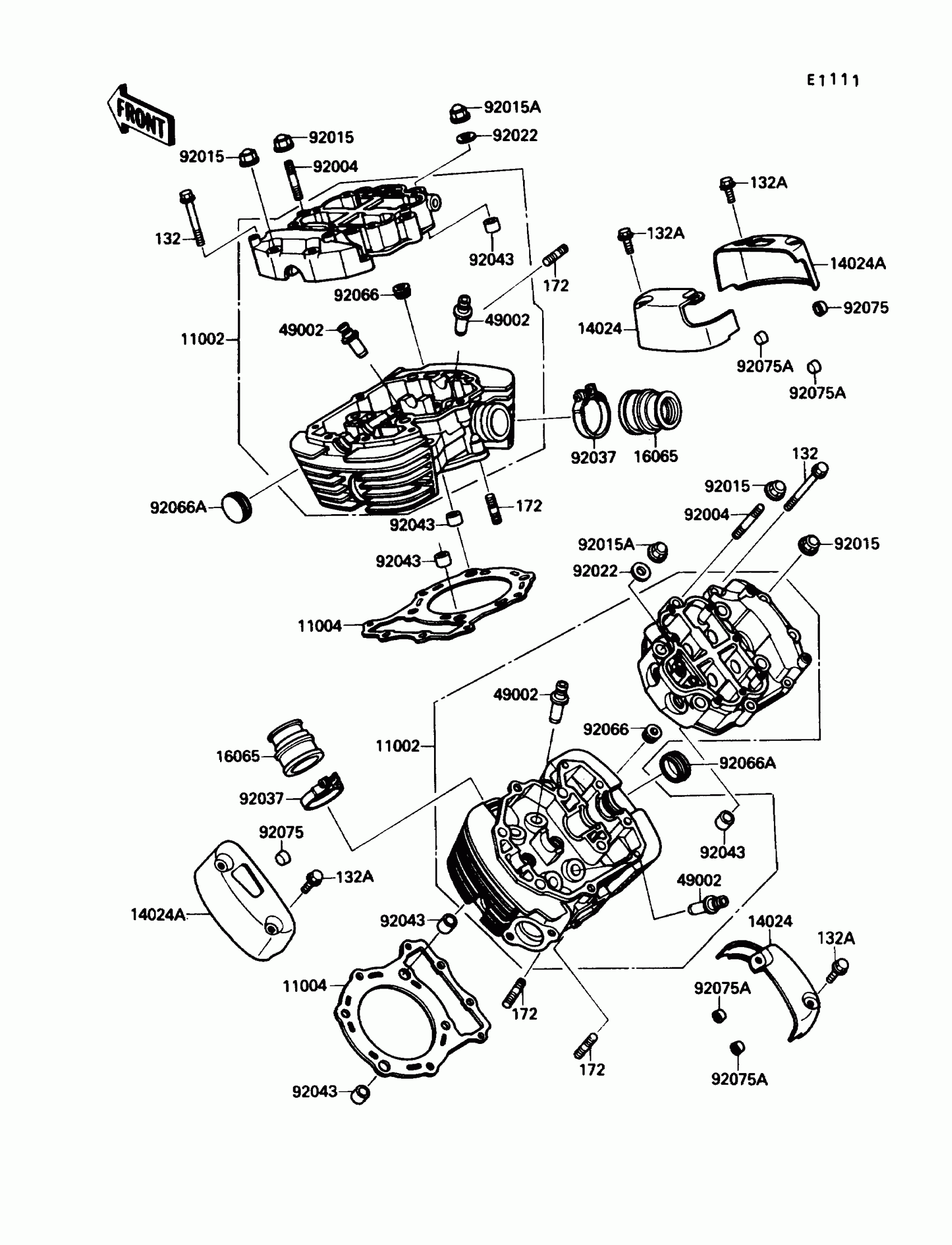

Find the part on the Cylinder Head diagram for your 1989 Kawasaki Vulcan 88 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 88 SE Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11002

HEAD-ASSY-CYLINDER

11002-1229

1
Out of stock

11004

GASKET-HEAD

11004-1161

1
Out of stock

14024

COVER,ROCKER

14024-1570

1
Out of stock

14024A

COVER,ROCKER

14024-1617

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1153

1
Out of stock

49002

GUIDE-VALVE

49002-1088

1
Out of stock

92004

STUD,8X51.5

92004-1173

1
Out of stock

92015

NUT,CAP,8MM

92015-1371

1
Out of stock

92015A

NUT,CAP,12MM

92015-1648

1
Out of stock

92022

WASHER,12.3X25X3.2

92022-1862

1
Out of stock

92037

CLAMP

92037-1632

1
Out of stock

92043

PIN,DOWEL,13X16X14

92043-1349

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-1253

1
Out of stock

92066A

PLUG

92066-1289

1
Out of stock

92075

DAMPER

92075-1995

1
Out of stock

92075A

DAMPER

92075-1996

1
Out of stock

132

BOLT-FLANGED-SMALL

132E06115

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock

172

BOLT-STUD,8X25

172G0825

1
Out of stock
