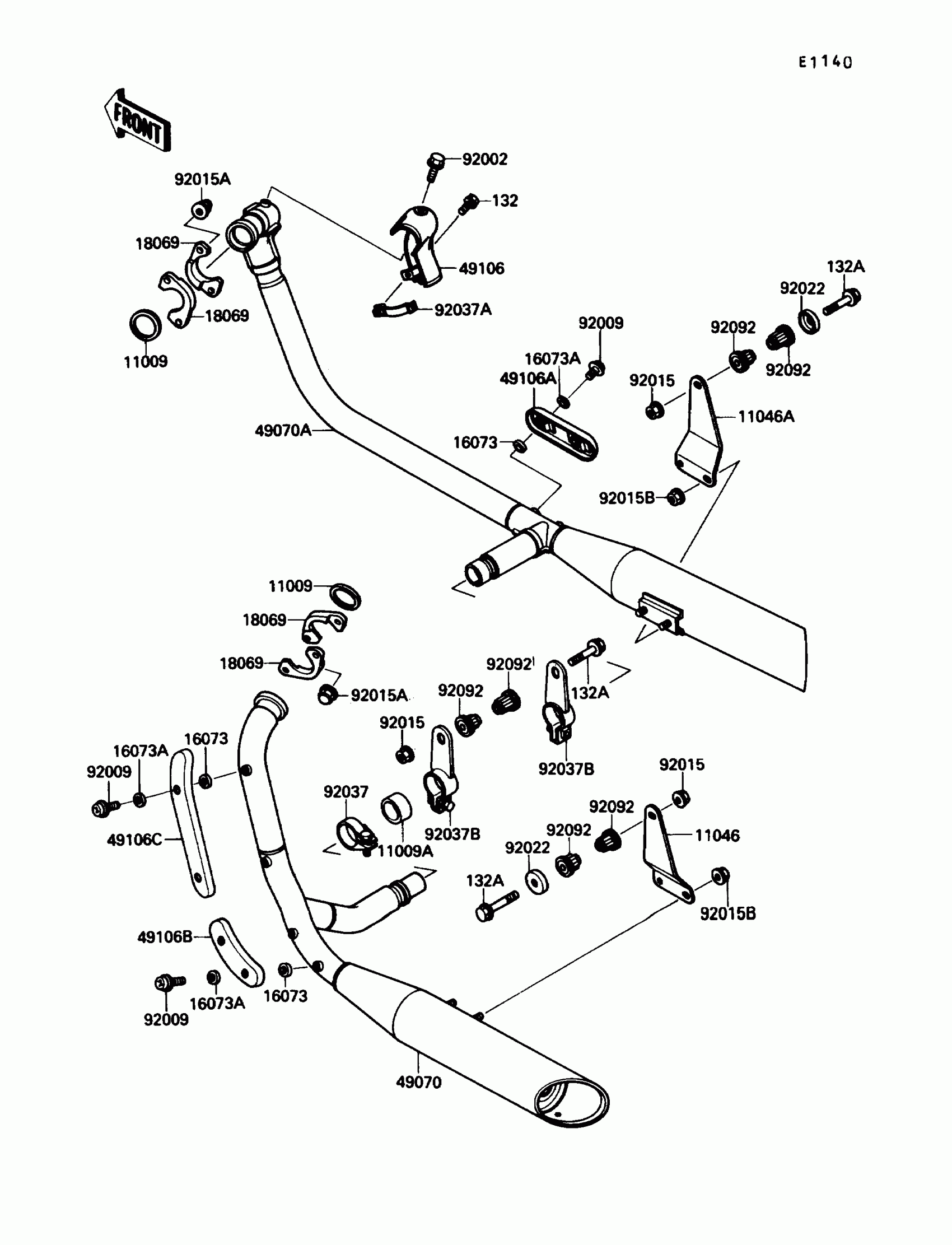

Kawasaki Vulcan 88 SE Muffler(s) Diagram

#

Description
Price

11009

GASKET,EXHAUST PIPE

11009-1476

Unavailable

11009A

GASKET,EXHAUST MANIFOLD

11009-1668

$27.88

11046

BRACKET,MUFFLER,LH

11046-1038

Unavailable

11046A

BRACKET,MUFFLER,RH

11046-1039

Unavailable

16073

INSULATOR,6.5X12.5X4

16073-1069

$4.44

16073A

INSULATOR,6.5X12.5X2

16073-1070

$4.41

18069

HOLDER-EXHAUST PIPE

18069-1074

$33.85

49070

MUFFLER-COMP,LH

49070-1119

$890.84

49070A

MUFFLER-COMP,RH

49070-1120

$890.84

49106

COVER-EXHAUST PIPE,FR

49106-1095

$87.98

49106A

COVER-MUFFLER,FR

49106-1104

$48.00

49106B

COVER-MUFFLER,RR,LWR

49106-1105

$77.84

49106C

COVER-MUFFLER,PIPE,RR

49106-1109

$110.72

92002

BOLT,6X8

92002-1604

Unavailable

92009

SCREW

92009-1517

$4.68

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,CAP,8MM

92015-1371

$3.81

92015B

NUT,8MM

92015-1398

$3.66

92022

WASHER,CUP TYPE

92022-1270

$13.85

92037

CLAMP,MUFFLER

92037-1536

$12.06

92037A

CLAMP

92037-1874

$15.27

92037B

CLAMP,EXHAUST PIPE

92037-1970

Unavailable

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$13.15

132

BOLT-FLANGED-SMALL,6X20

132E0620

Unavailable

132A

BOLT-FLANGED-SMALL,8X55

132E0855

$5.66
