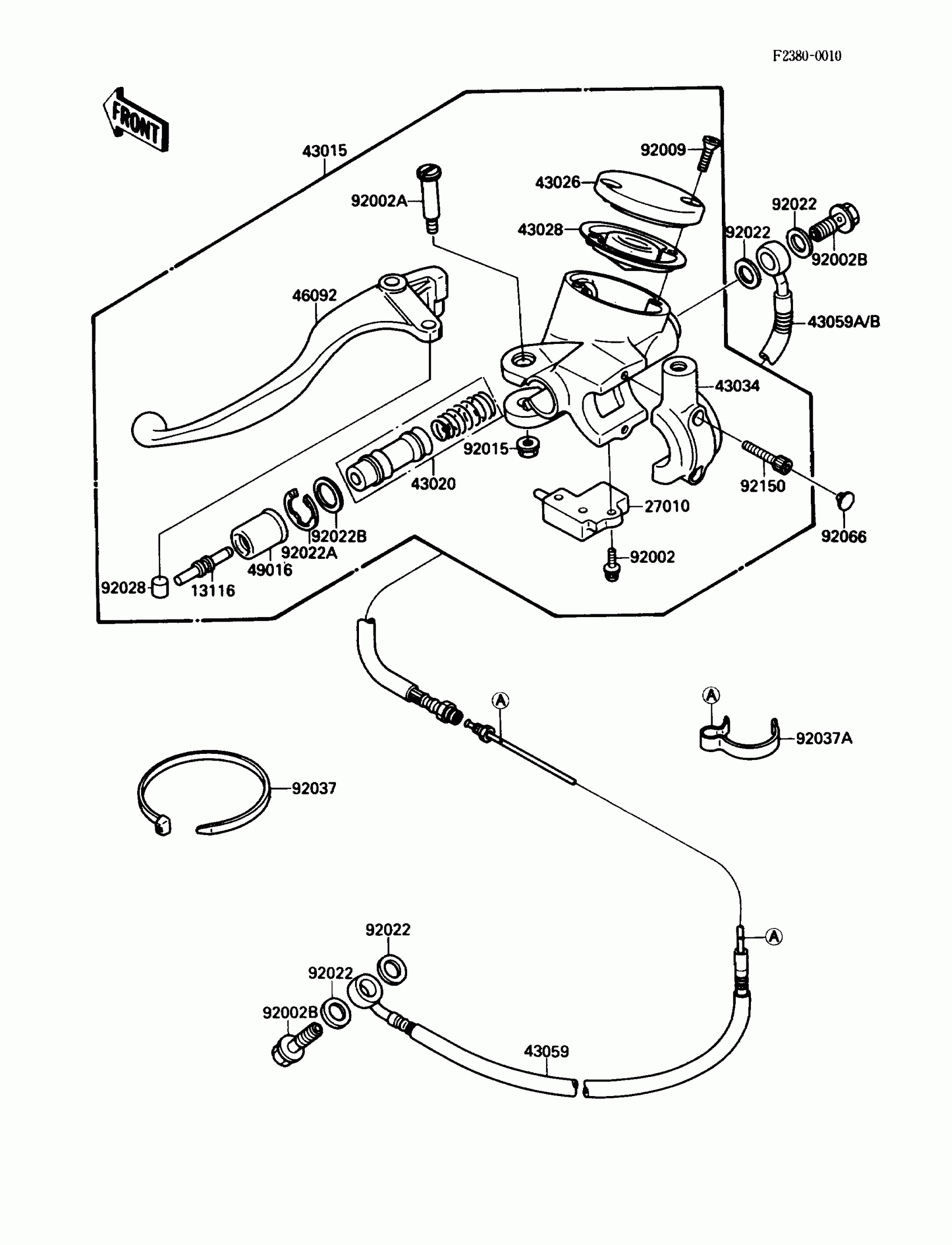

Kawasaki Vulcan 88 SE Clutch Master Cylinder Diagram

Description

Price

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

$33.39

27010

SWITCH,CLUTCH

27010-1171

$32.18

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-1371

$639.28

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$58.51

43026

CAP-BRAKE

43026-1066

$81.02

43028

DIAPHRAGM,MASTER CYLINDER

43028-1071

$19.65

43034

HOLDER-BRAKE

43034-1086

$133.02

43059

HOSE-BRAKE,CLUTCH

43059-1393

$160.74

43059B

HOSE-BRAKE,CLUTCH

43059-1440

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1152

$37.22

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92002

SCREW,4X16

92002-1325

$7.83

92002A

BOLT,LEVER SET

92002-1561

$11.22

92002B

BOLT,OIL,L=23

92002-1975

$14.37

92009

SCREW,5MM

92009-1440

$3.14

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92022A

CIRCLIP

92022-1605

$3.81

92022B

WASHER,PISTON

92022-1606

$3.57

92028

BUSHING,MASTER CYLINDER

92028-1310

$11.20

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP,HOSE

92037-1552

$9.63

92066

PLUG

92066-1301

$4.59

92150

BOLT,SOCKET,6MM

92150-1025

$7.56
