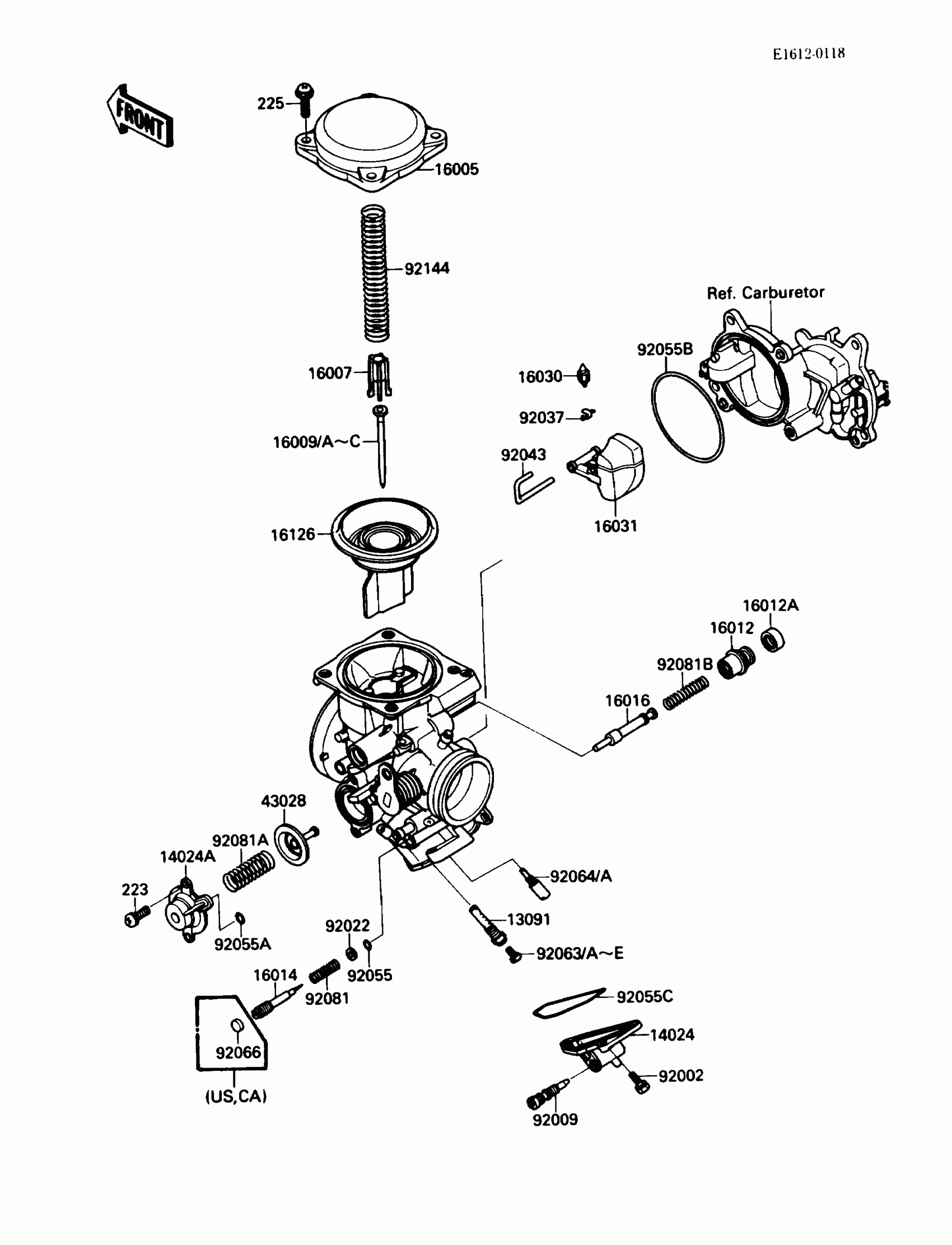

Kawasaki Vulcan 88 SE Carburetor Parts Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1513

Unavailable

14024

COVER,DRAIN

14024-1608

Unavailable

14024A

COVER,AIR CUT VALVE

14025-1903

$58.45

16005

TOP-CHAMBER,MIXING

16005-1054

$45.23

16007

SEAT-SPRING,VALVE

16007-1117

$25.03

16009

NEEDLE-JET,RR,N36Q

16009-1369

Unavailable

16009A

NEEDLE-JET,FR,N36P

16009-1370

Unavailable

16012

CAP-STARTER PLUNGER

16012-1051

$10.88

16012A

CAP-STARTER PLUNGER

16012-1052

$15.04

16014

SCREW-PILOT AIR

16014-1054

$24.57

16016

PLUNGER

16016-1071

$54.49

16030

VALVE-FLOAT

16030-1007

$47.99

16031

FLOAT

16031-1066

Unavailable

16126

VALVE,VACUUM

16126-1203

$263.95

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

92002

BOLT,4X14

92002-1761

Unavailable

92009

SCREW,DRAIN,M6X1.0

92009-1434

$14.92

92022

WASHER,PLAIN

92022-1003

$4.31

92037

CLAMP,FLOAT VALVE

16044-007

$7.91

92043

PIN,FLOAT

92043-1285

$18.39

92055

RING-O,PILOT ADJUST

92055-1002

$4.31

92055A

RING-O

92055-1245

$5.57

92055B

RING-O

92055-1291

$21.74

92055C

RING-O,DRAIN COVER

92055-1400

$24.91

92063

JET-MAIN,#135

92063-1014

$14.10

92063A

JET-MAIN,#138

92063-1015

$14.10

92063B

JET-MAIN,#125

92063-1069

$14.79

92063C

JET-MAIN,#128

92063-1074

$14.10

92063D

JET-MAIN,#130

92063-1075

$14.10

92063E

JET-MAIN,#132

92063-1076

$14.10

92064

JET-PILOT,#42

92064-1135

$21.45

92064A

JET-PILOT,#40

92064-1136

$21.45

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$5.46

92081A

SPRING,AIR CUT VALVE

92081-1719

$12.62

92081B

SPRING,STARTER PLUNGER

92081-1761

$9.36

92144

SPRING,VACUUM VALVE

92144-1219

$20.91

223

SCREW-PAN-WS-CROS,4X8

223D0408

$1.28

225

SCREW-PAN-WSP-CROS,4X18

225C0418

$4.01
