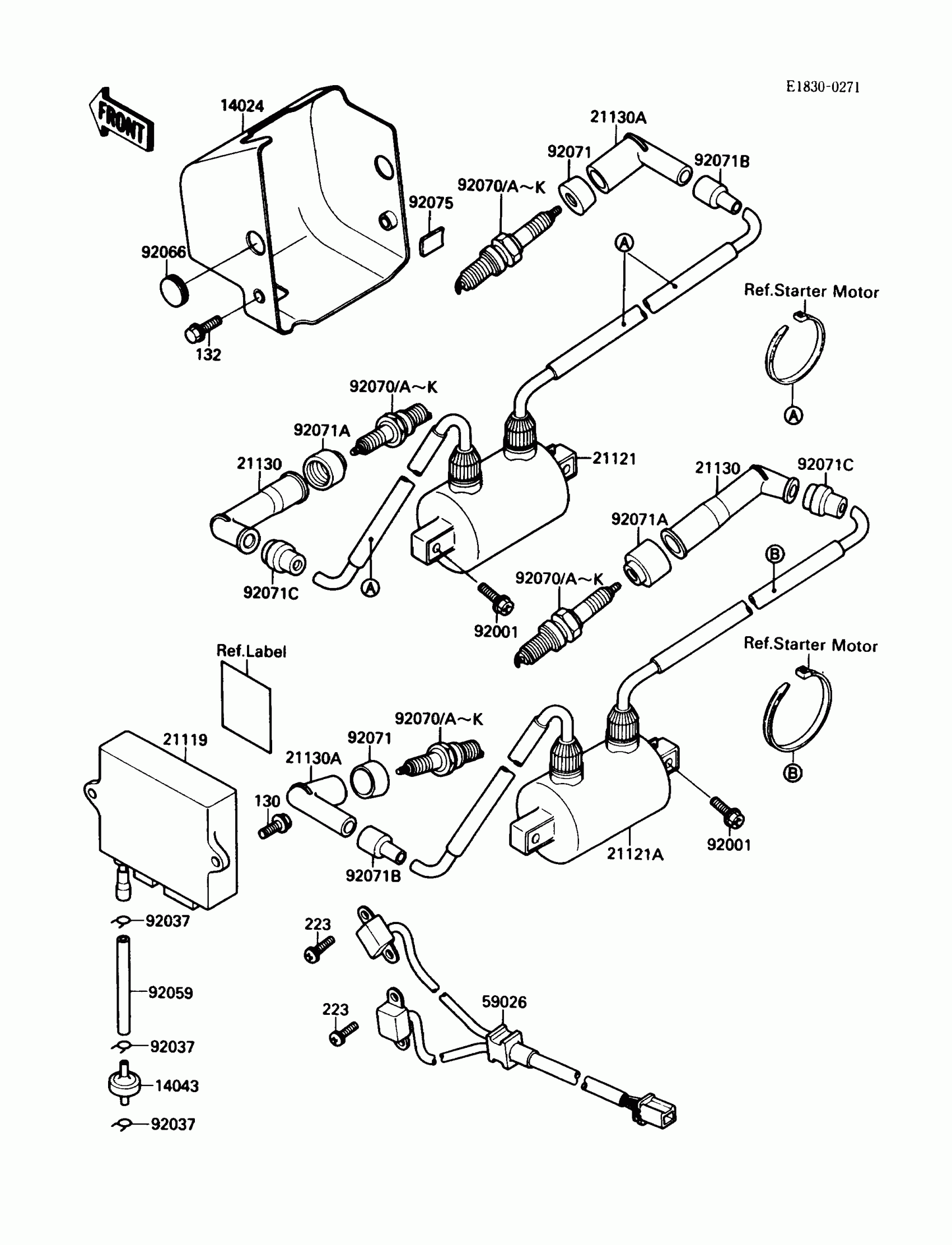

Kawasaki Vulcan 88 Ignition Coil Diagram

#

Description
Price

14024

COVER,IGNITION COIL

14024-1527

Unavailable

14043

FILTER

14043-1060

$46.92

21119

IGNITER

21119-1217

$1,005.41

21121

COIL-IGNITION,FR

21121-1154

$167.14

21121A

COIL-IGNITION,RR

21121-1155

$167.14

21130

CAP-SPARK PLUG

21130-1002

$51.68

21130A

CAP-SPARK PLUG

21130-1003

$29.52

59026

COIL-PULSING

59026-1085

Unavailable

92001

BOLT,6X20

92001-1091

$3.92

92037

CLAMP,TUBE

92037-1482

Unavailable

92059

TUBE,3X7X140

92059-1687

$5.14

92066

PLUG

92066-1286

Unavailable

92070A

PLUG-SPARK,DP8EA-9(NGK)

92070-1066

$3.62

92070C

Not Available As Spare Part - Friction Washer

Unavailable

92070D

Not Available As Spare Part - Friction Washer

Unavailable

92070F

PLUG-SPARK,DP7EA9(NGK)

92070-1124

$3.62

92070H

PLUG-SPARK,DP6EA-9(NGK)

92070-1136

$3.62

92070I

Not Available As Spare Part - Friction Washer

Unavailable

92071

GROMMET,SPARK PLUG CAP

92071-1015

$4.26

92071A

GROMMET,PLUG CAP

92071-1124

$9.43

92071B

GROMMET,HIGH TENSION

92071-1154

$9.99

92071C

GROMMET,HIGH TENSION

92071-1155

$9.76

92075

DAMPER

92075-1982

$4.39

130

BOLT,FLANGED,6X14

130G0614

$1.17

132

BOLT-FLANGED-SMALL,6X16

132J0616

$2.33

223

SCREW-PAN-WS-CROS,5X16

223B0516

$5.19
