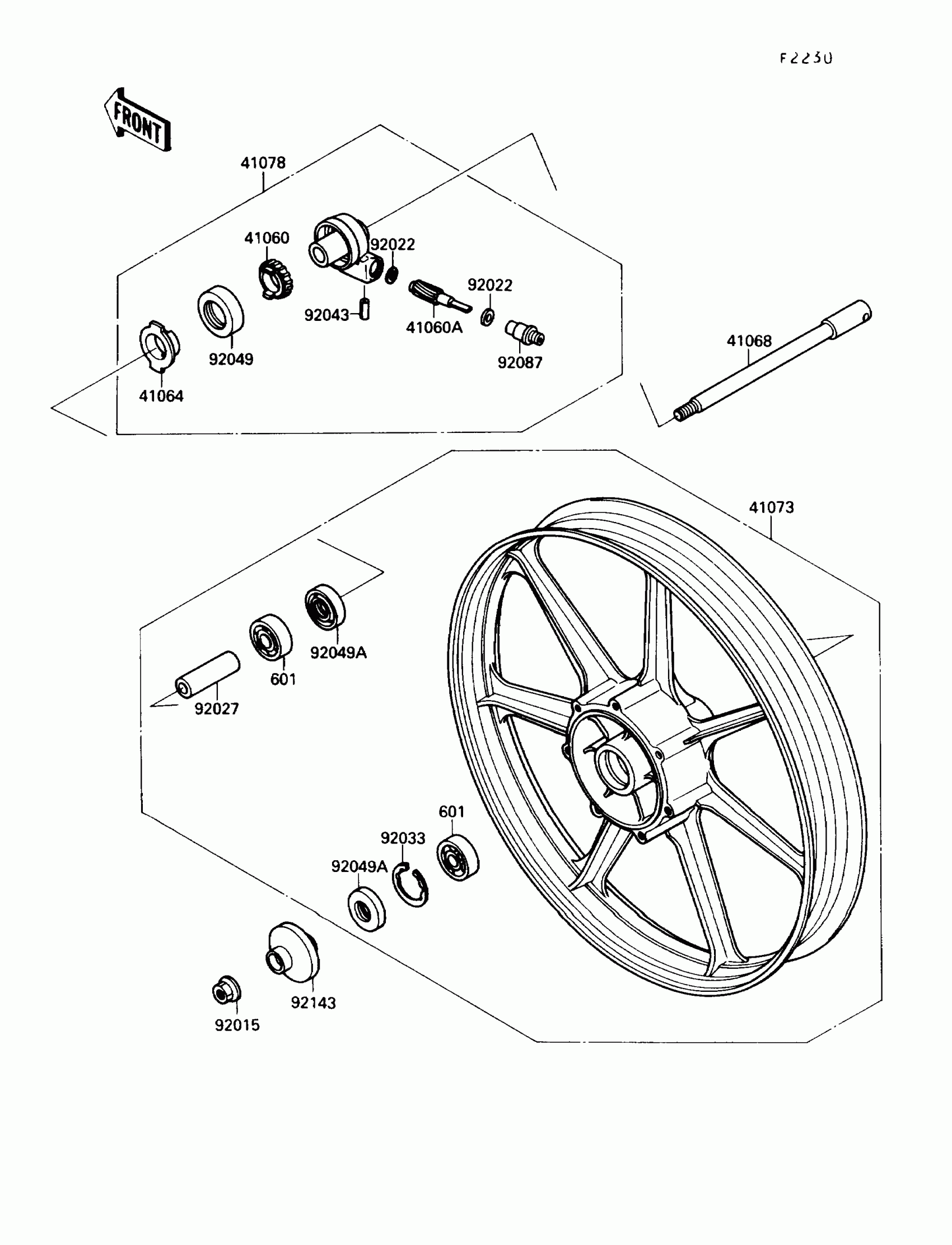

Kawasaki Vulcan 88 Front Hub(&NAMIJA001440) Diagram

Description

Price

41060

GEAR-METER SCREW,26T

41059-026

$42.53

41060A

GEAR-METER SCREW,9T

41060-1006

$38.80

41064

RECEIVER-SPEEDOMETER

41064-1053

Unavailable

41068

AXLE,FR

41068-1189

$72.80

41073

WHEEL-ASSY,FR,BLACK

41073-1363-CB

$1,109.82

41078

CASE-ASSY-METER GEAR

41078-1065

Unavailable

92015

NUT,14MM

92015-1407

$9.91

92022

WASHER,5.1X9X0.4

41063-001

$4.69

92027

COLLAR,L=70

92027-1866

$22.30

92033

RING-SNAP,42MM

92033-1041

$6.16

92043

PIN,SPRING

41082-001

$3.92

92049

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

92049A

SEAL-OIL,BJN22425

92049-1058

$9.73

92087

BUSHING-METER GEAR

92087-1056

$21.77

92143

COLLAR,FRONT AXLE,L=30

92143-1082

Unavailable

601

BEARING-BALL,#6302UG

601B6302UG

$37.90
