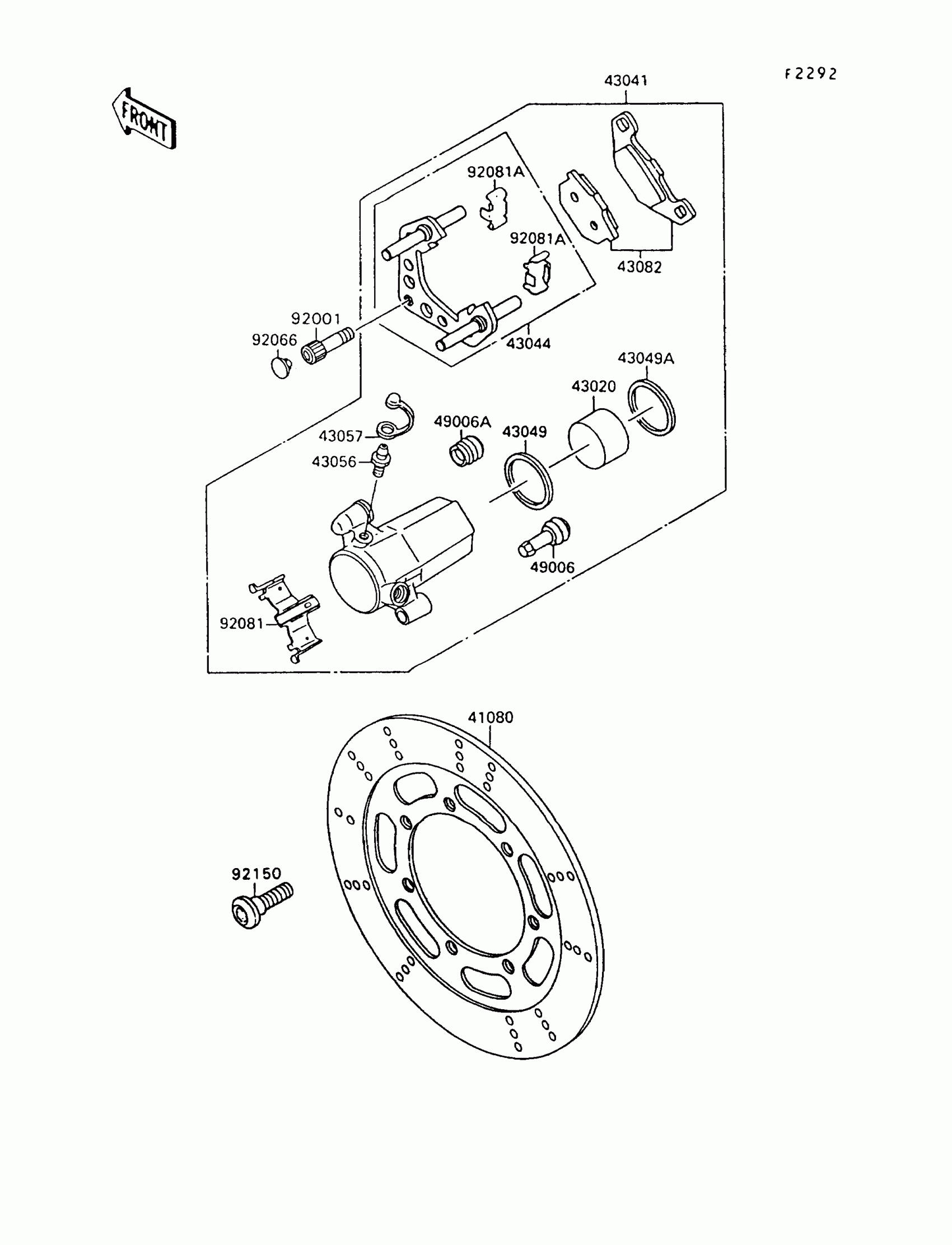

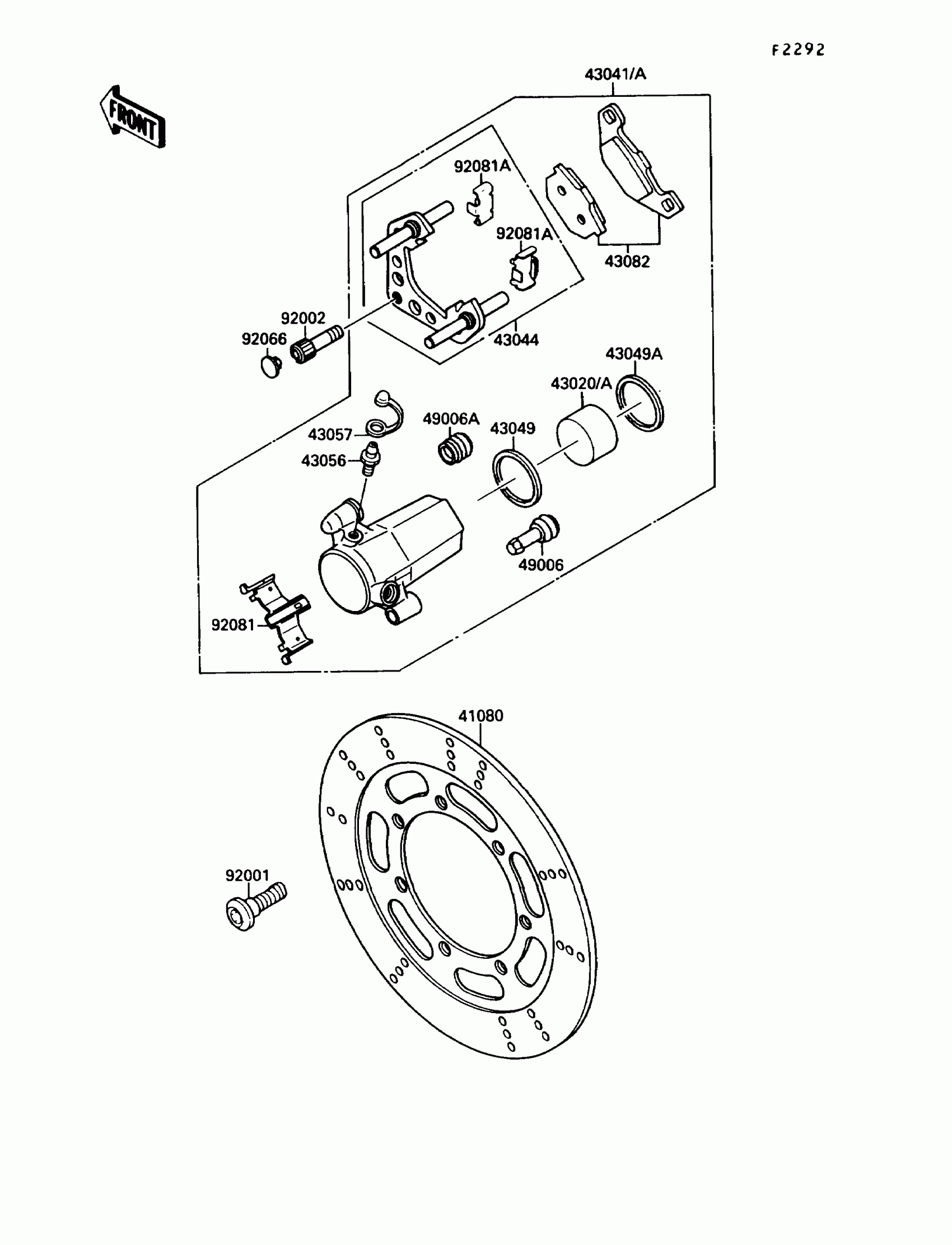

Kawasaki Vulcan 88 Front Brake Diagram

Description

Price

41080

DISC,FR

41080-1186

Unavailable

43020A

PISTON-COMP-BRAKE

43020-1066

$93.03

43041A

CALIPER-ASSY,FR,LH

43041-1262

$652.39

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1078

$104.93

43049

PACKING,PISTON SEAL

43049-002

$10.56

43049A

PACKING,PISTON

43049-1028

$9.61

43056

BREATHER

43056-003

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1029

$60.03

49006

BOOT,CALIPER

49006-1094

$9.30

49006A

BOOT,CALIPER

49006-1095

$5.55

92001

BOLT,DISC PLATE,8X30

92001-1951

$3.57

92002

BOLT,SOCKET,10X33

92001-1901

$10.24

92066

PLUG

92066-1285

$5.93

92081

SPRING,PAD

92081-1525

$14.69

92081A

SPRING,PAD STOPPER

92081-1661

$9.22
