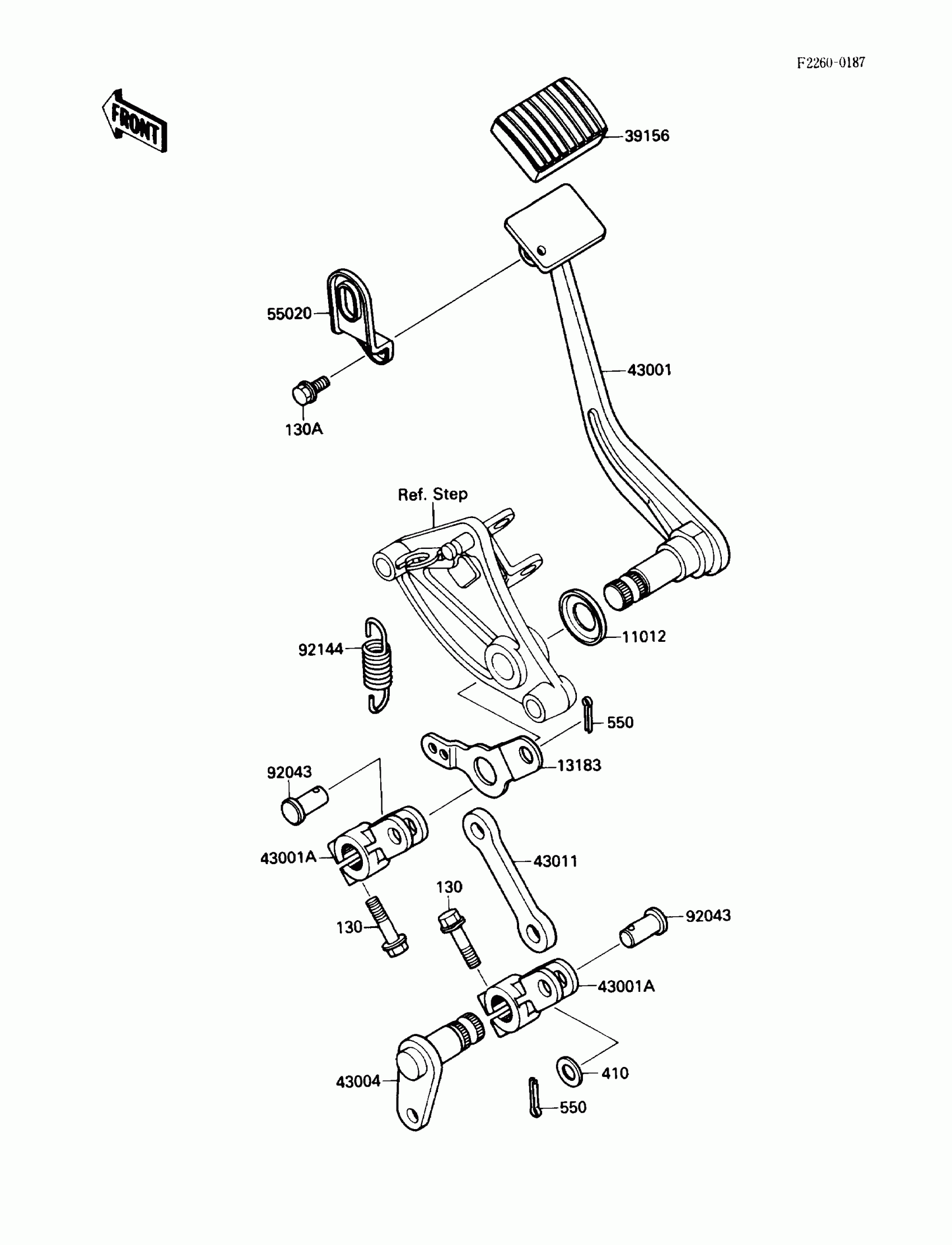

Kawasaki Vulcan 88 Brake Pedal Diagram

#

Description

Price

11012

CAP,BRAKE PEDAL

11012-1582

Unavailable

13183

PLATE,BRAKE PEDAL RETURN

13183-1099

Unavailable

39156

PAD,BRAKE PEDAL

39156-1071

$9.35

43001

LEVER-BRAKE,PEDAL

43001-1222

$129.54

43001A

LEVER-BRAKE,LINK

43001-1223

Unavailable

43004

SHAFT-BRAKE

43004-1121

Unavailable

43011

ROD-BRAKE

43011-1137

Unavailable

55020

GUARD,BRAKE PEDAL

55020-1268

Unavailable

92043

PIN,10X20.5

92043-1352

$7.80

92144

SPRING,BRAKE PEDAL RETURN

92144-1169

$9.14

130

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

130A

BOLT-FLANGED,6X8

130N0608

Unavailable

410

WASHER-PLAIN-SMALL,10MM,BLACK

410F1000

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable
