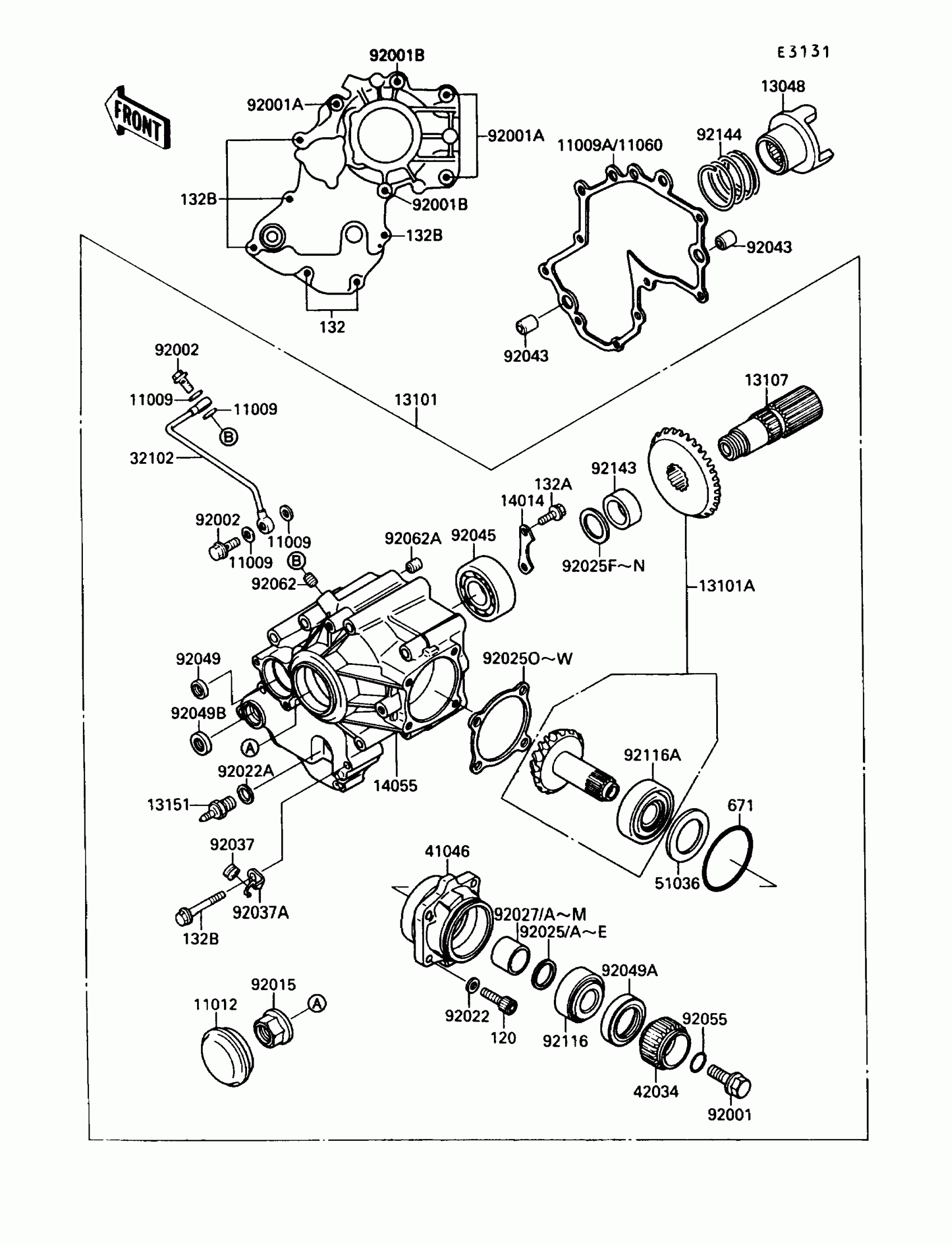

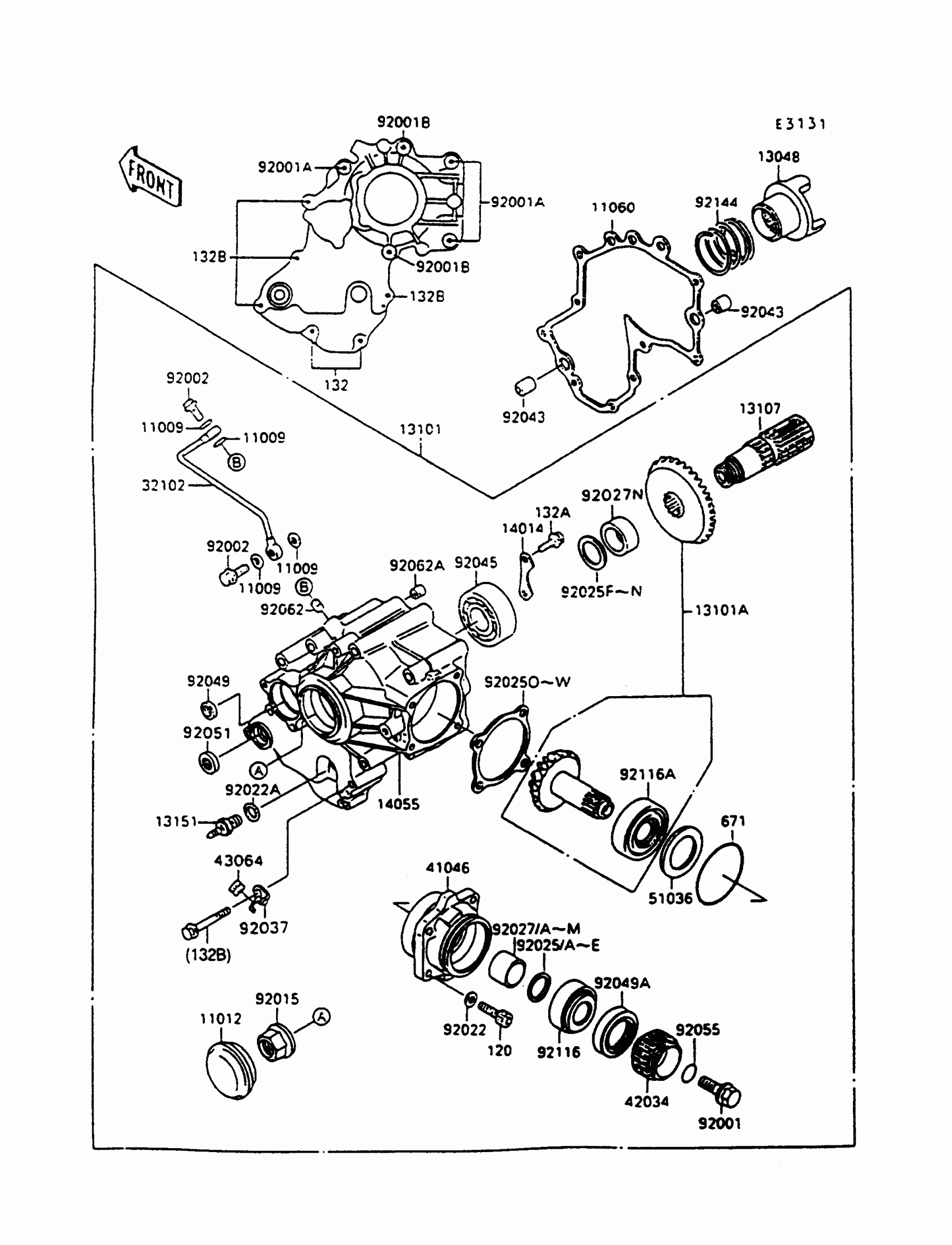

Kawasaki Vulcan 88 Front Bevel Gear Diagram

#

Description
Price

11009

GASKET,8.2X14X1.0

11009-1344

$3.17

11012

CAP

11012-1071

$33.37

11060

GASKET,GEAR CASE

11060-1120

$30.59

13048

CAM-DAMPER

13048-1074

$112.83

13101

GEAR-ASSY,BEVEL,FR

13101-1118

Unavailable

13101A

GEAR-ASSY,BEVEL,FR

13101-5065

Unavailable

13107

SHAFT,BEVEL,FR

13107-1263

$151.24

13151

SWITCH-COMP,NEUTRAL

13151-1010

$27.10

14014

PLATE-POSITION

14014-1084

$6.47

14055

CASE-GEAR

14055-1074

Unavailable

32102

PIPE

32102-1411

$46.14

41046

HOUSING-BEARING

41046-1085

Unavailable

42034

COUPLING,FR DRIVEN

42034-1091

$127.52

51036

CUP

51036-1002

$6.22

92001

BOLT,FLANGED,12X42

92001-1169

$22.29

92001A

BOLT,8X90

92001-1480

Unavailable

92001B

BOLT,FLANGED,8X110

92001-1597

Unavailable

92002

BOLT,8X20

92002-1429

$11.07

92015

NUT,24MM

92015-1554

$24.41

92022

WASHER,8.5X13X1

92022-1028

$3.92

92022A

WASHER,12X18X1.0

92022-1211

$3.92

92025

SHIM,25.2X29.8X1.70

92025-1072

Unavailable

92025A

SHIM,25.2X29.8X1.72

92025-1073

Unavailable

92025B

SHIM,25.2X29.8X1.74

92025-1074

Unavailable

92025C

SHIM,25.2X29.8X1.76

92025-1075

Unavailable

92025D

SHIM,25.2X29.8X1.78

92025-1076

Unavailable

92025E

SHIM,25.2X29.8X1.80

92025-1077

Unavailable

92025F

SHIM,25.3X36X0.15

92025-1688

Unavailable

92025G

SHIM,25.3X36X0.50

92025-1689

Unavailable

92025H

SHIM,25.3X36X0.60

92025-1690

Unavailable

92025I

SHIM,25.3X36X0.70

92025-1691

Unavailable

92025J

SHIM,25.3X36X0.80

92025-1692

Unavailable

92025K

SHIM,25.3X36X0.90

92025-1693

Unavailable

92025L

SHIM,25.3X36X1.00

92025-1694

Unavailable

92025M

SHIM,25.3X36X1.10

92025-1695

Unavailable

92025N

SHIM,25.3X36X1.20

92025-1696

Unavailable

92025O

SHIM,T=0.15

92025-1818

Unavailable

92025P

SHIM,T=0.50

92025-1819

Unavailable

92025Q

SHIM,T=0.60

92025-1820

Unavailable

92025R

SHIM,T=0.70

92025-1821

Unavailable

92025S

SHIM,T=0.80

92025-1822

Unavailable

92025T

SHIM,T=0.90

92025-1823

Unavailable

92025U

SHIM,T=1.00

92025-1824

Unavailable

92025V

SHIM,T=1.20

92025-1825

Unavailable

92025W

SHIM,T=0.10

92025-1826

Unavailable

92027

COLLAR,25.2X29.8X22.8

92027-1152

Unavailable

92027A

COLLAR,25.2X29.8X22.9

92027-1153

Unavailable

92027B

COLLAR,25.2X29.8X23

92027-1154

Unavailable

92027C

COLLAR,25.2X29.8X23.1

92027-1155

Unavailable

92027D

COLLAR,25.2X29.8X23.2

92027-1156

Unavailable

92027E

COLLAR,25.2X29.8X23.3

92027-1157

Unavailable

92027F

COLLAR,25.2X29.8X23.4

92027-1158

Unavailable

92027G

COLLAR,25.2X29.8X23.5

92027-1159

Unavailable

92027H

COLLAR,25.2X29.8X23.6

92027-1160

Unavailable

92027I

COLLAR,25.2X29.8X23.7

92027-1161

Unavailable

92027J

COLLAR,25.2X29.8X23.8

92027-1162

Unavailable

92027K

COLLAR,25.2X29.8X23.9

92027-1163

Unavailable

92027L

COLLAR,25.2X29.8X24

92027-1164

Unavailable

92027M

COLLAR,25.2X29.8X24.1

92027-1165

Unavailable

92037

GROMMET,HOSE CLAMP

43064-006

$4.31

92037A

CLAMP

92037-1873

Unavailable

92043

PIN,11.5X14X14

92043-1279

$5.00

92045

BEARING-BALL,6305C2

92045-1165

$43.79

92049

SEAL-OIL,SD-8187

92049-1017

$9.89

92049A

SEAL-OIL,TC35527

92049-1038

$17.95

92049B

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,ID=18.64

92055-1044

$4.78

92062

NOZZLE,6X8

92062-1066

$4.69

92062A

NOZZLE,10X10

92062-1067

$3.71

92116

BEARING-ROLLER,HI-CAP30205

92116-1062

$36.32

92116A

BEARING-ROLLER,HI-CAP30305

92116-1063

$47.99

92143

COLLAR,25.3X36X10

92027-1968

$24.11

92144

SPRING,CAM DAMPER

92144-1193

$49.61

120

BOLT-SOCKET,8X30

120P0830

$2.62

132

BOLT-FLANGED-SMALL,6X30

132E0630

$6.22

132A

BOLT-FLANGED-SMALL,6X16

132G0616

$1.47

132B

BOLT-FLANGED-SMALL,6X55

132G0655

$2.62

671

O RING,65MM

671B2565

$8.86
