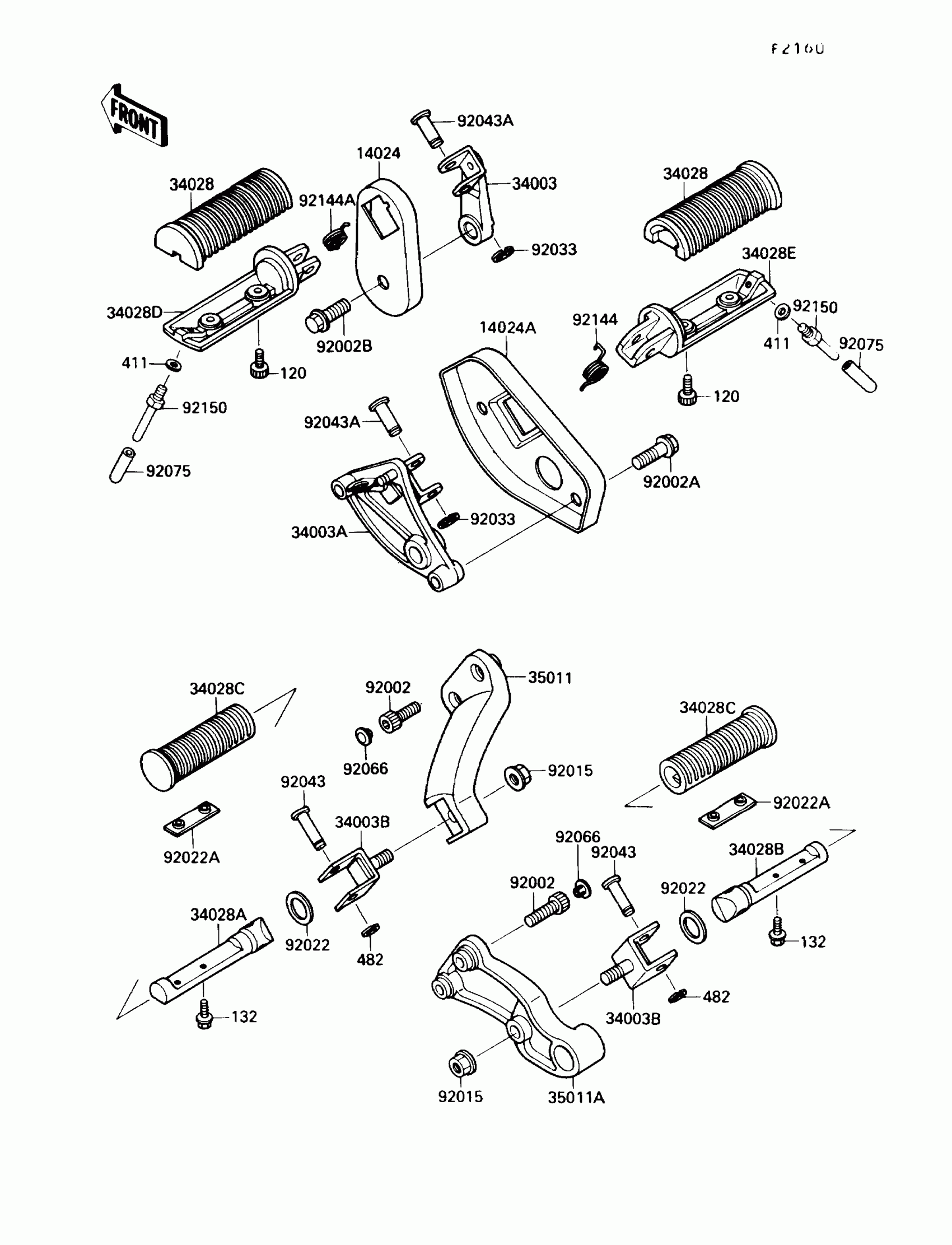

Kawasaki Vulcan 88 Footrest Diagram
#
Description
Price
14024
COVER,FRONT STEP,LH
14024-1435
Unavailable
14024A
COVER,FRONT STEP,RH
14024-1436
Unavailable
34003
HOLDER-STEP,FR,LH
34003-1290
$85.12
34003A
HOLDER-STEP,FR,RH
34003-1291
Unavailable
34003B
HOLDER-STEP,RR
34003-1292
$35.45
34028
STEP,FR,RUBBER
34028-1217
$24.65
34028A
STEP,RR,LH
34028-1219
$48.65
34028B
STEP,RR,RH
34028-1220
$48.65
34028C
STEP,RR,RUBBER
34028-1221
$12.43
34028D
STEP,FR,LH
34028-1245
$48.54
34028E
STEP,FR,RH
34028-1246
$53.30
35011
STAY,REAR STEP,LH
35011-1346
Unavailable
35011A
STAY,REAR STEP,RH
35011-1347
Unavailable
92002
BOLT,SOCKET,8X25
92002-1442
$5.05
92002A
BOLT,FLANGED,10X35
92002-1829
$7.90
92002B
BOLT,FLANGED,12X30
92002-1925
$9.67
92015
NUT,FLANGED,10MM
92015-1428
$5.00
92022
WASHER,20X30X2.3
92022-1568
$4.31
92022A
WASHER,STEP
92022-1874
$6.15
92033
RING-SNAP,10MM
92033-1166
$3.89
92043
PIN,8X36.5
92043-1339
$7.84
92043A
PIN,12X37
92043-1358
$8.10
92066
PLUG
92066-1277
$6.51
92075
DAMPER
92075-1980
$5.33
92144
SPRING,STEP RETURN
92144-1126
$6.16
92144A
SPRING,STEP RETURN
92144-1210
$6.89
92150
BOLT,BANK SENSOR
92150-1047
$15.94
120
BOLT-SOCKET,5X12
120S0512
$1.71
132
BOLT-FLANGED-SMALL,5X10
132J0510
$3.19
411
WASHER PLAIN
411F0600
$1.18
482
CIRCLIP-TYPE-E
482L7000
$3.92
